Initial Inspection and Diagnostic Overview
Initial Inspection and Diagnostic Overview
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work Flow

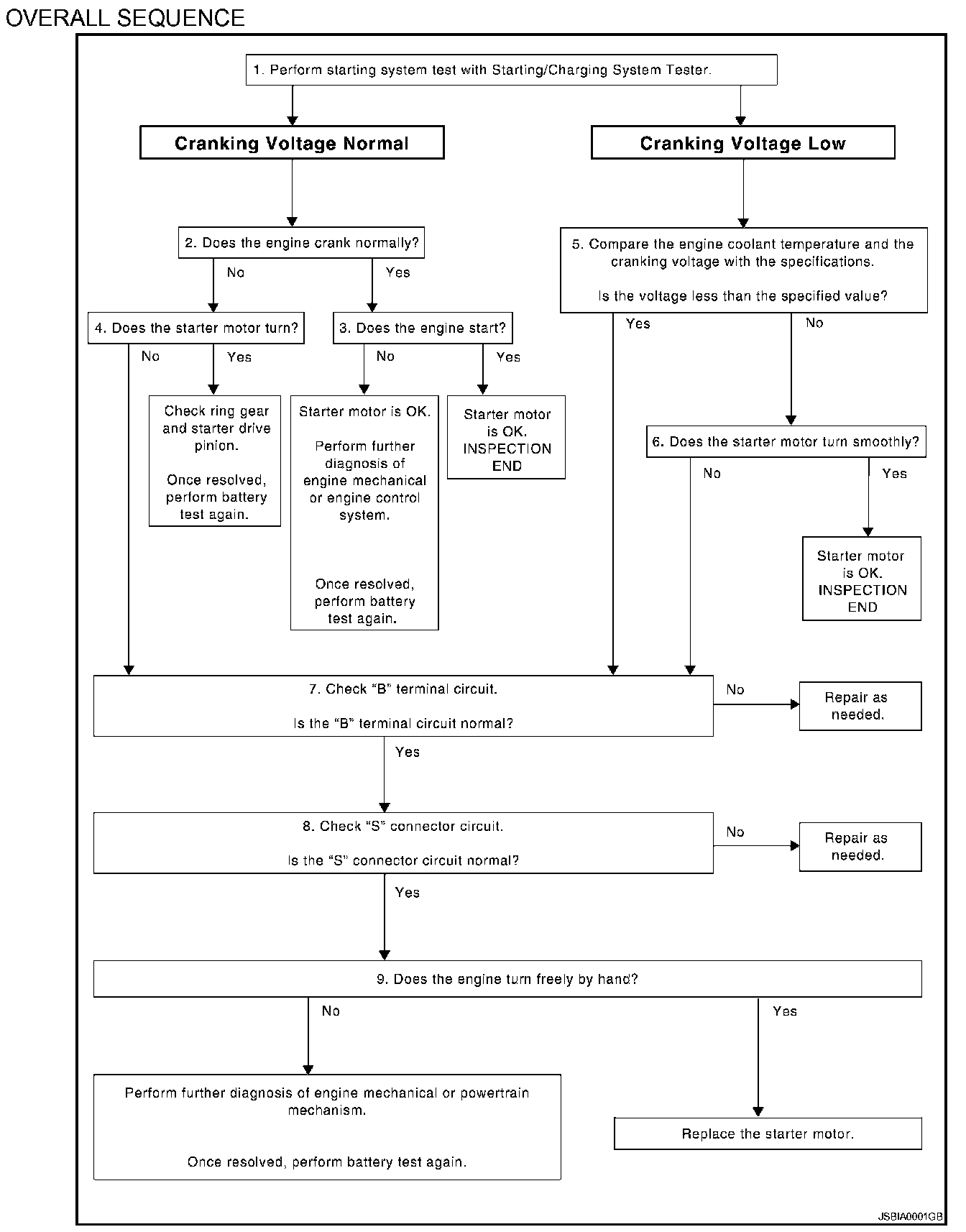

OVERALL SEQUENCE
Step 1-7:

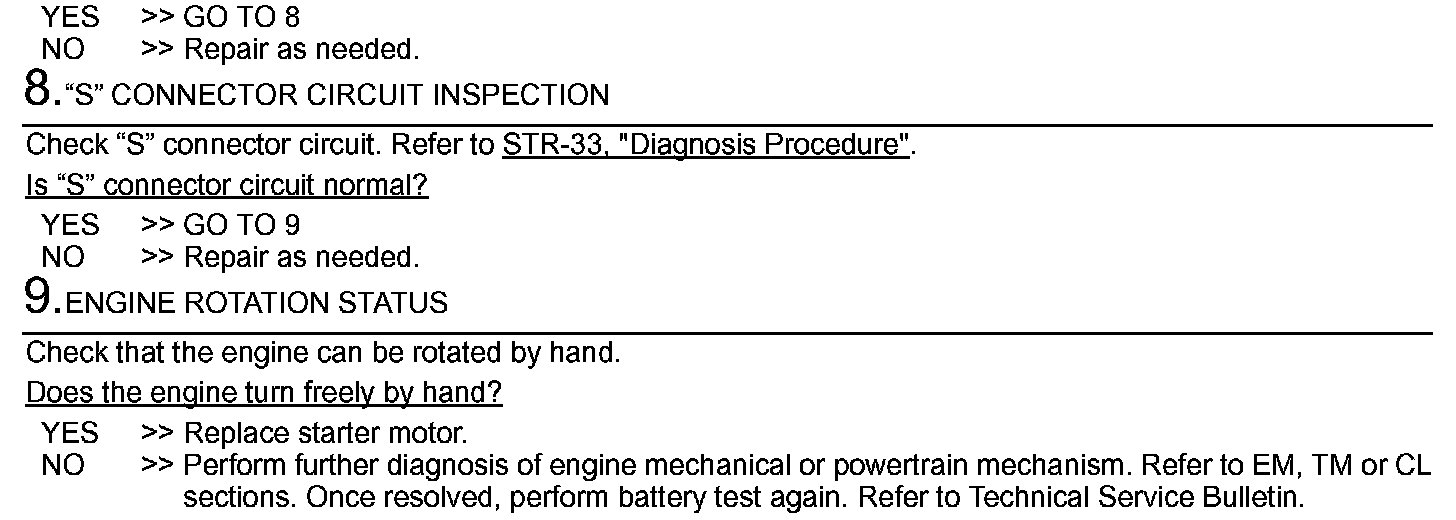

Step 7 (Continued)-9:

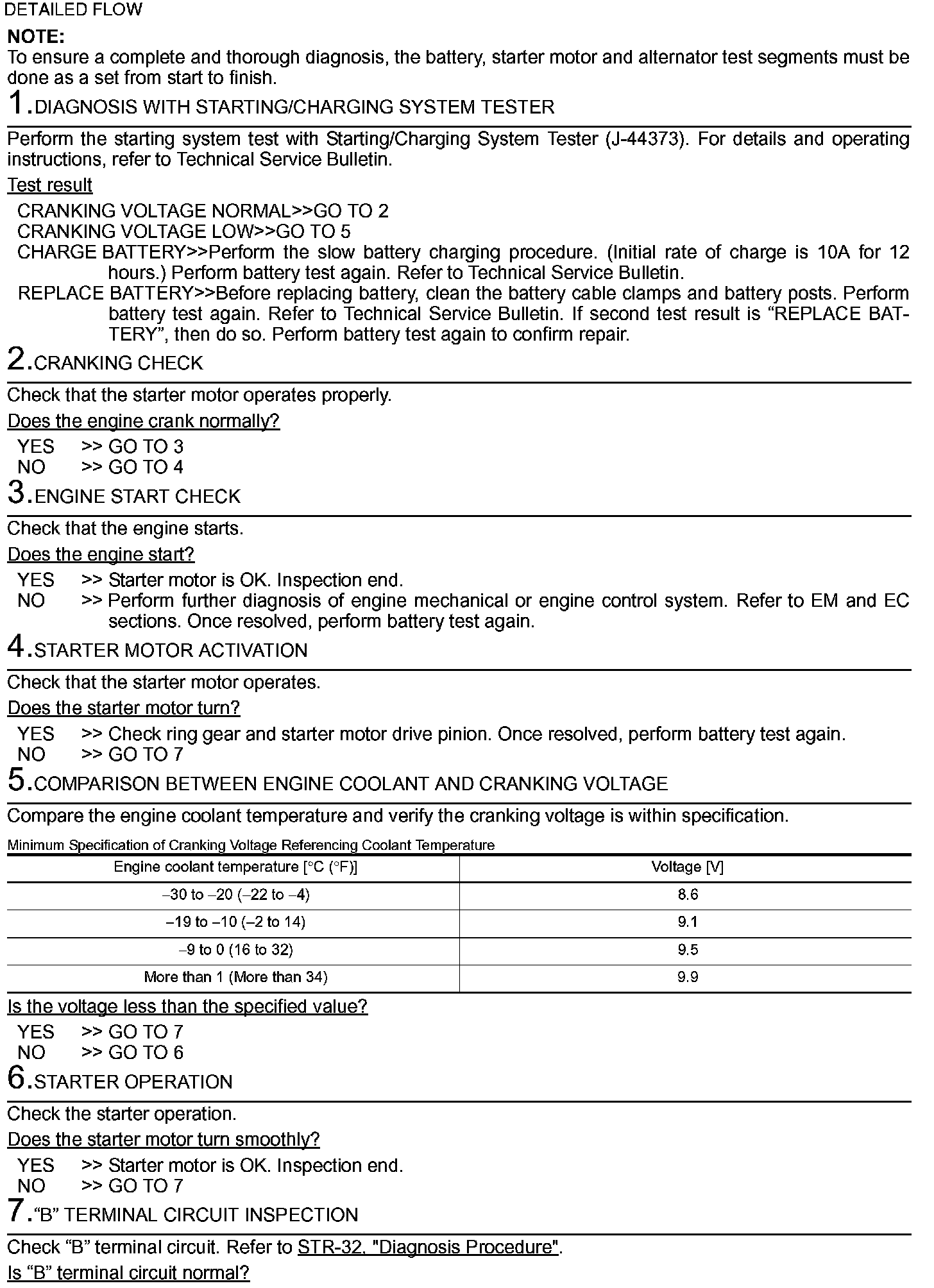

DETAILED FLOW
