P1217

P1217 ENGINE OVER TEMPERATURE

On Board Diagnosis Logic

NOTE:
- If DTC P1217 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000, U1001. Refer to EC-535, "On Board Diagnosis Logic". U1000
- If DTC P1217 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to EC-536, "On Board Diagnosis Logic". U1010

If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is indicated.
This self-diagnosis has the one trip detection logic.






CAUTION: When a malfunction is indicated, be sure to replace the coolant. Also, replace the engine oil.

1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to use coolant with the proper mixture ratio.
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.

Overall Function Check
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be confirmed.

WARNING: Never remove the radiator cap and/or reservoir tank cap when the engine is hot. Serious burns could be caused by high pressure fluid escaping from the radiator and/or reservoir tank.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up pressure to escape. Then turn the cap all the way off.

WITH CONSULT-III

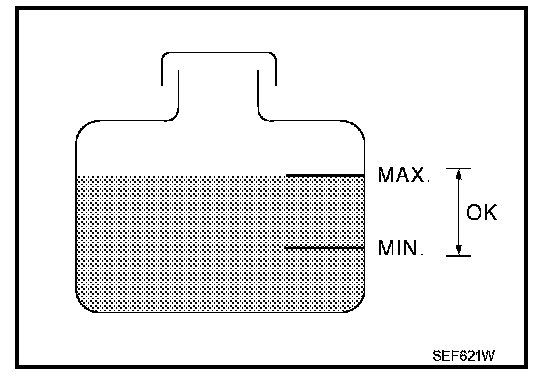

1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below the proper range, skip the following steps and go to "Diagnostic Procedure" below.

2. Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to "Diagnostic Procedure" below.
3. Turn ignition switch ON.
4. Perform "COOLING FAN" in "ACTIVE TEST" mode with CONSULT-III.
5. If the results are NG, go to "Diagnostic Procedure" below.

WITH GST

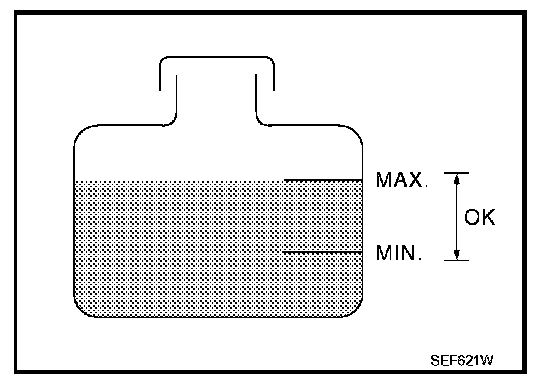

1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below the proper range, skip the following steps and go to "Diagnostic Procedure" below.

2. Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to "Diagnostic Procedure" below.
3. Perform IPDM E/R auto active test and check cooling fan motor operation, refer to PCS-13, "Diagnosis Description". Diagnosis System
4. If NG, go to "Diagnostic Procedure" below.

Diagnostic Procedure

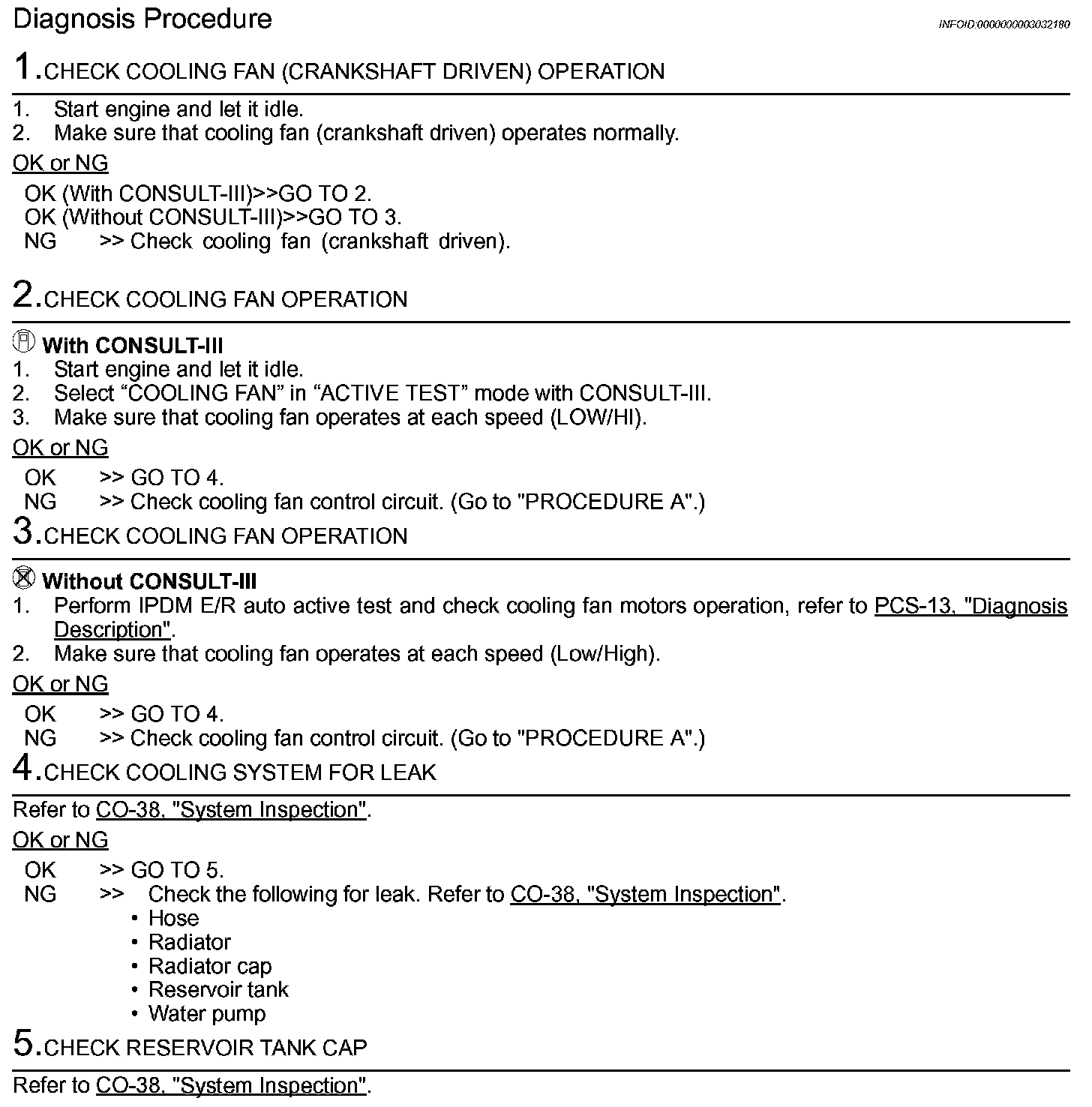

Step 1-5:

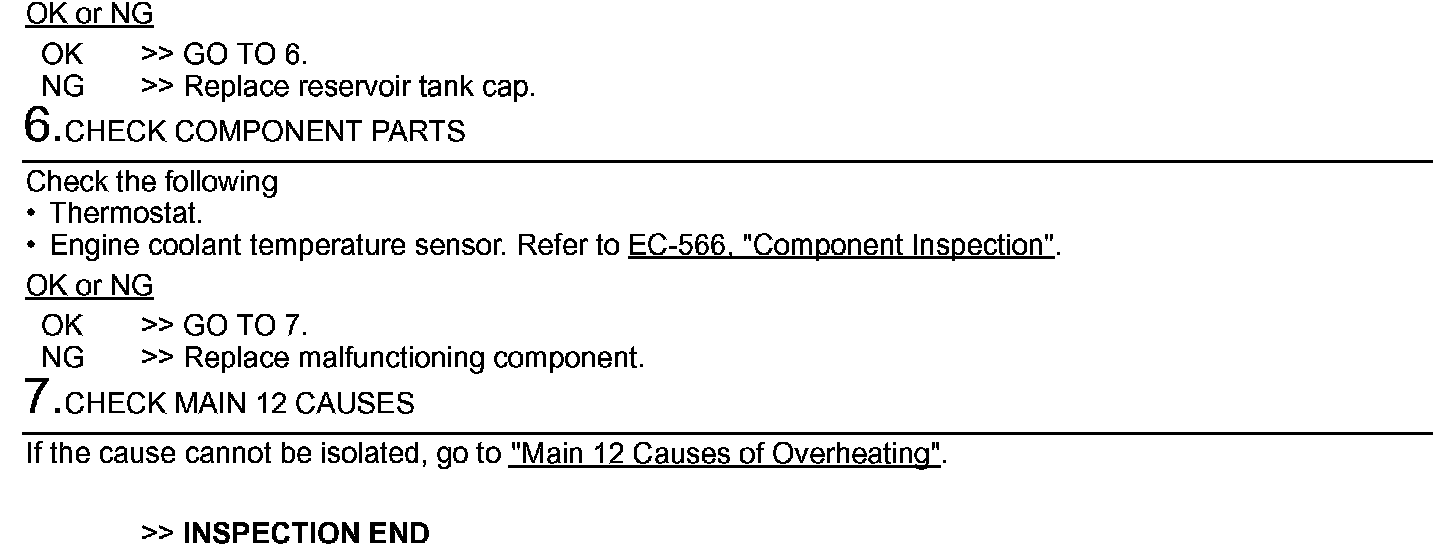

Step 5 (Continued)-7:

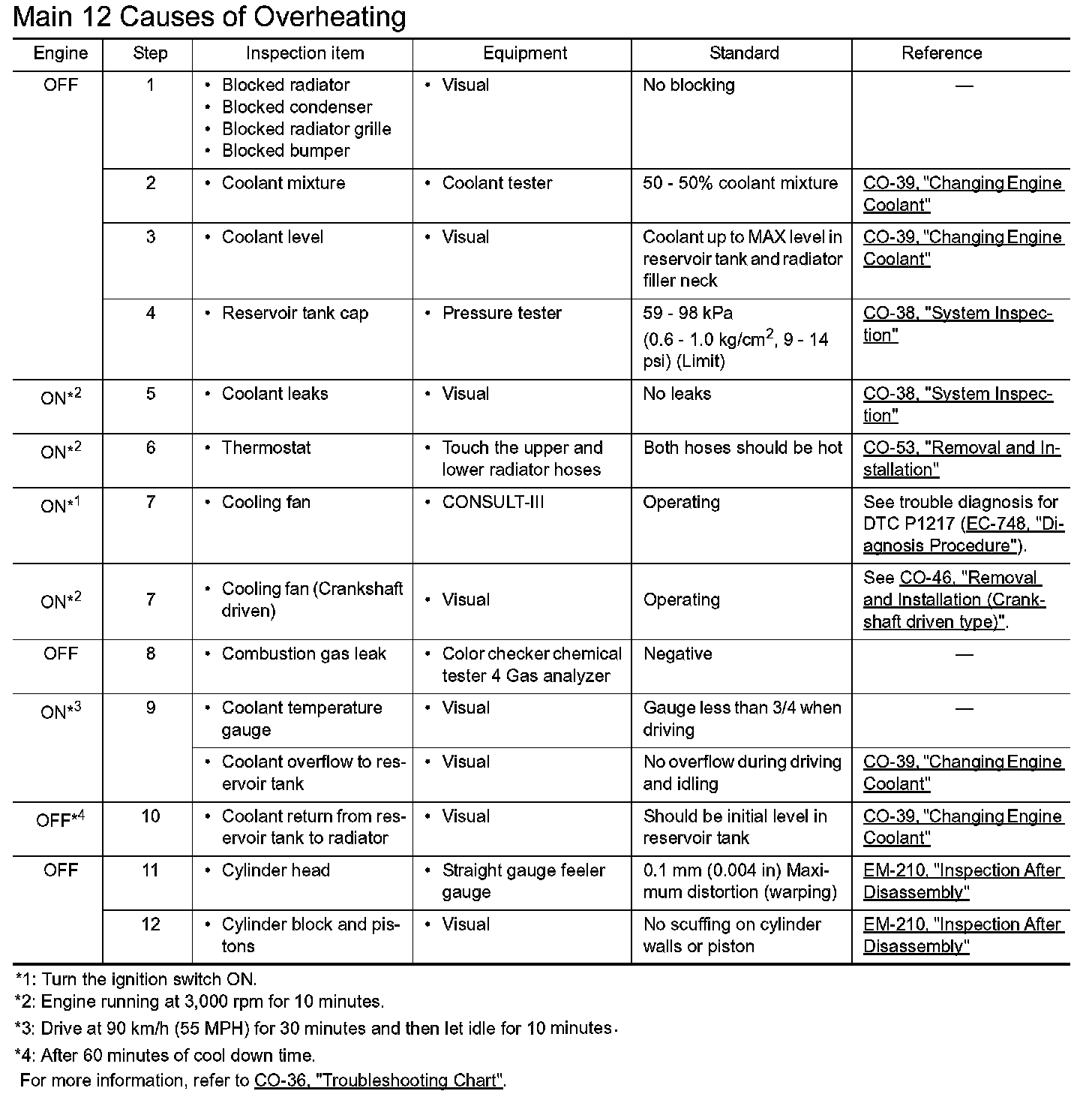

Main 12 Causes of Overheating

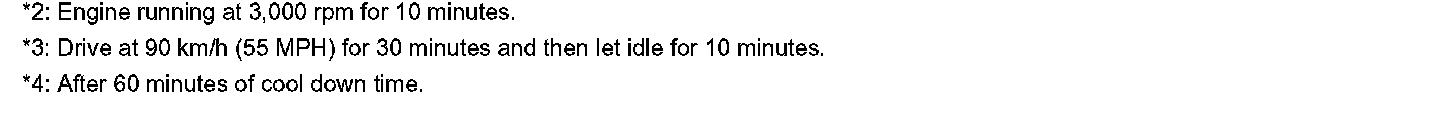

Main 12 Causes Of Overheating:
