Wiring Diagram - Vehicle Security System (Crew Cab)
BCM (BODY CONTROL MODULE)

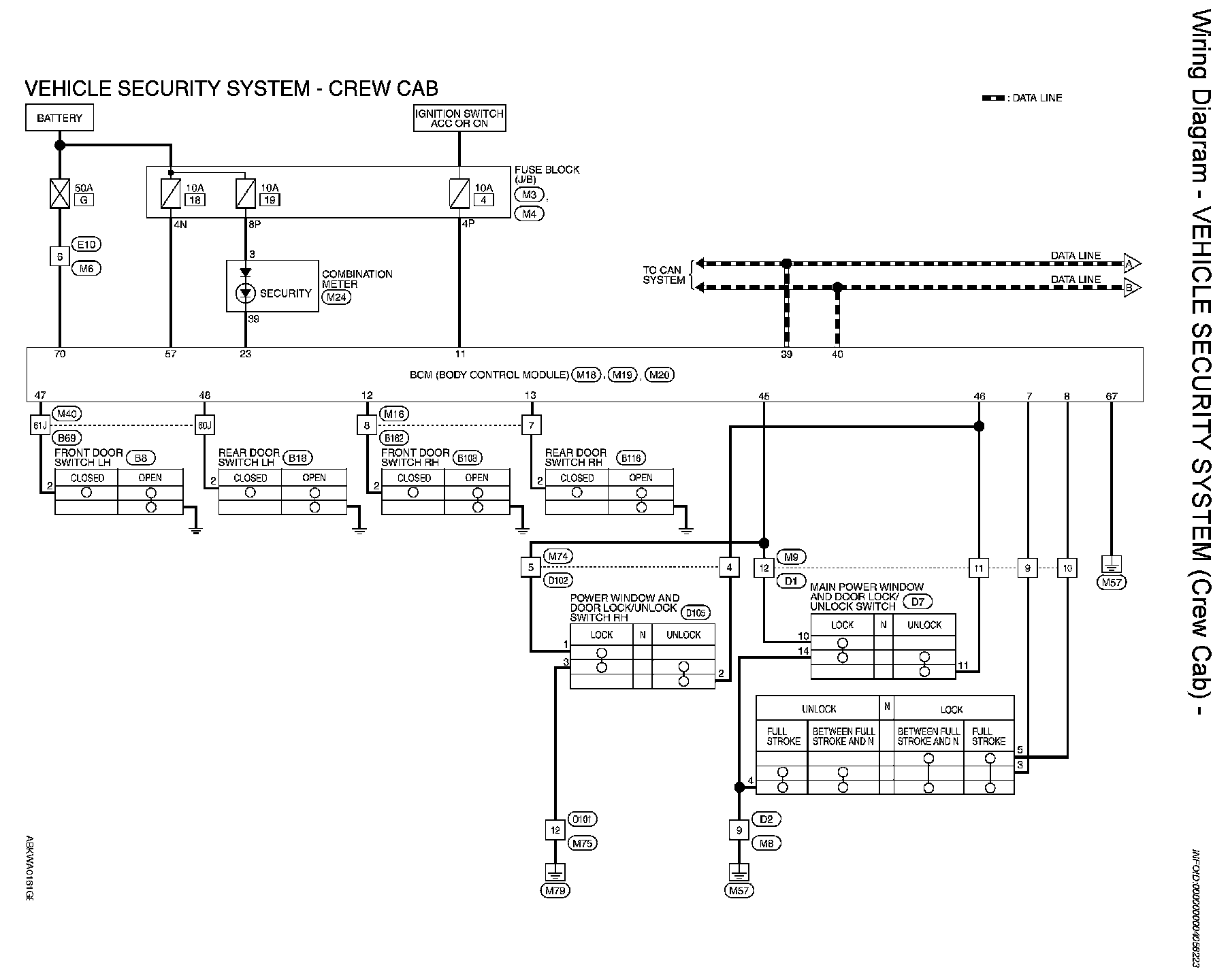

Wiring Diagram - VEHICLE SECURITY SYSTEM (Crew Cab) -
Vehicle Security System - Crew Cab - Part 1:
Vehicle Security System - Crew Cab - Part 2:
Vehicle Security System - Crew Cab - Part 3:
Vehicle Security System - Crew Cab - Part 4:
Vehicle Security System - Crew Cab - Part 5:
Vehicle Security System - Crew Cab - Part 5:
Vehicle Security System - Crew Cab - Part 7:
Vehicle Security System - Crew Cab - Part 8:
