Component Function Check

DOOR SWITCH


KING CAB : Component Function Check

1.CHECK FUNCTION
With CONSULT-III

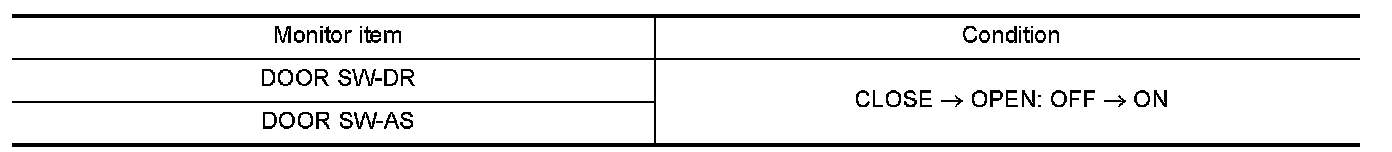

Check door switches in data monitor mode with CONSULT-III.





Is the inspection result normal?
YES - Door switch is OK.
NO - Refer to Diagnosis Procedure.
