Diagnosis Procedure

DOOR SWITCH


KING CAB : Description

Detects door open/close condition.




DOOR SWITCH


KING CAB : Diagnosis Procedure

1.CHECK DOOR SWITCHES INPUT SIGNAL
With CONSULT-III

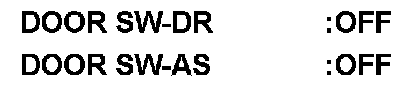

Check door switches ("DOOR SW-DR", "DOOR SW-AS") in DATA MONITOR mode with CONSULT�III. Refer to Door Lock.
- When any doors are open:





- When any doors are closed:





Without CONSULT-III

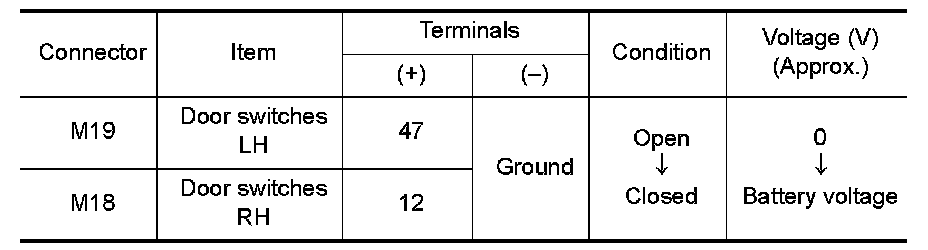

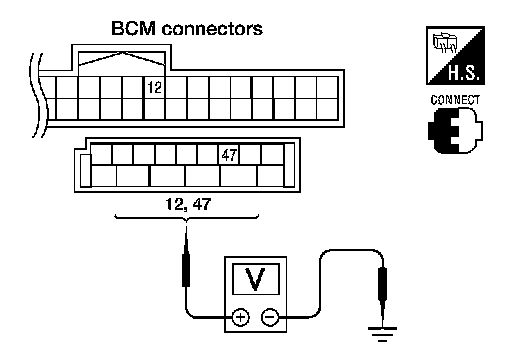

Check voltage between BCM connector M18 or M19 terminals 12, 47 and ground.










Is the inspection result normal?
YES - Door switch circuit is OK.
NO - GO TO 2
2.CHECK BCM OUTPUT VOLTAGE
1. Turn ignition switch OFF.
2. Disconnect door switches.





3. Check voltage between BCM connector M18, M19 terminals 12, 47 and ground.





Is the inspection result normal?
YES - GO TO 3
NO - Replace BCM. Refer to Service and Repair.
3.CHECK DOOR SWITCH CIRCUIT
1. Disconnect BCM.

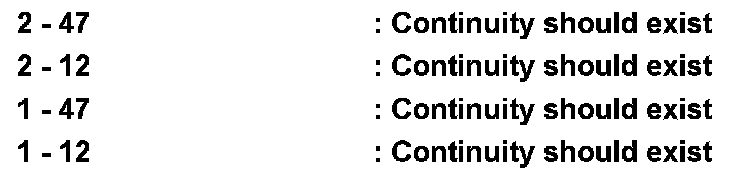

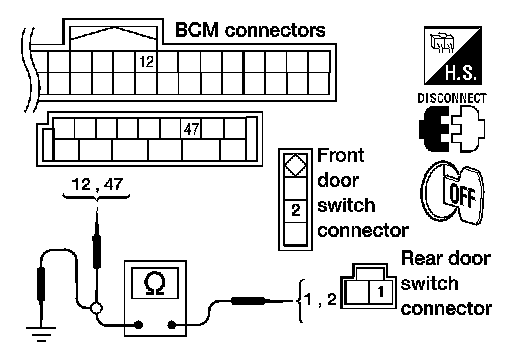

2. Check continuity between door switch connector D213 (Front LH), D314 (Front RH) terminal 2, D211 (Rear upper LH), D312 (Rear upper RH), D212 (Rear lower LH), D313 (Rear lower RH) terminal 1 and BCM connector M18, M19 terminals 12, and 47.










3. Check continuity between door switch connector D213 (Front
LH), D314 (Front RH) terminal 2, D211 (Rear upper LH), D312
(Rear upper RH), D212 (Rear lower LH), D313 (Rear lower RH) terminal 1 and ground.





Is the inspection result normal?
YES - GO TO 4
NO - Repair or replace harness.
4.CHECK DOOR SWITCHES GROUND CIRCUIT

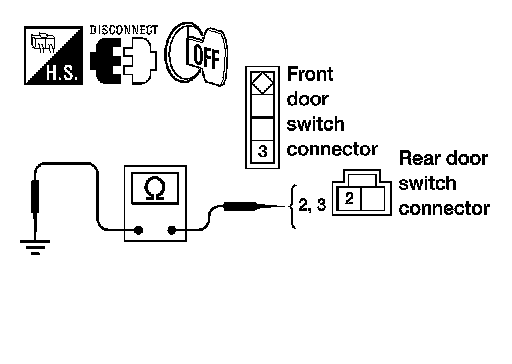

Check continuity between door switch connector D213 (Front LH), D314 (Front RH) terminal 3, D211 (Rear upper LH), D312 (Rear upper RH), D212 (Rear lower LH), D313 (Rear lower RH) terminal 2 and ground.











Is the inspection result normal?
YES - GO TO 5
NO - Repair or replace harness.
5.CHECK DOOR SWITCHES

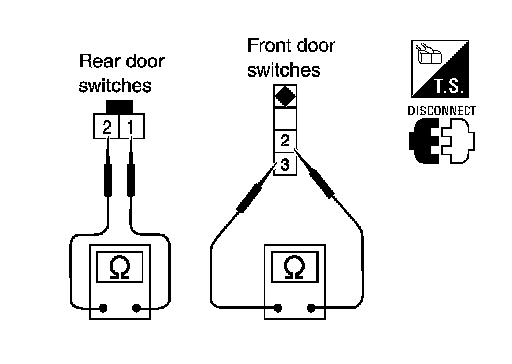

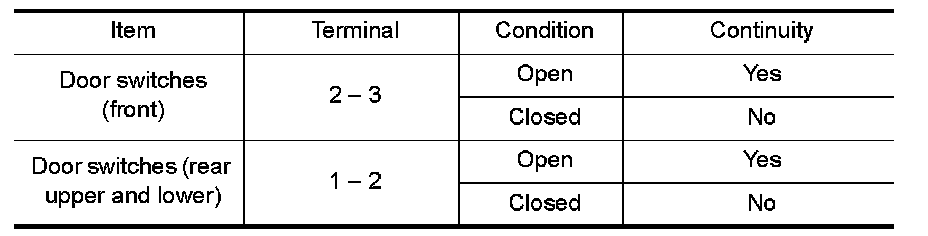

Check continuity between door switch terminals.











Is the inspection result normal?
YES - Check condition of harness and connector.
NO - Replace door switch.
