Home
>>
Nissan-Datsun
>>
2009
>>
Frontier 4WD V6-4.0L (VQ40DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Sunroof / Moonroof
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Reference Value
Reference Value
BCM
(BODY CONTROL MODULE)
Reference Value

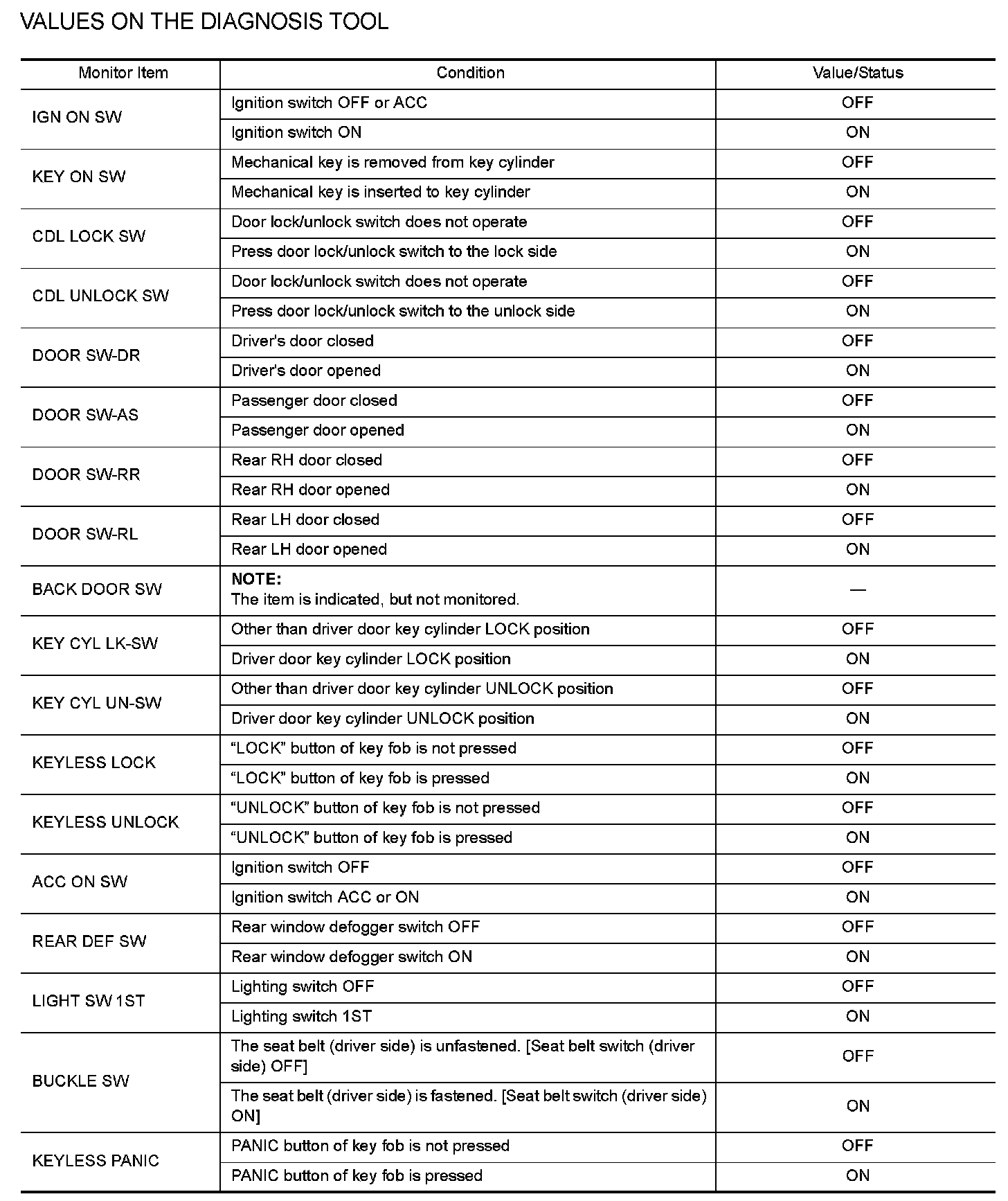

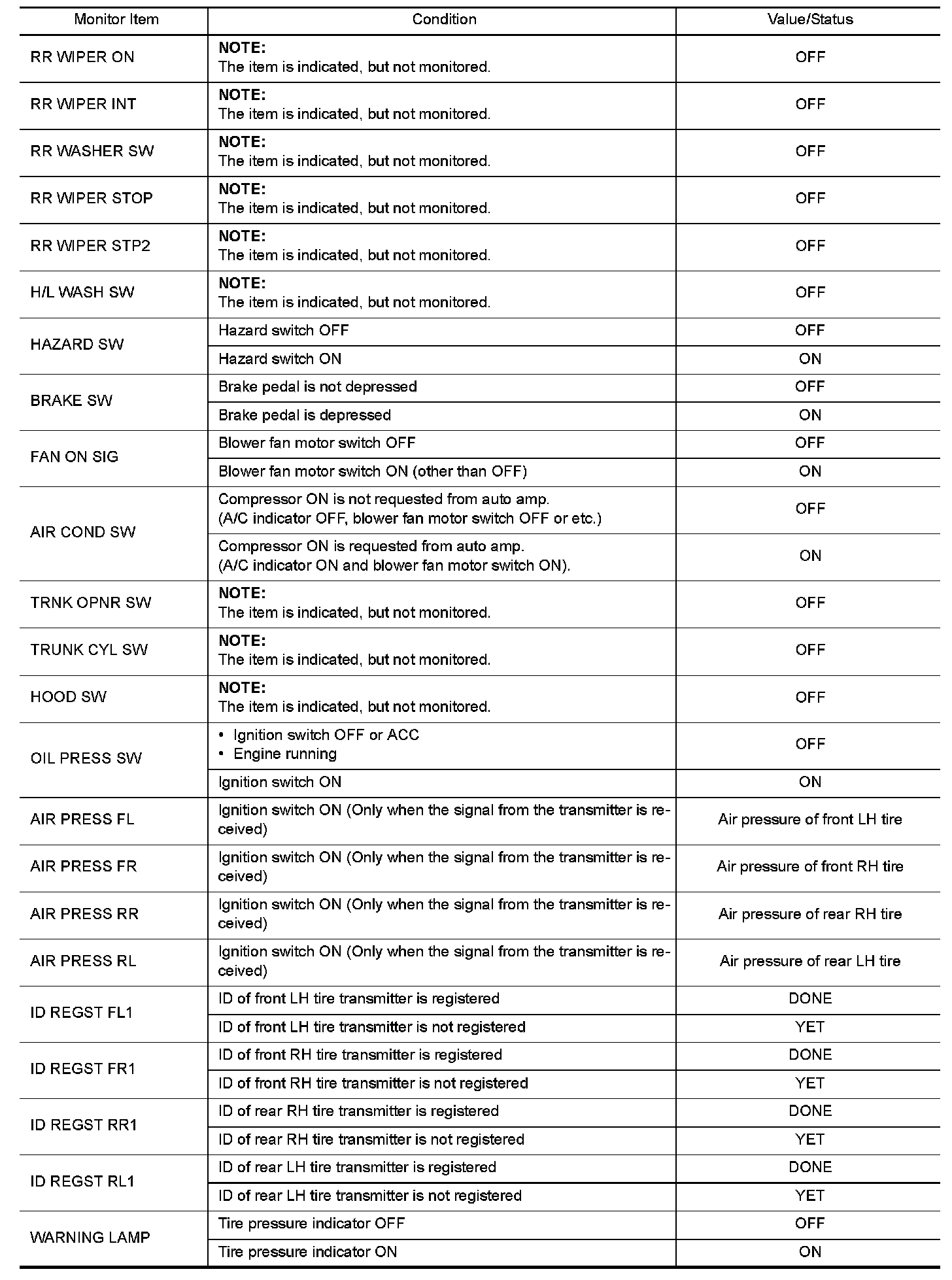

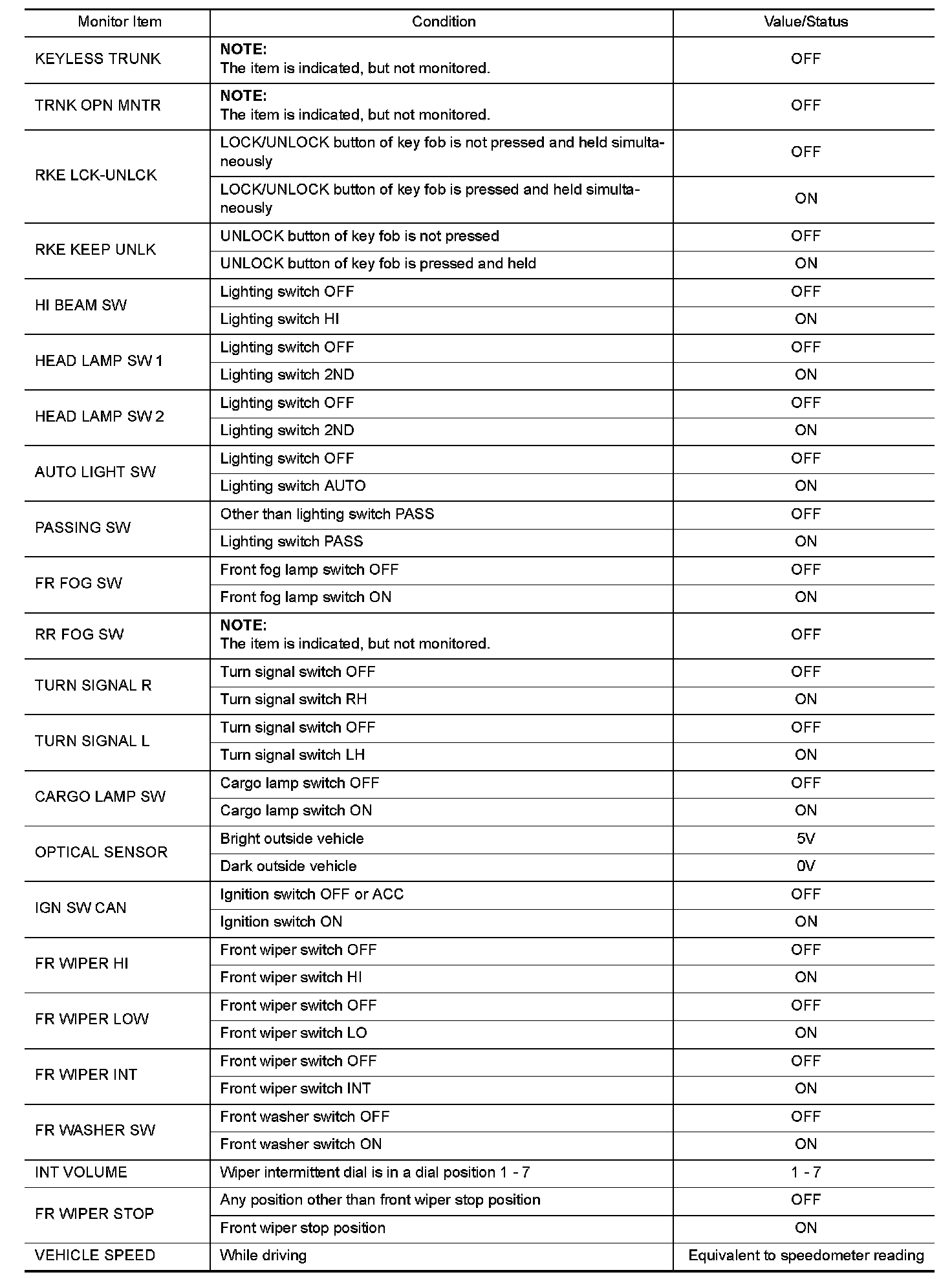

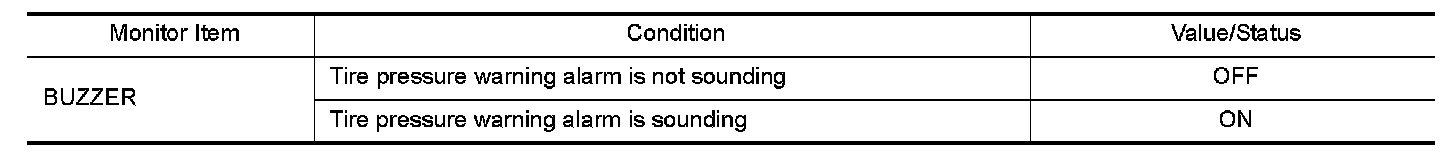

VALUES ON THE DIAGNOSIS TOOL
