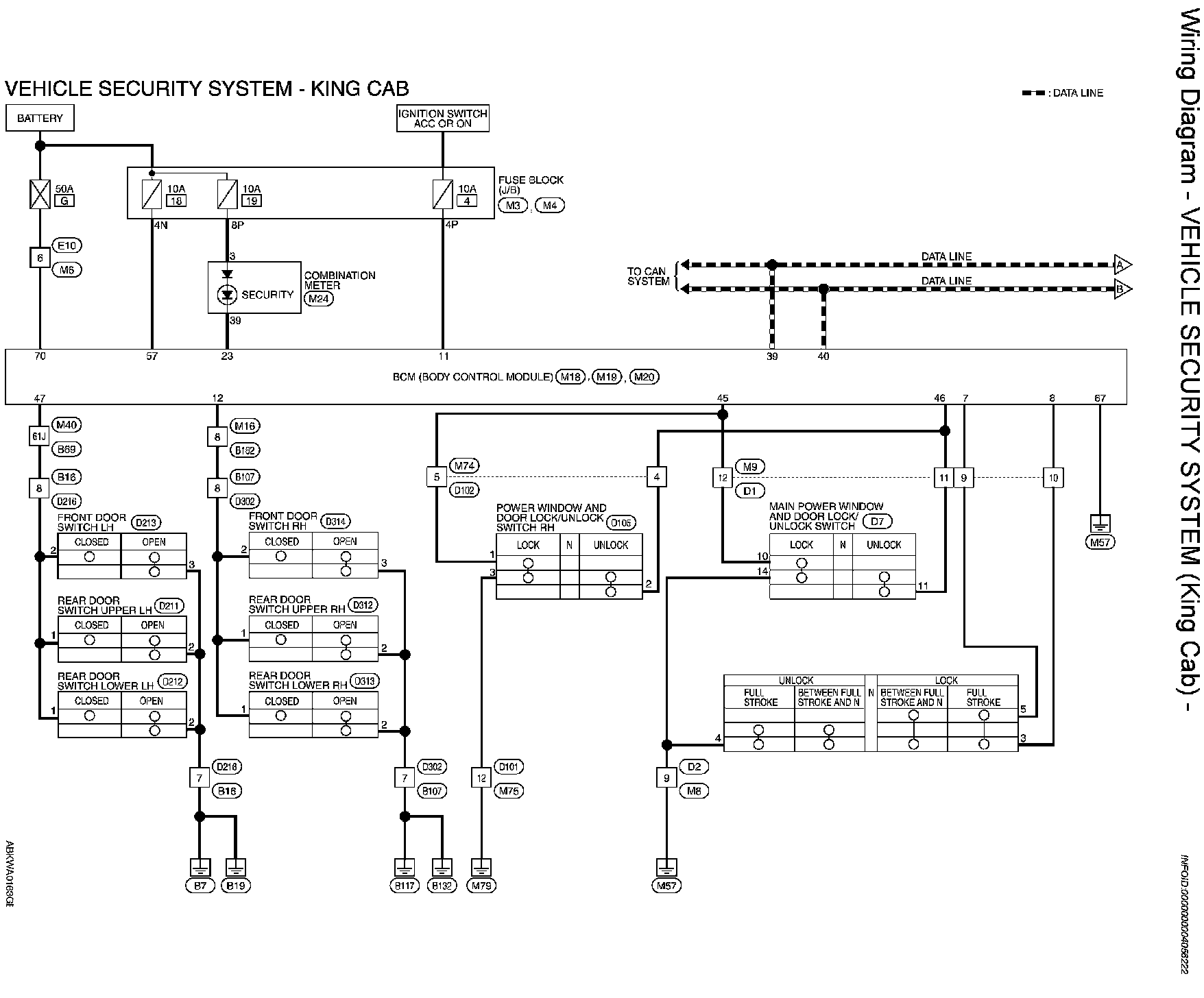

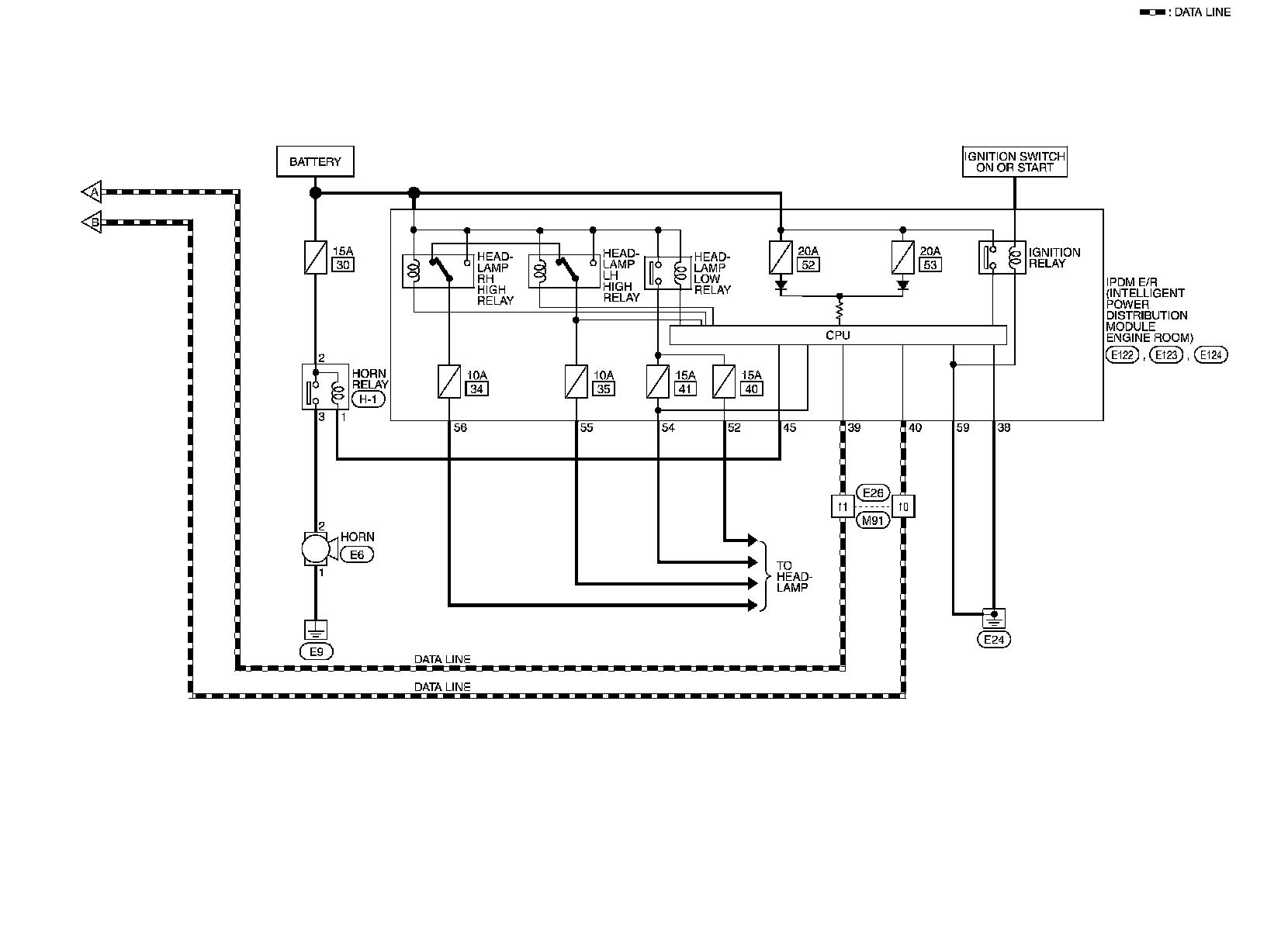

Wiring Diagram - Vehicle Security System (King Cab)

Vehicle Security System - King Cab - Part 1:

Vehicle Security System - King Cab - Part 2:

Vehicle Security System - King Cab - Part 3:

Vehicle Security System - King Cab - Part 4:

Vehicle Security System - King Cab - Part 5:

Vehicle Security System - King Cab - Part 6:

Vehicle Security System - King Cab - Part 7:

Vehicle Security System - King Cab - Part 8:

Vehicle Security System - King Cab - Part 9:
