Wiring Diagram -- With Power Seats

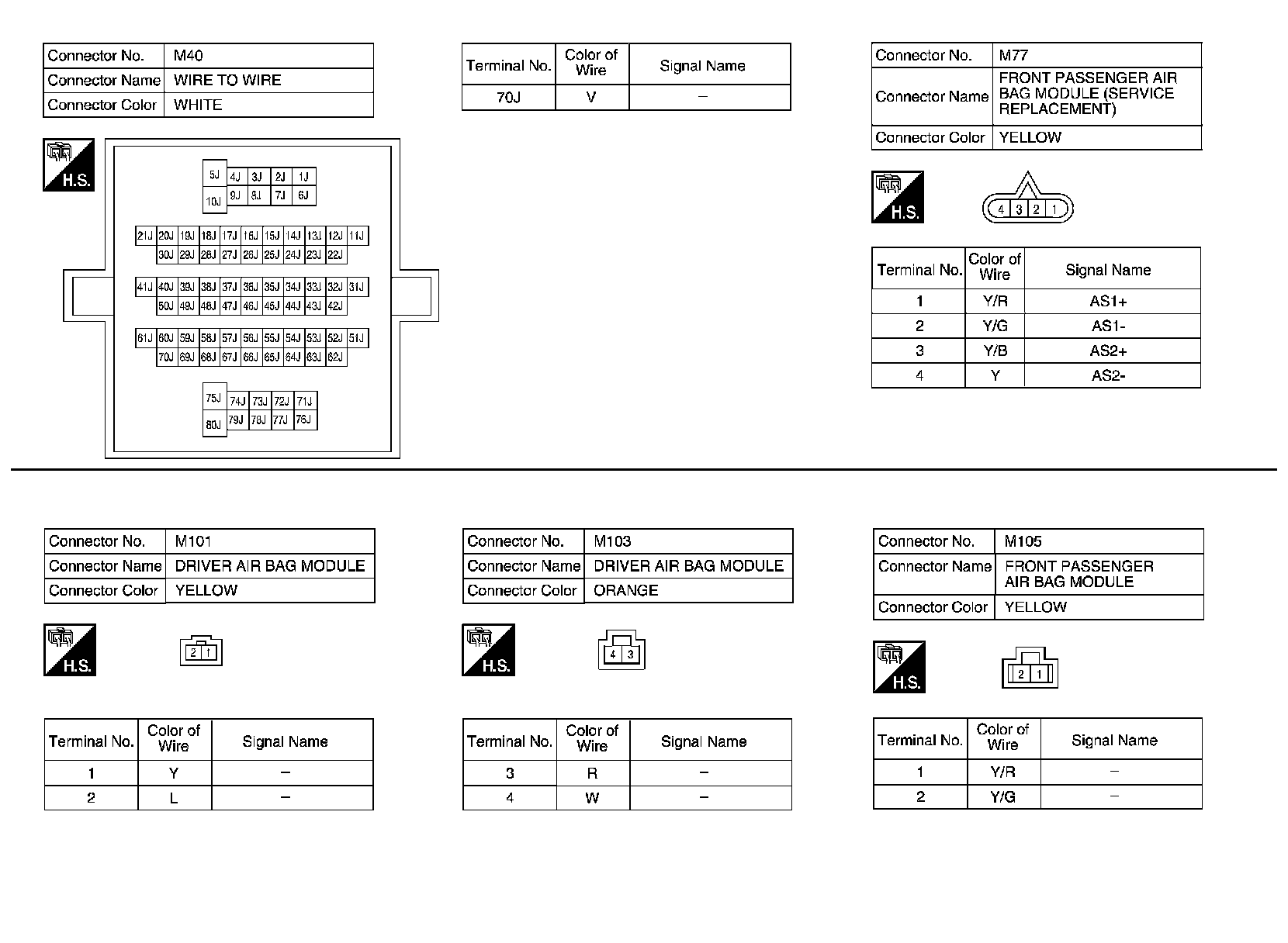

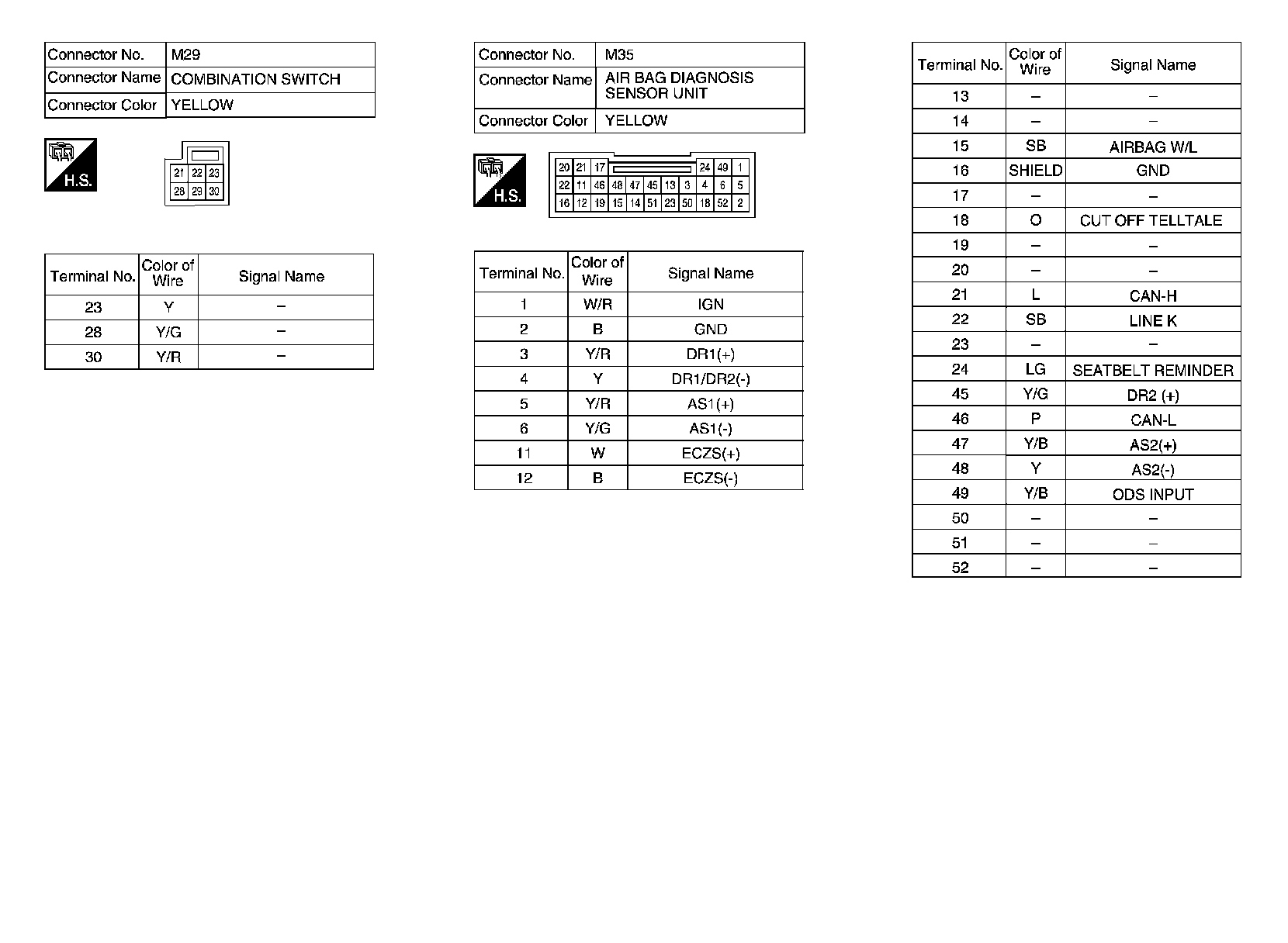

SRS Air Bag Control System - With Power Seats - Part 1:

SRS Air Bag Control System - With Power Seats - Part 2:

SRS Air Bag Control System - With Power Seats - Part 3:

SRS Air Bag Control System - With Power Seats - Part 4:

SRS Air Bag Control System - With Power Seats - Part 5:

SRS Air Bag Control System - With Power Seats - Part 6:

SRS Air Bag Control System - With Power Seats - Part 7:

SRS Air Bag Control System - With Power Seats - Part 8:

SRS Air Bag Control System - With Power Seats - Part 9:

SRS Air Bag Control System - With Power Seats - Part 10:
