Power Door Lock System (Crew Cab)
BCM (BODY CONTROL MODULE)

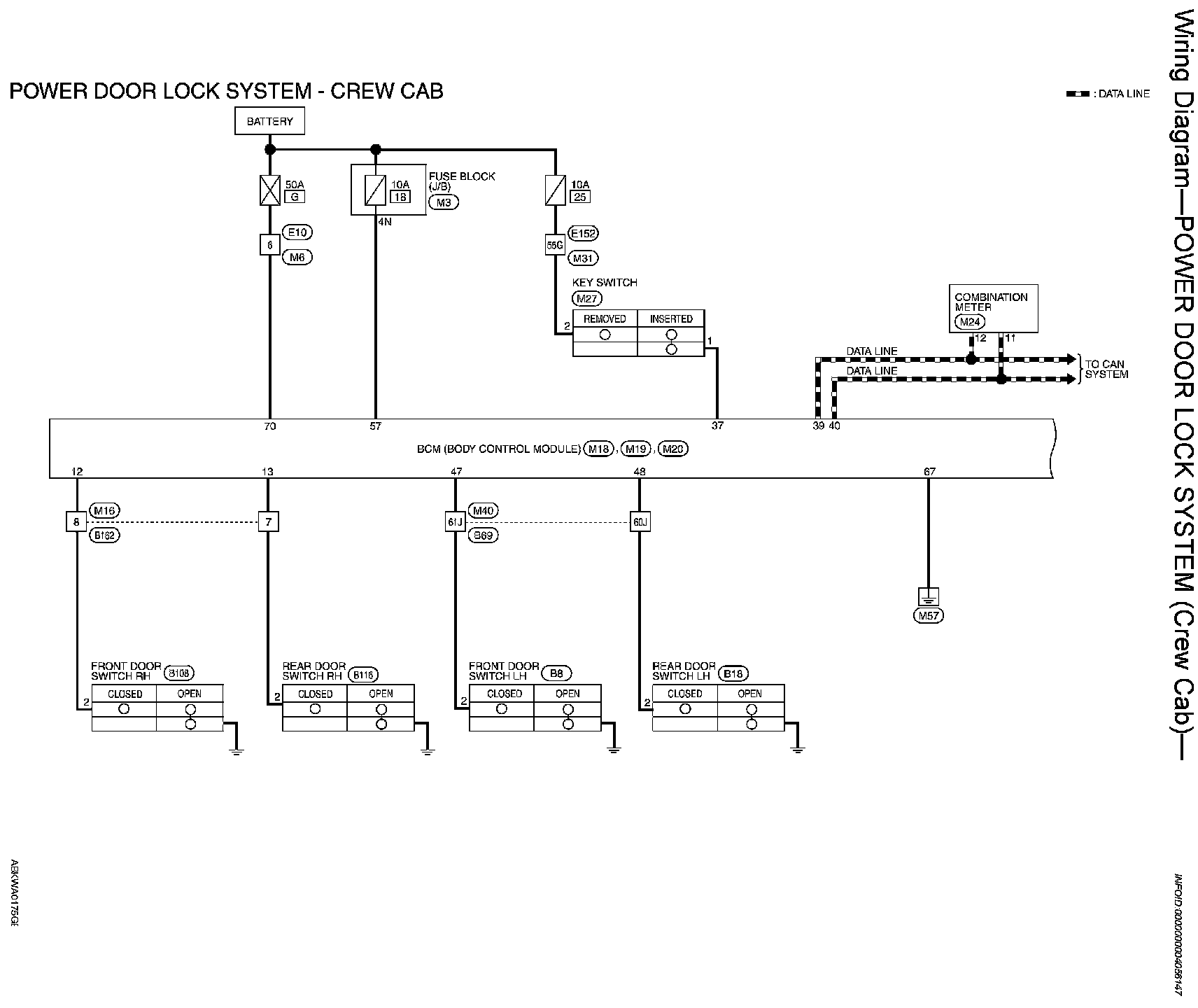

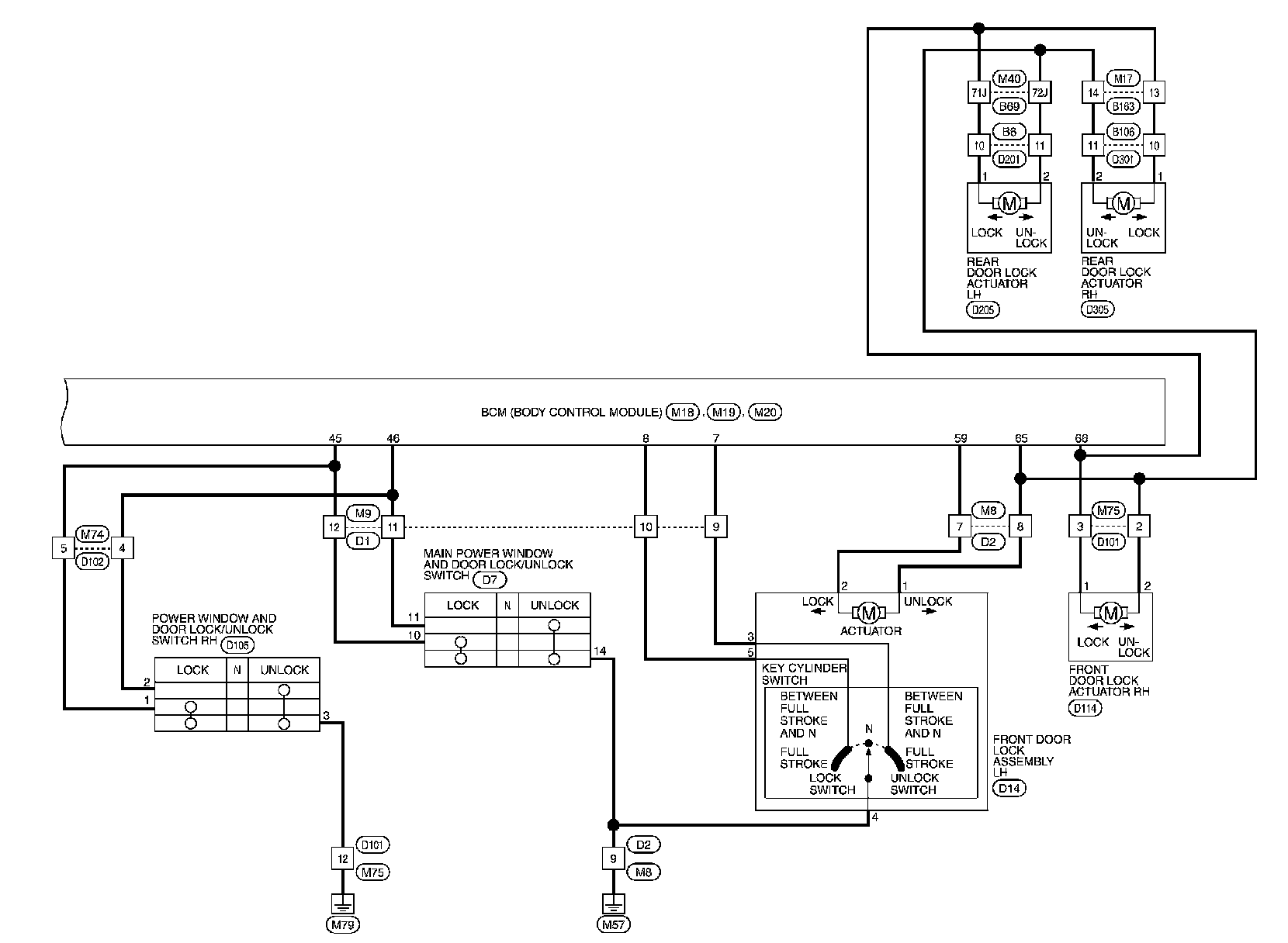

Wiring Diagram--POWER DOOR LOCK SYSTEM (Crew Cab)--

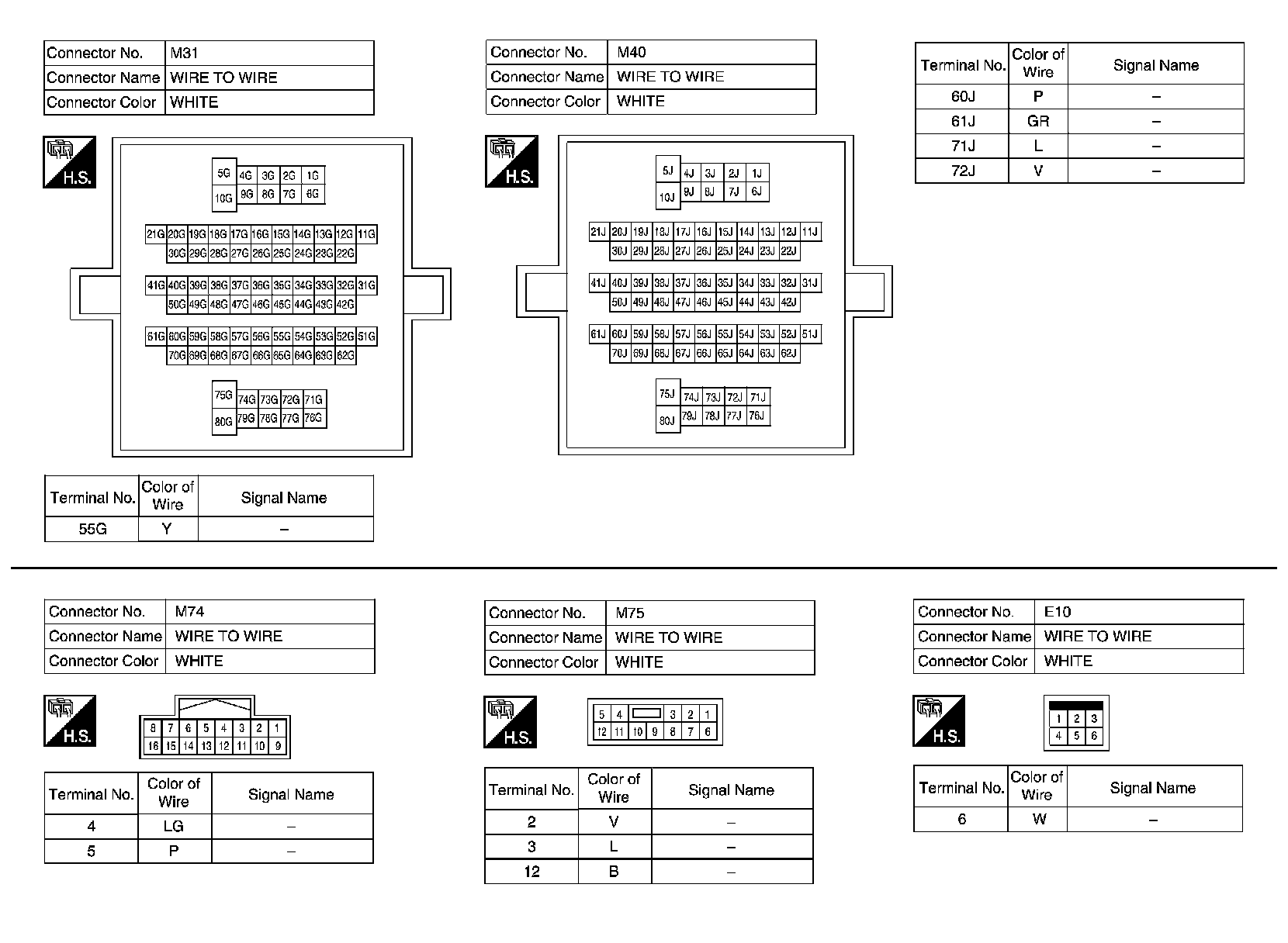

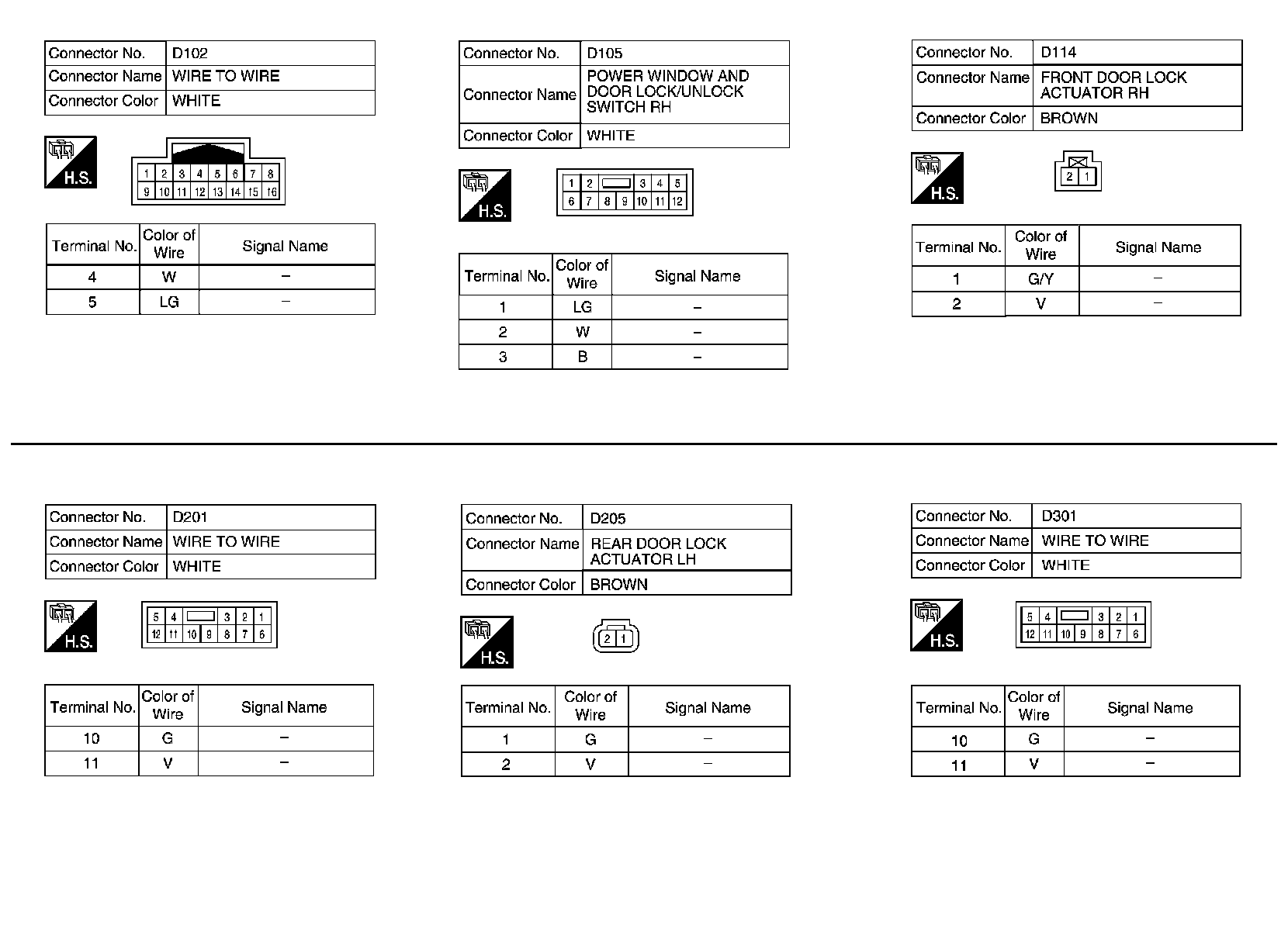

Power Door Lock System Connectors - Crew Cab - Part 1:

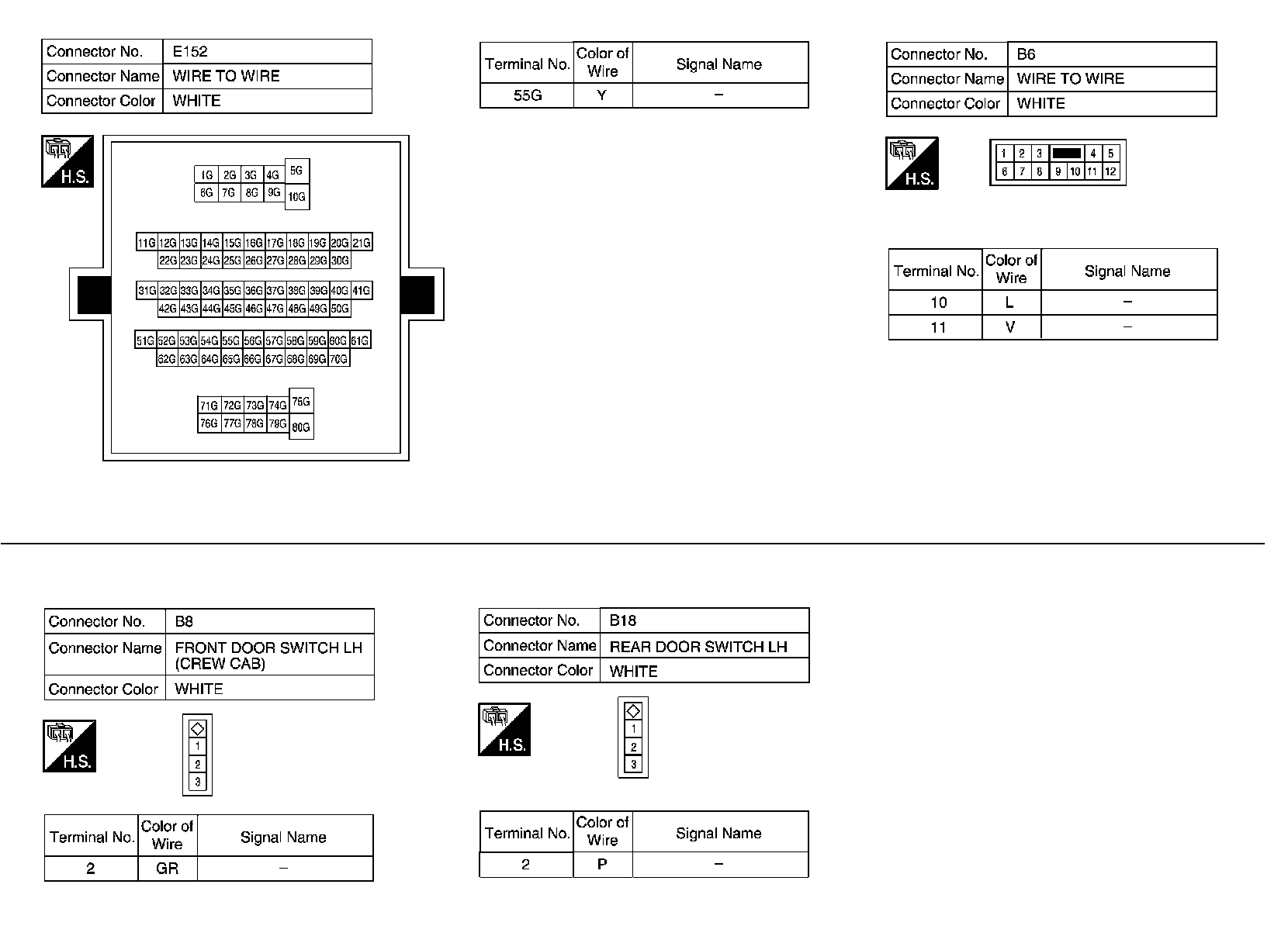

Power Door Lock System Connectors - Crew Cab - Part 2:

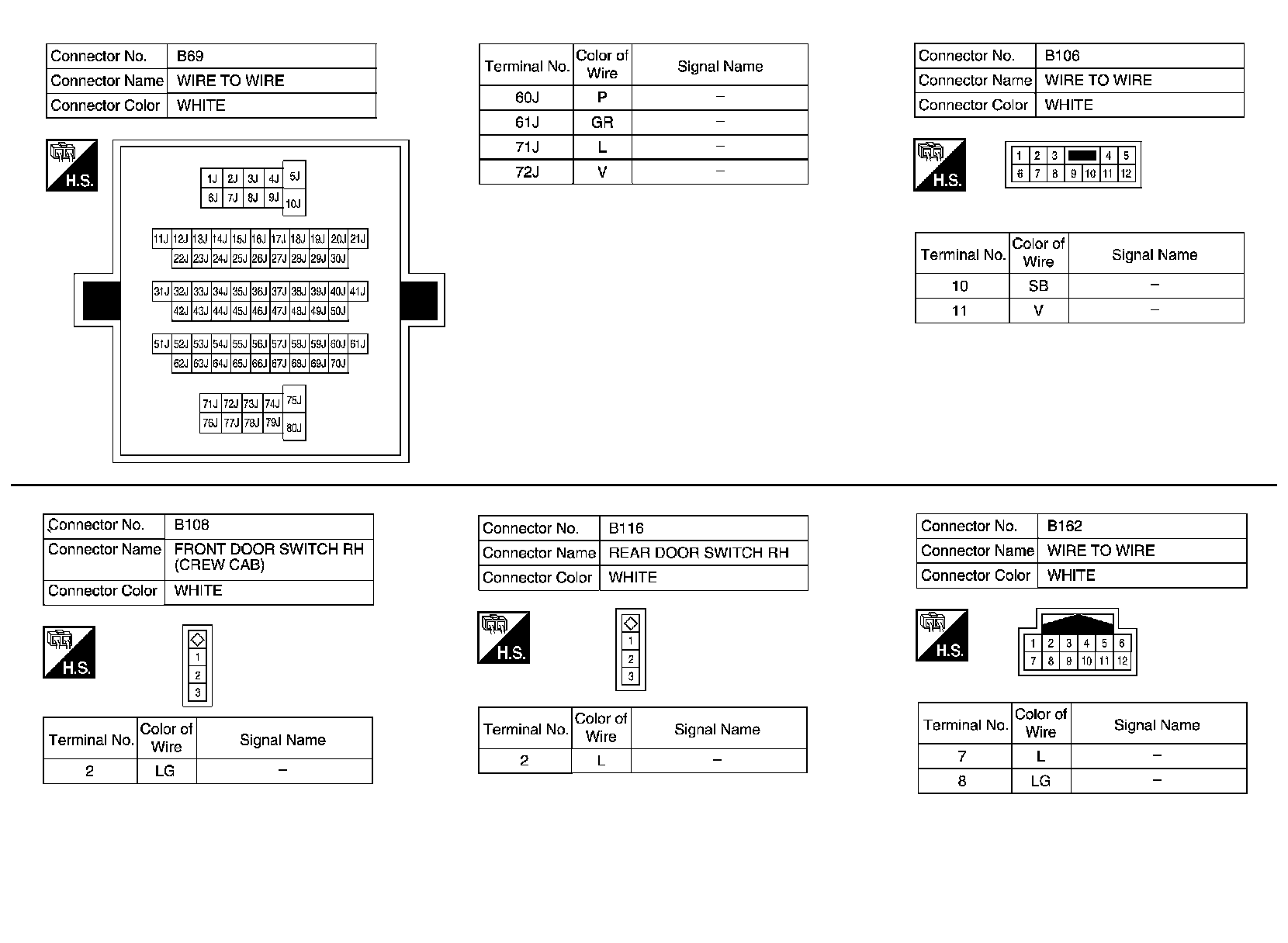

Power Door Lock System Connectors - Crew Cab - Part 3:

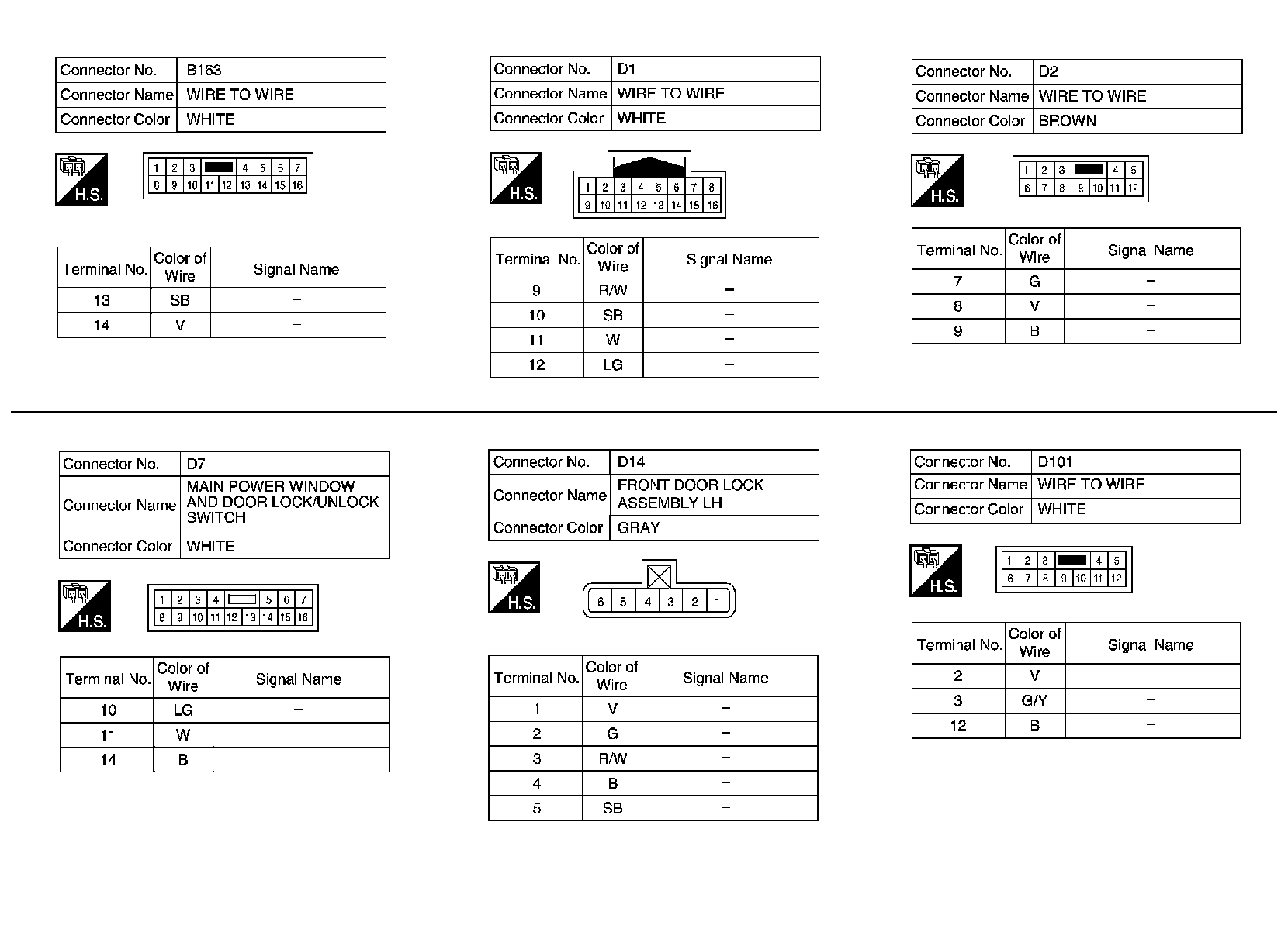

Power Door Lock System Connectors - Crew Cab - Part 4:

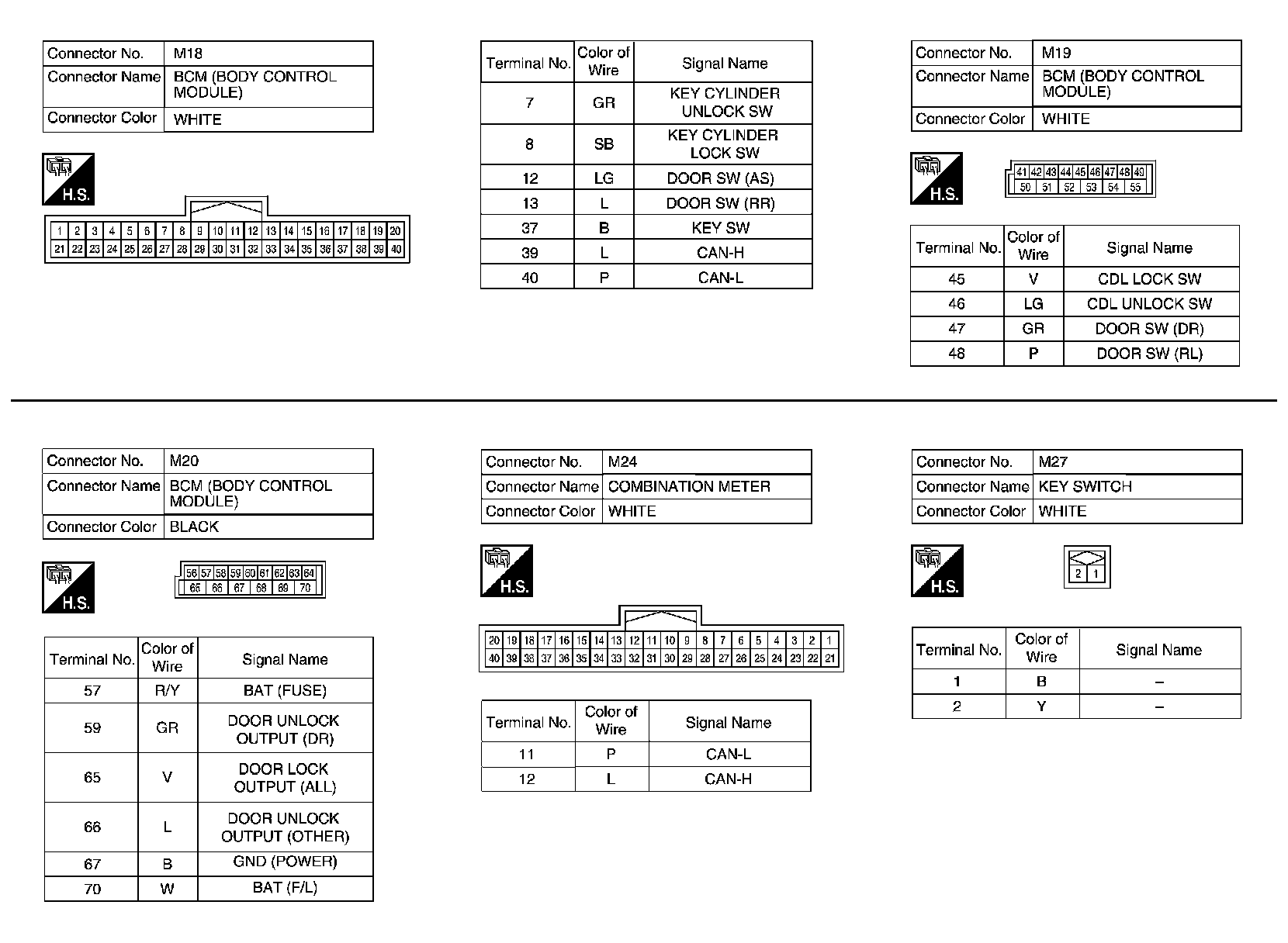

Power Door Lock System Connectors - Crew Cab - Part 5:
Power Door Lock System Connectors - Crew Cab - Part 6:
Power Door Lock System Connectors - Crew Cab - Part 7:
Power Door Lock System Connectors - Crew Cab - Part 8:
Power Door Lock System Connectors - Crew Cab - Part 9:

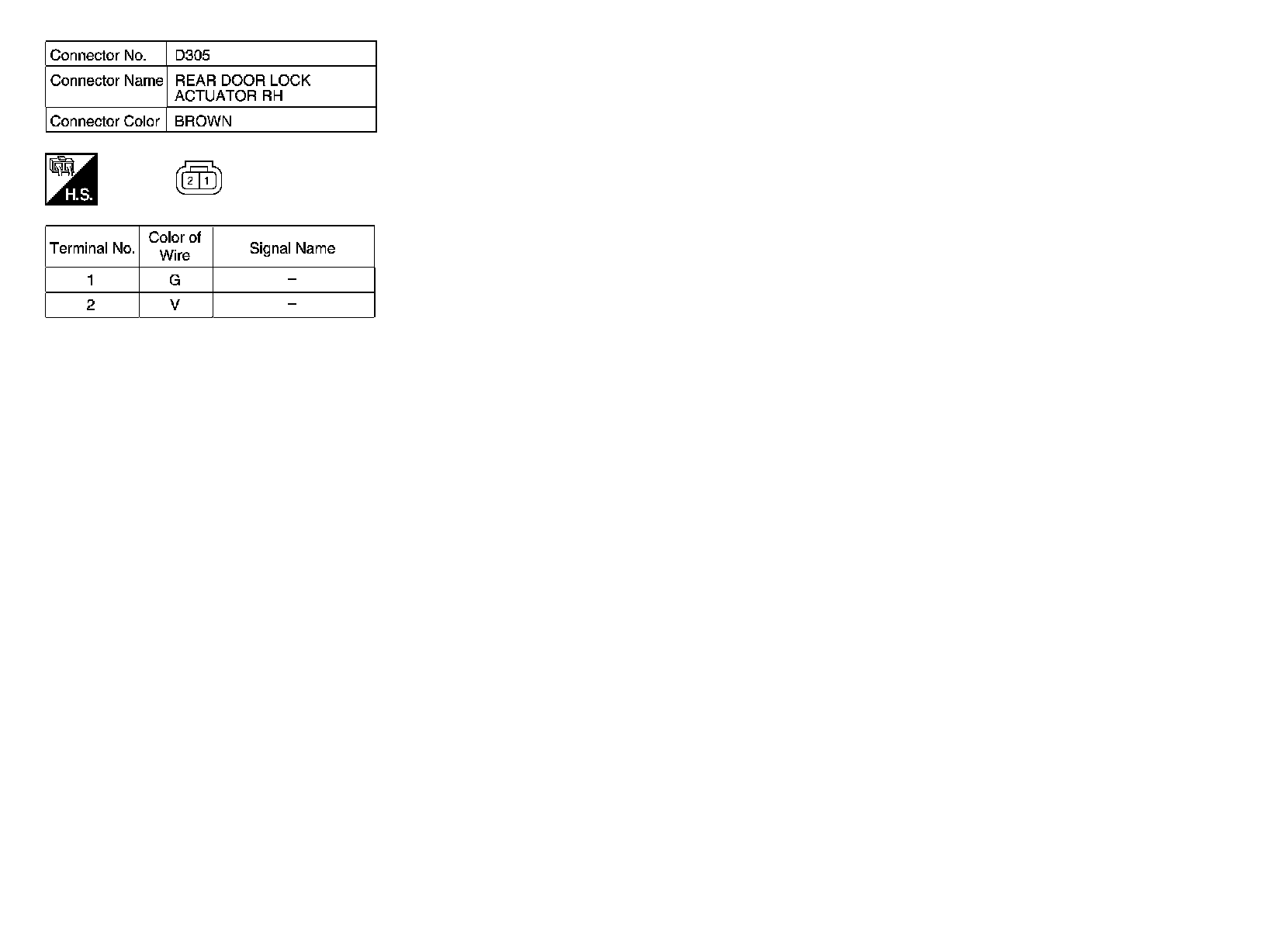

Power Door Lock System Connectors - Crew Cab - Part 10:
