Remote Keyless Entry System (Crew Cab)
BCM (BODY CONTROL MODULE)

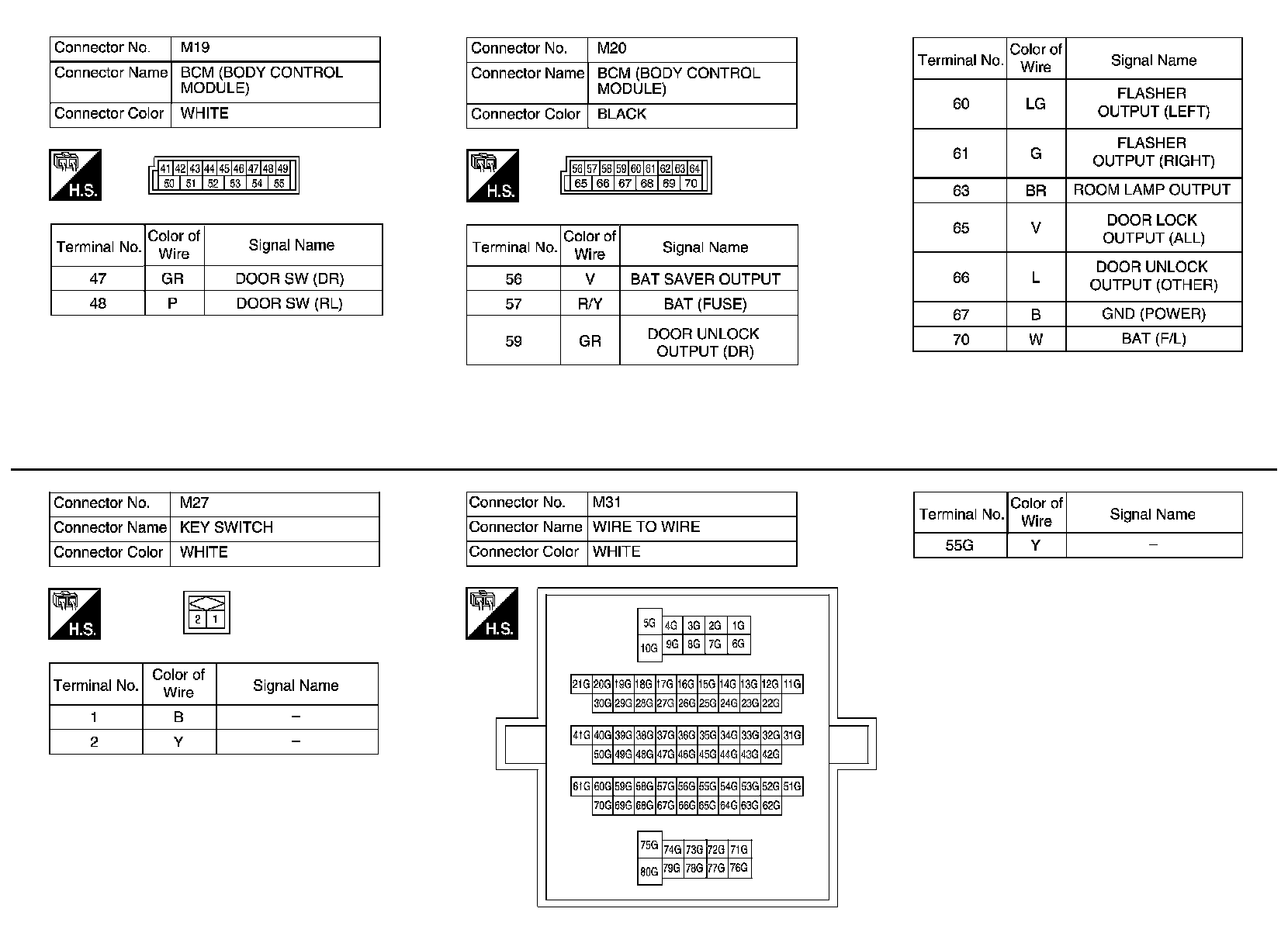

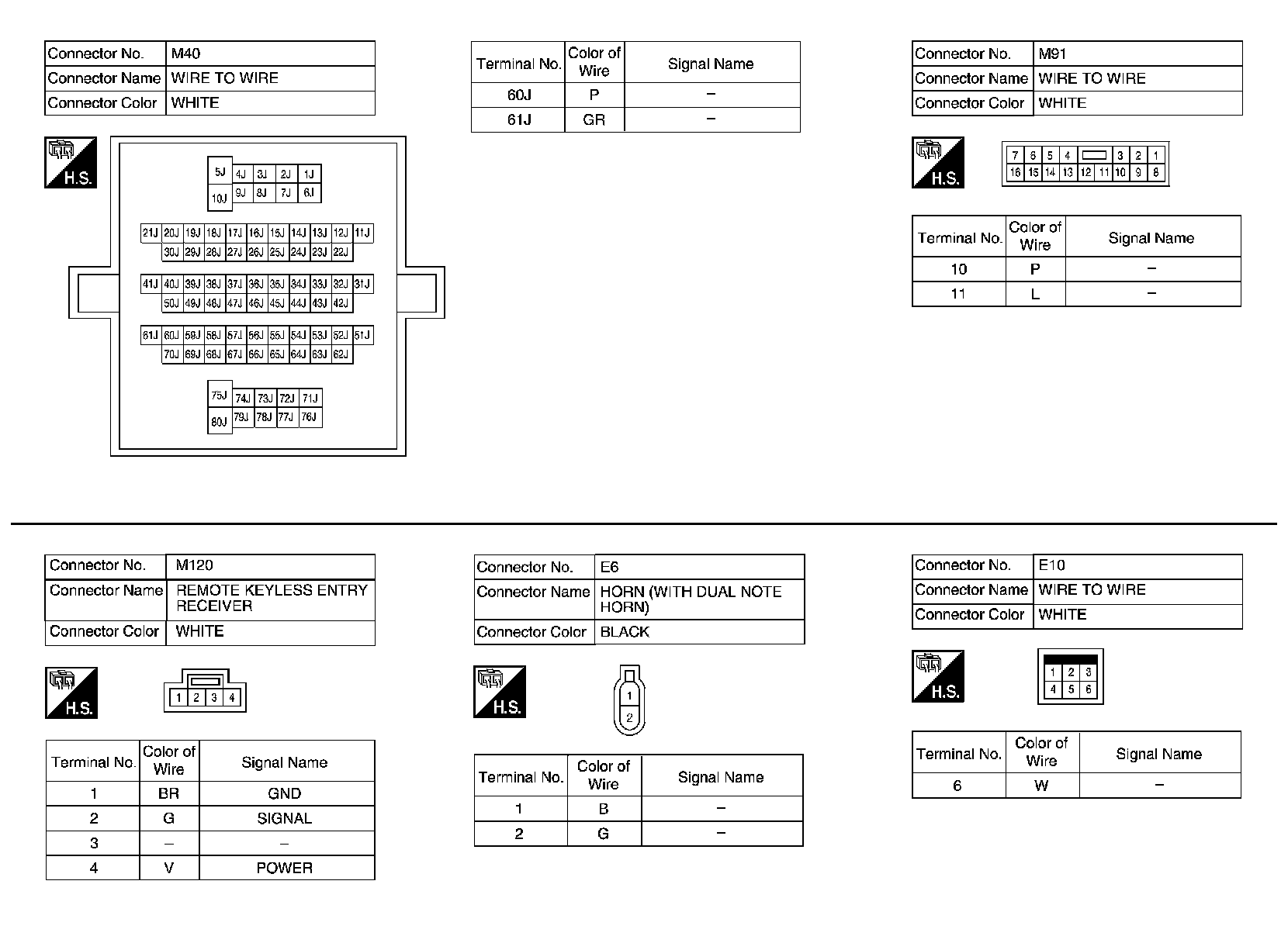

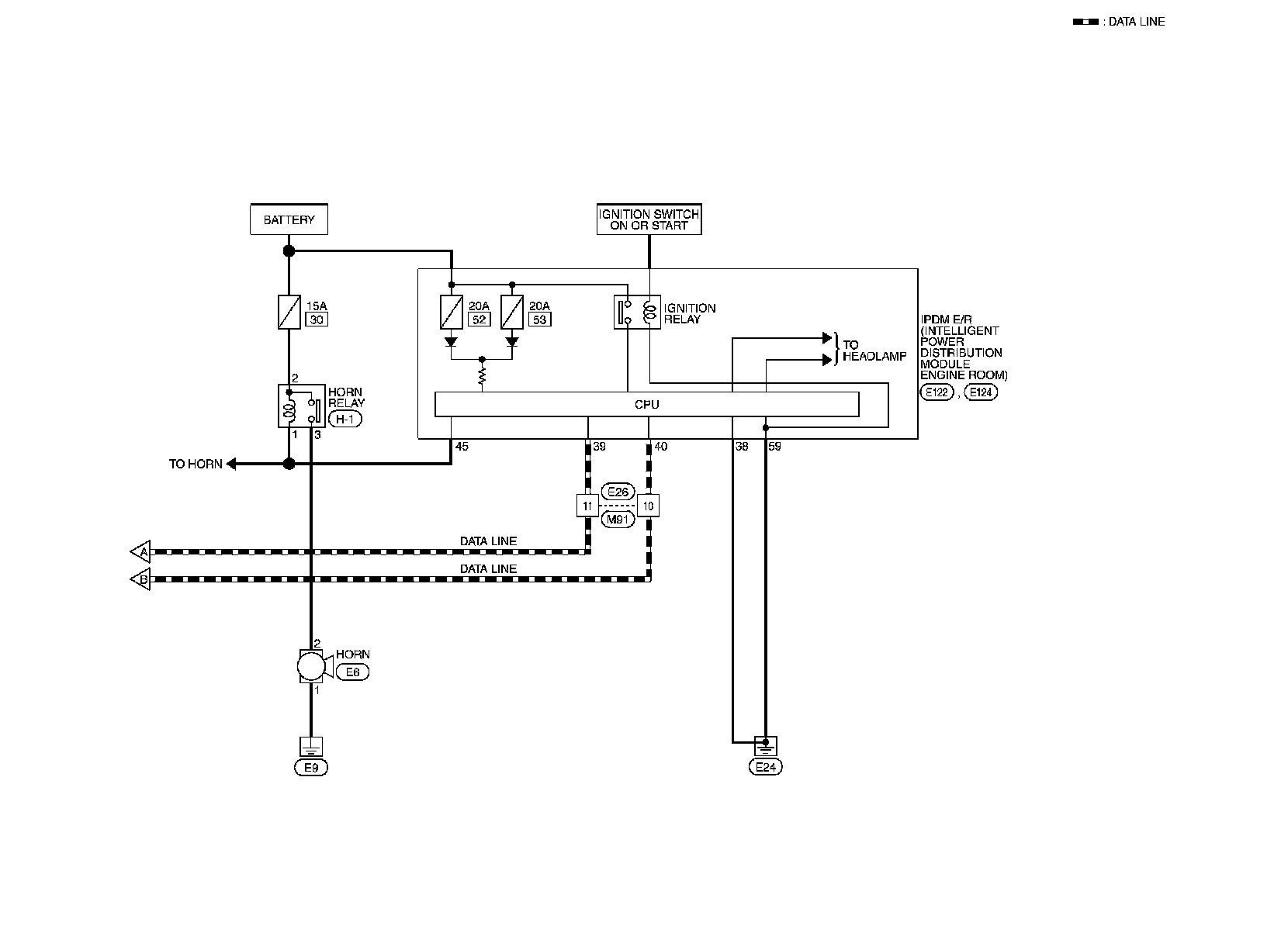

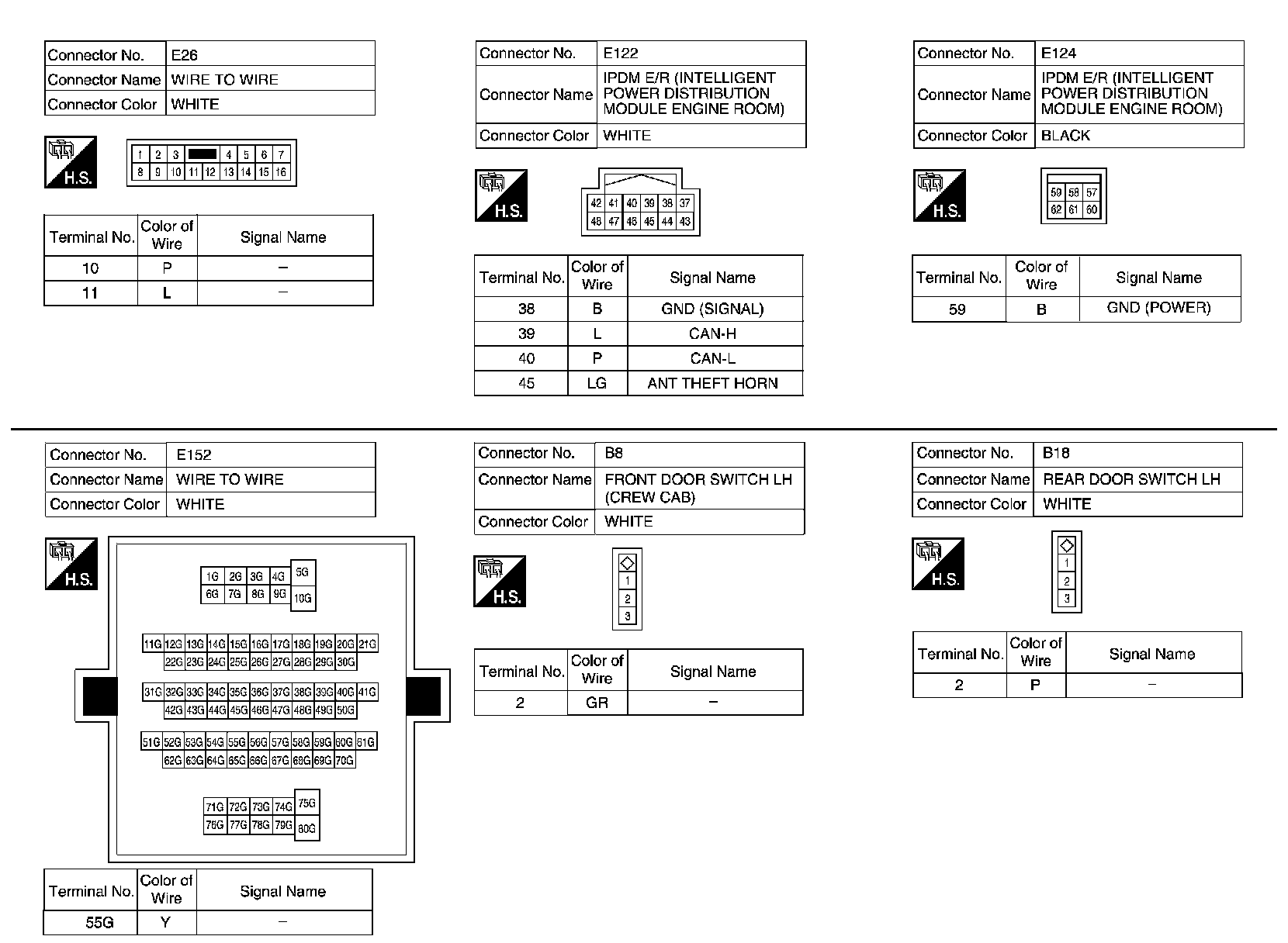

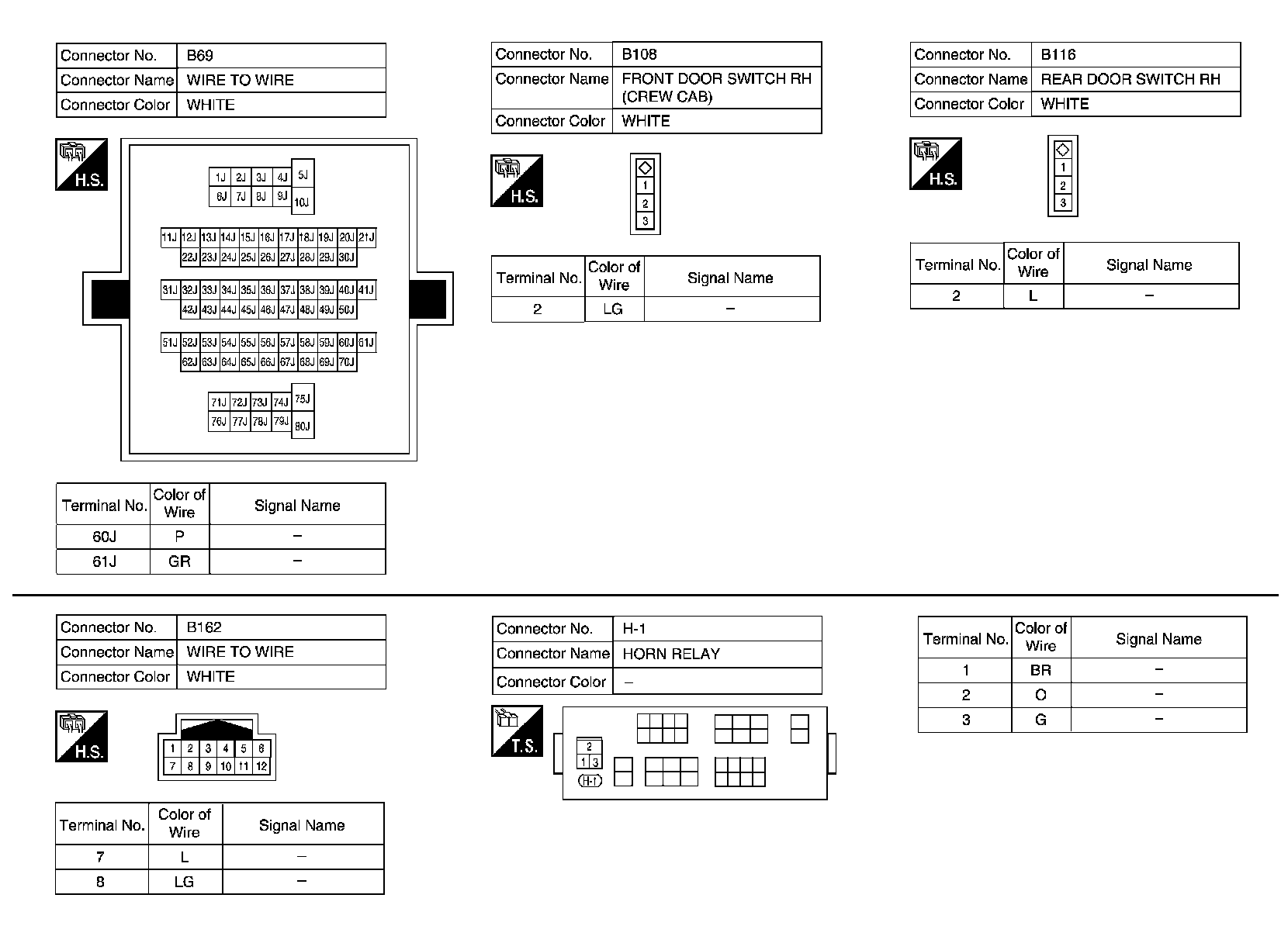

Wiring Diagram--REMOTE KEYLESS ENTRY SYSTEM (Crew Cab)--
Remote Keyless Entry System - Crew Cab - Part 1:
Remote Keyless Entry System - Crew Cab - Part 2:
Remote Keyless Entry System - Crew Cab - Part 3:
Remote Keyless Entry System - Crew Cab - Part 4:
Remote Keyless Entry System - Crew Cab - Part 5:
Remote Keyless Entry System - Crew Cab - Part 6:
Remote Keyless Entry System - Crew Cab - Part 7:
Remote Keyless Entry System - Crew Cab - Part 8:
