Ground Distribution




GROUND


Ground Distribution

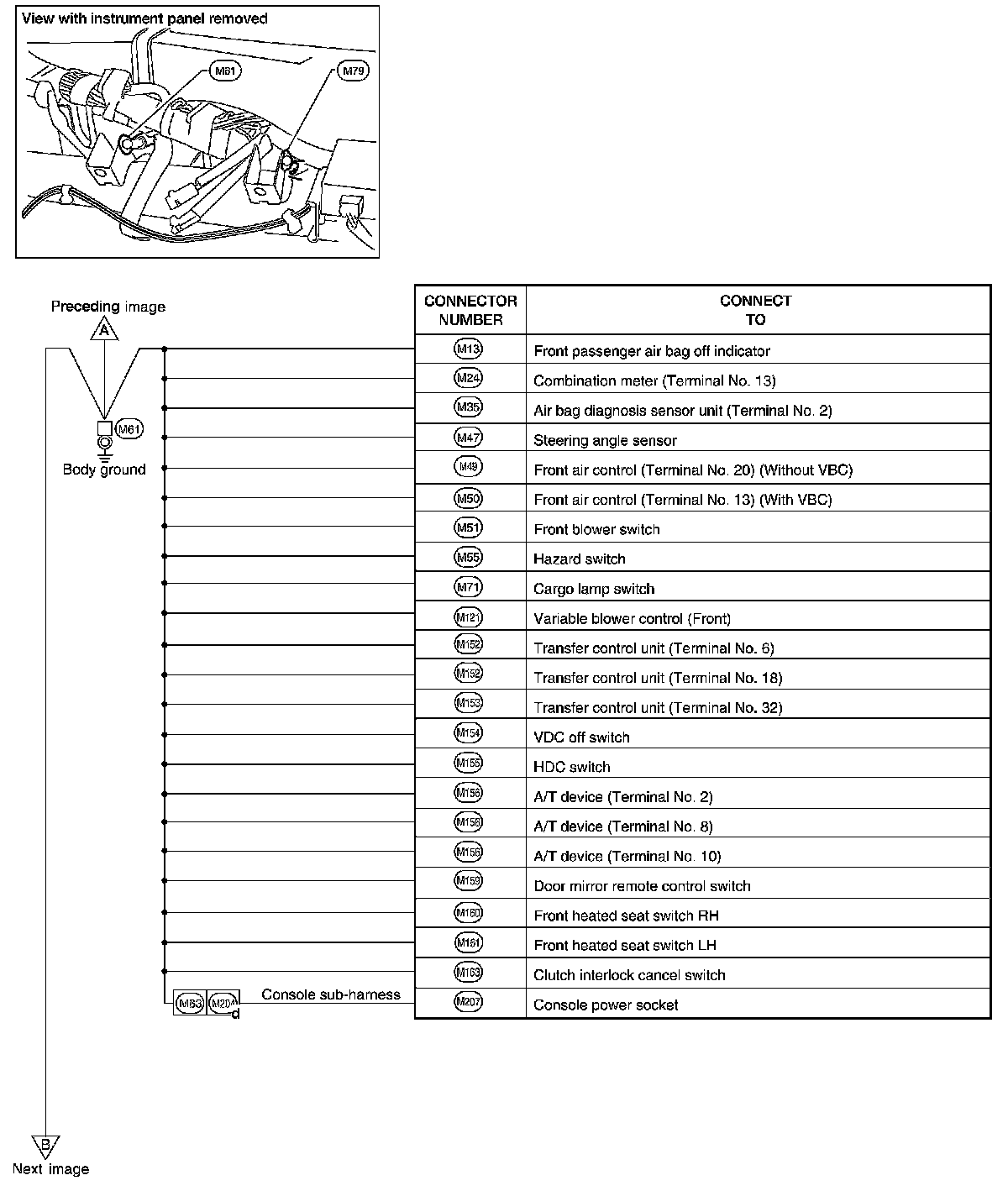

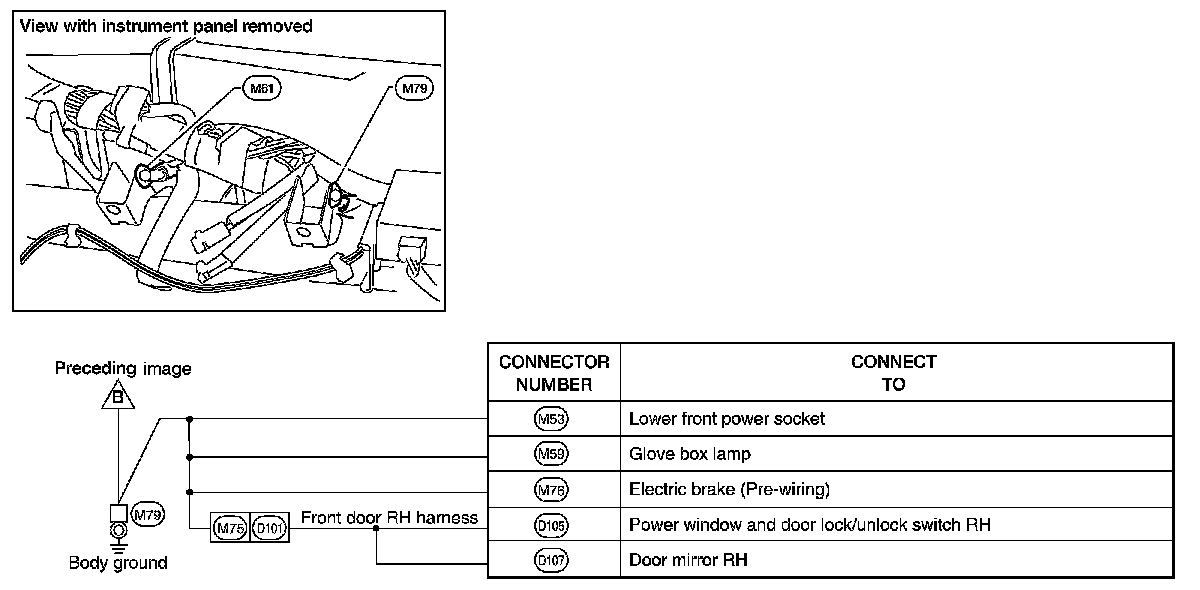

MAIN HARNESS

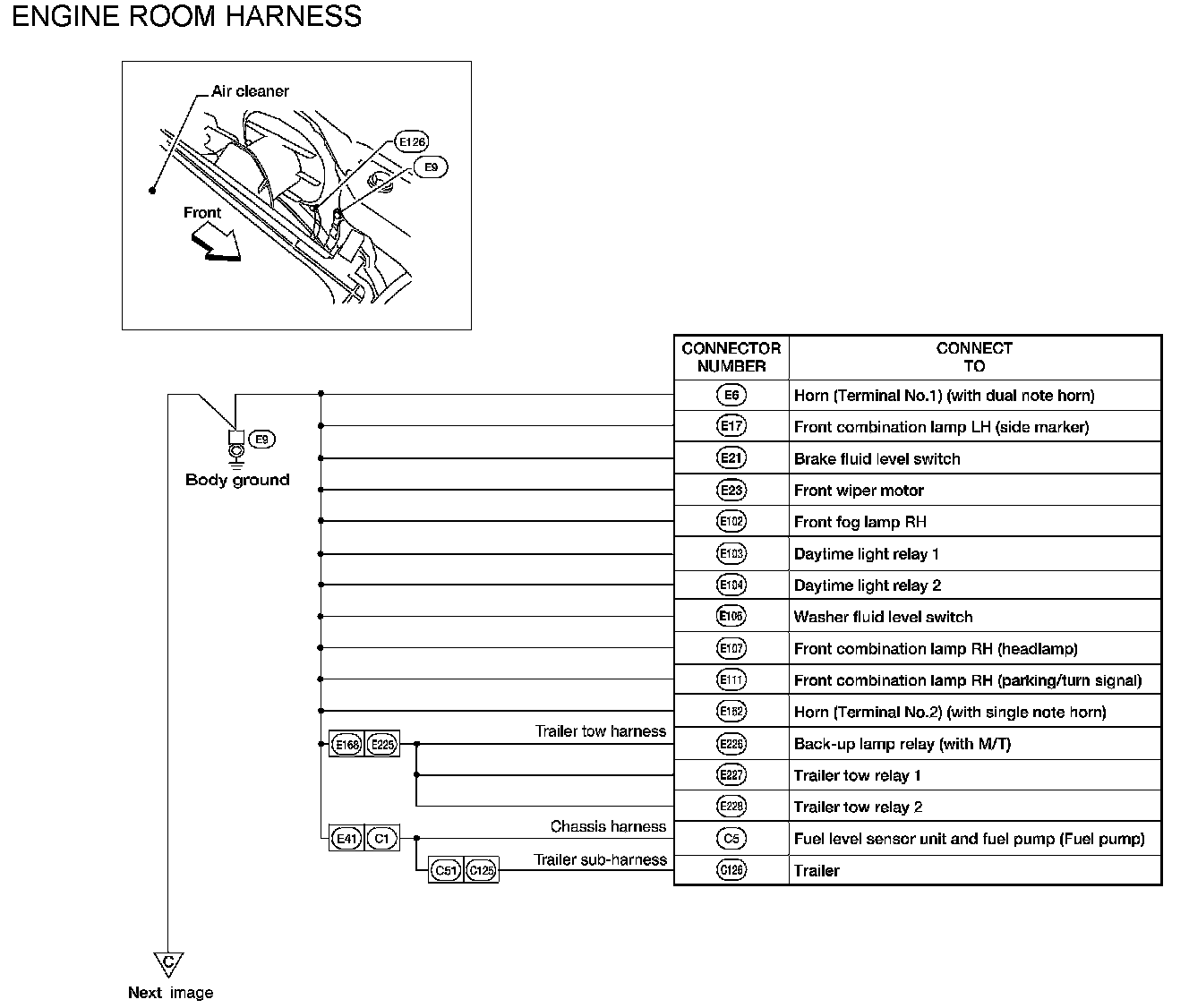

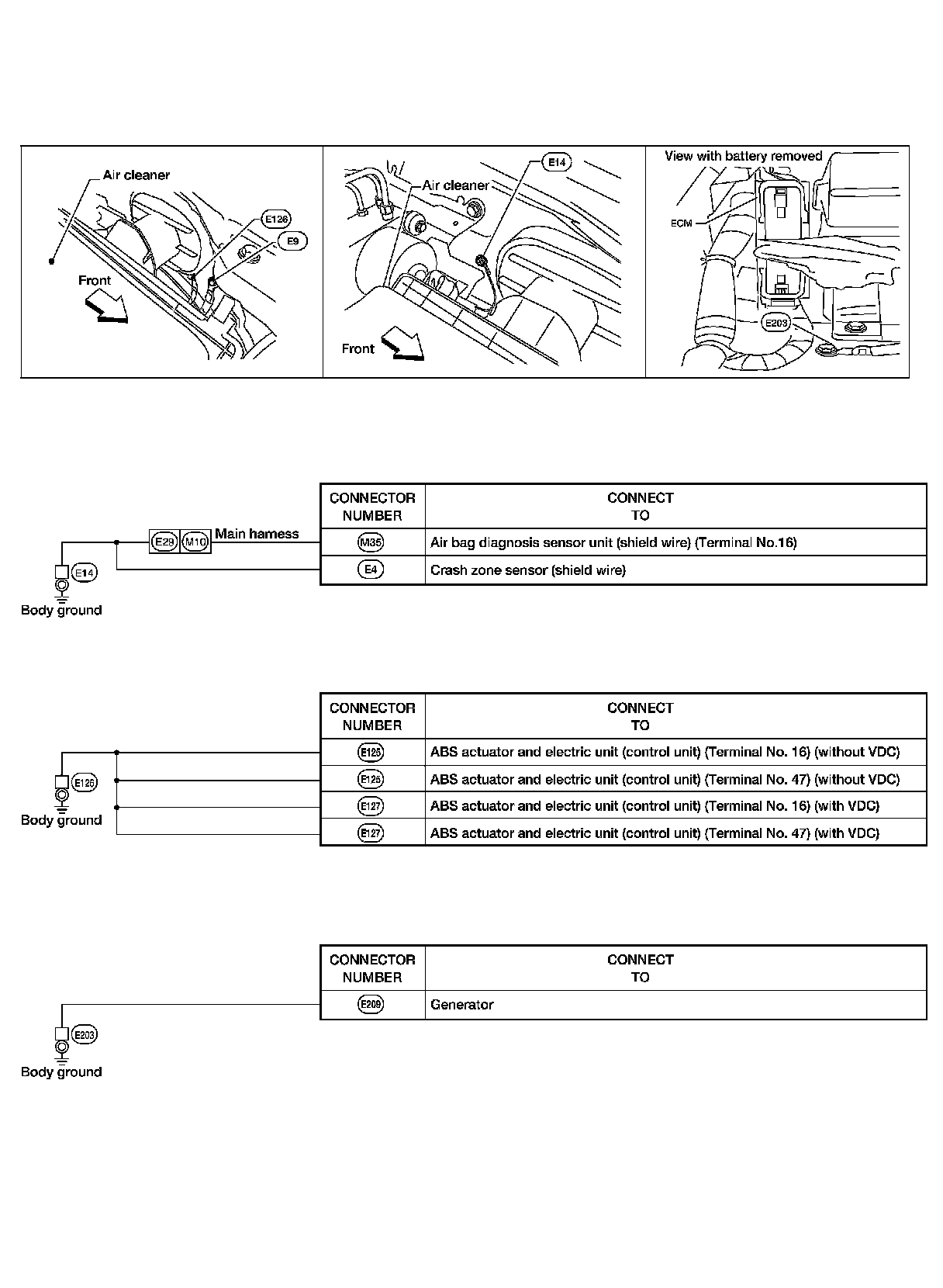

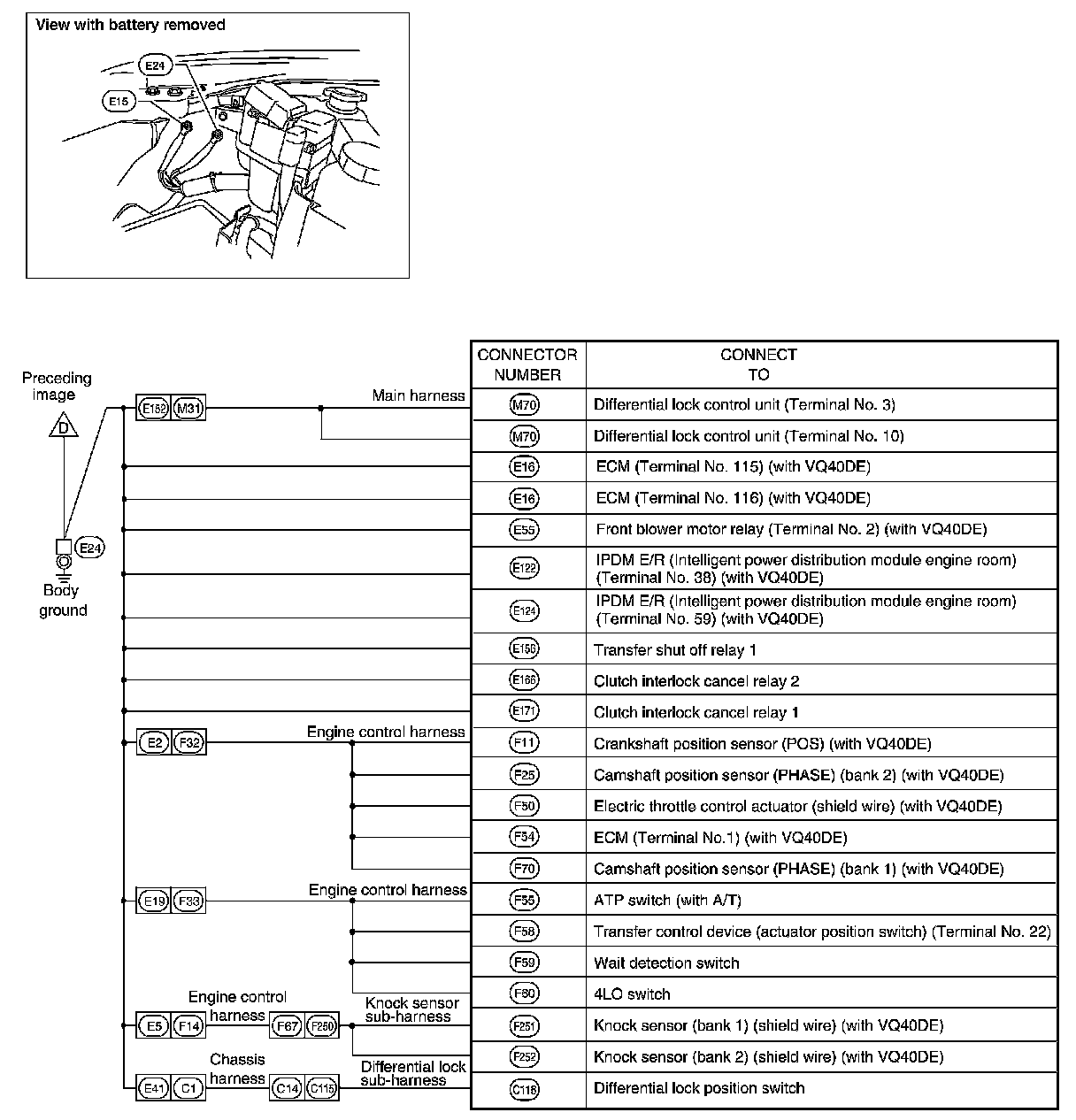

ENGINE ROOM HARNESS

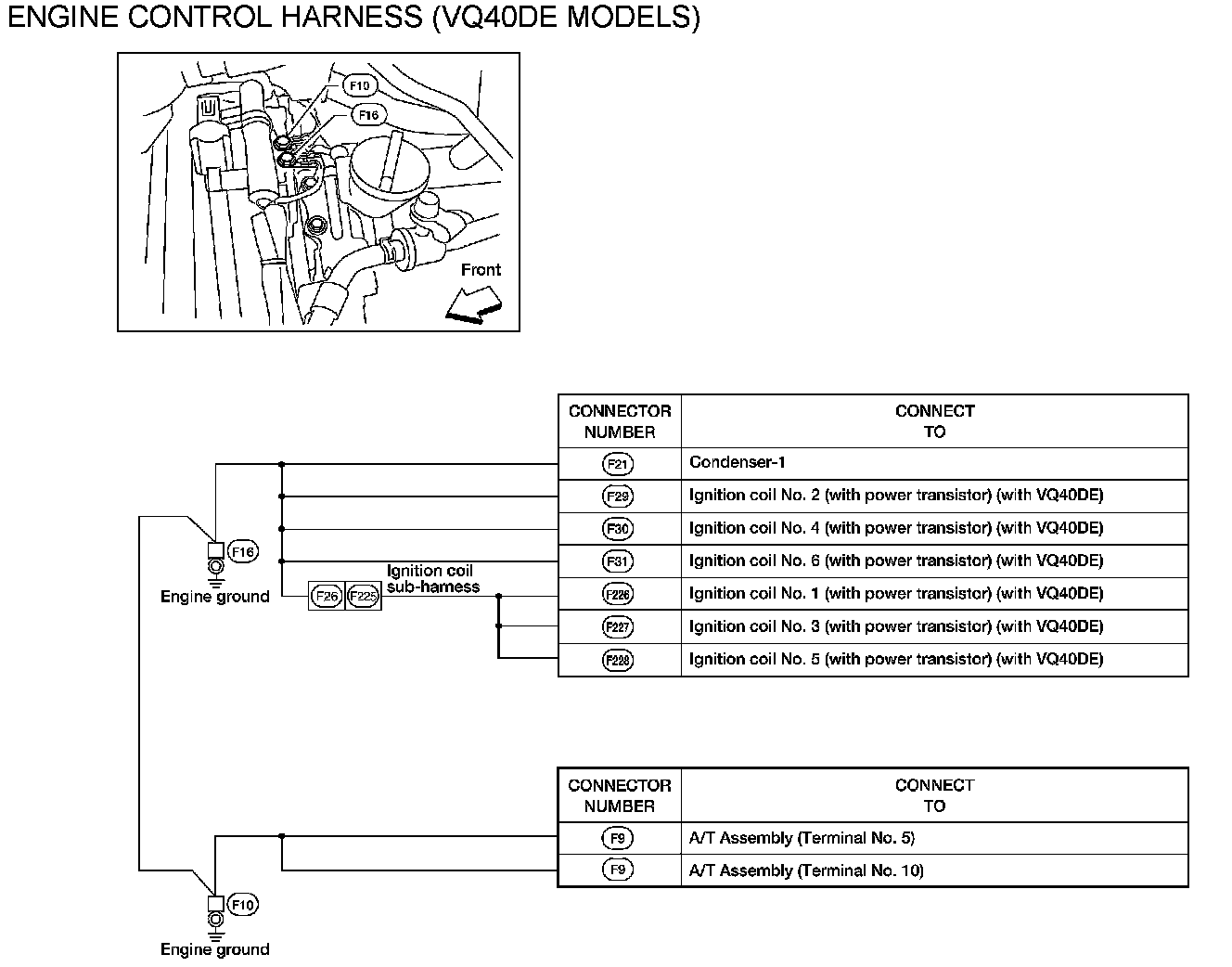

ENGINE CONTROL HARNESS (VQ40DE MODELS)

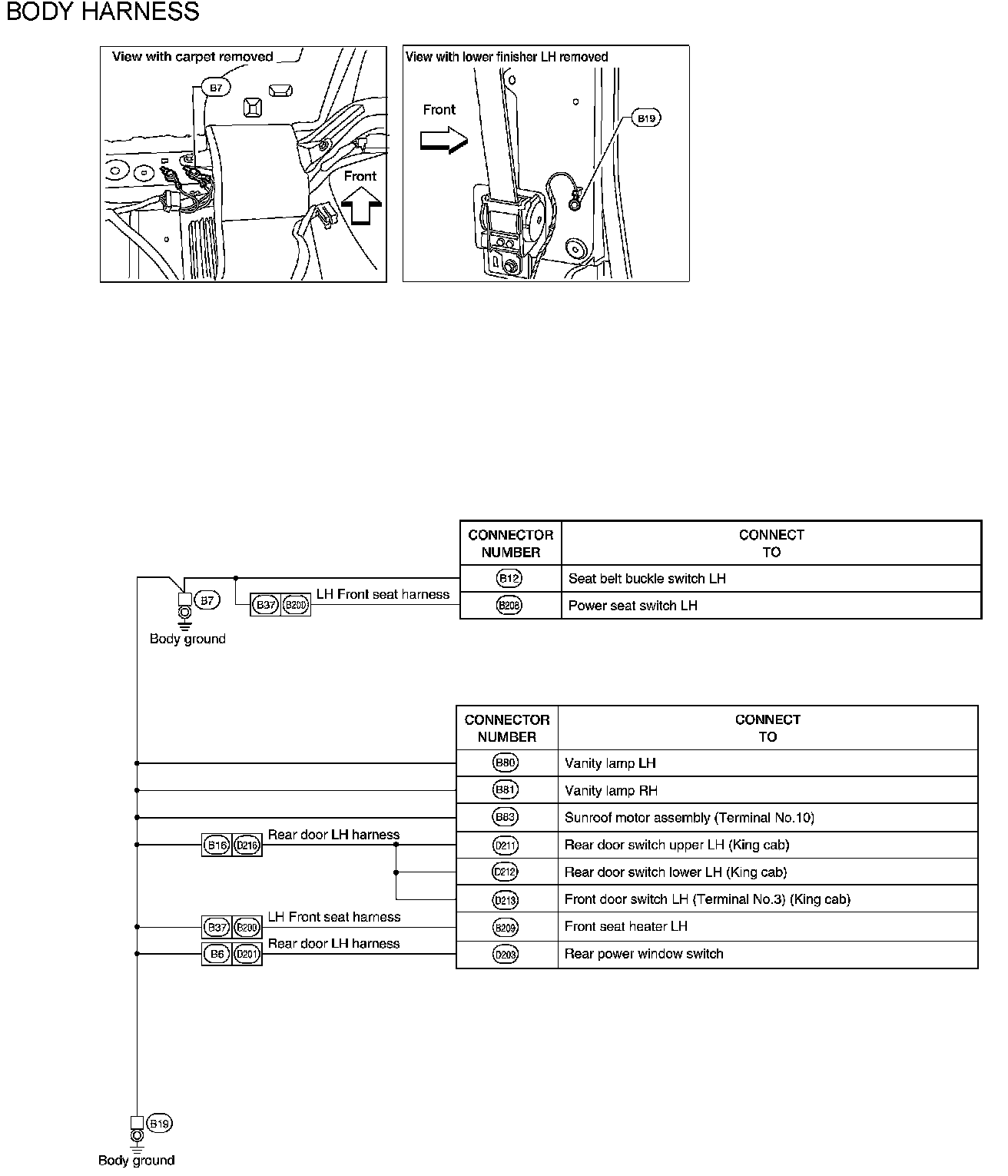

BODY HARNESS

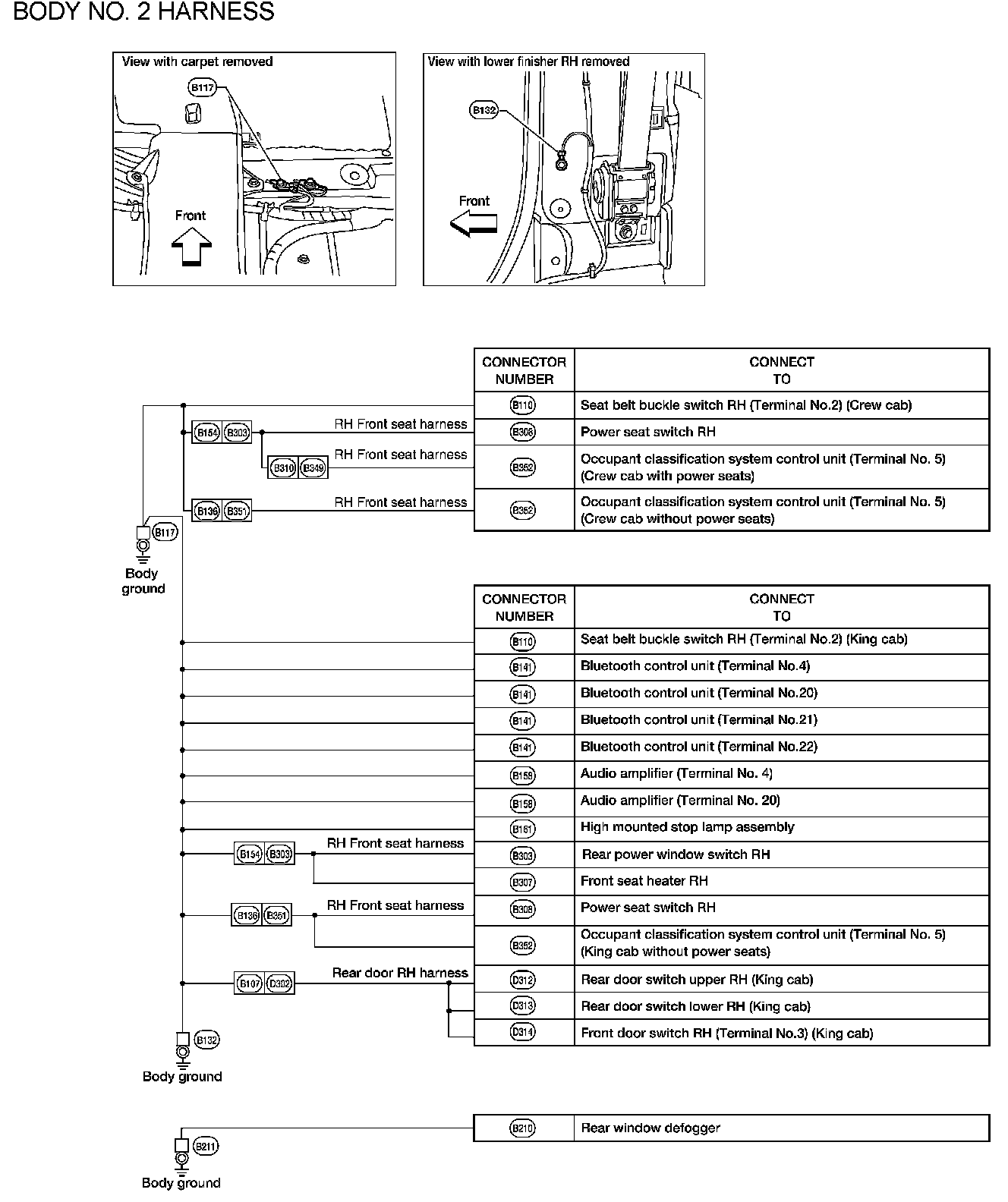

BODY NO. 2 HARNESS
