Cylinder Head

Cylinder Head

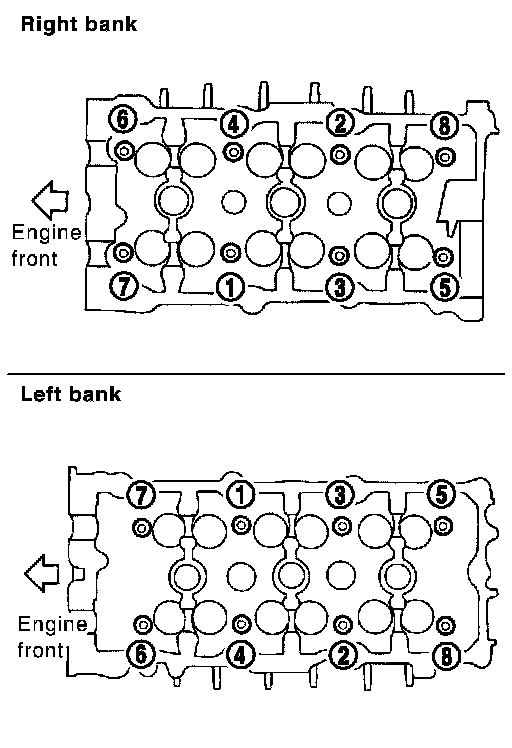

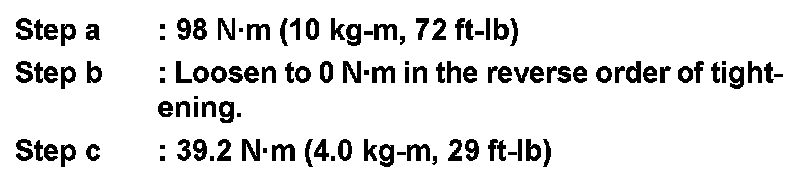

Install cylinder head follow the steps below to tighten cylinder head bolts in numerical order as shown.

CAUTION:
If cylinder head bolts re-used, check their outer diameters before installation. Refer to Removal and Replacement (Cylinder Head Bolts Outer Diameter).

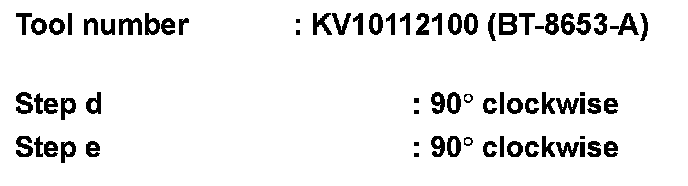

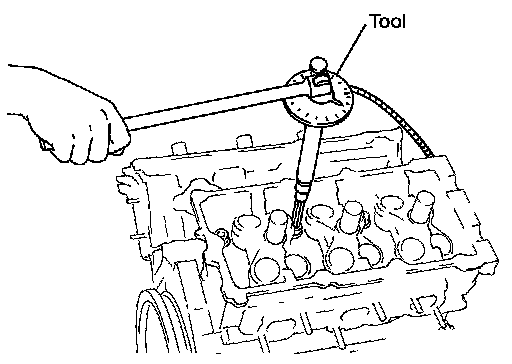

Measure the tightening angle using Tool.
