Exhaust Manifold

Exhaust Manifold

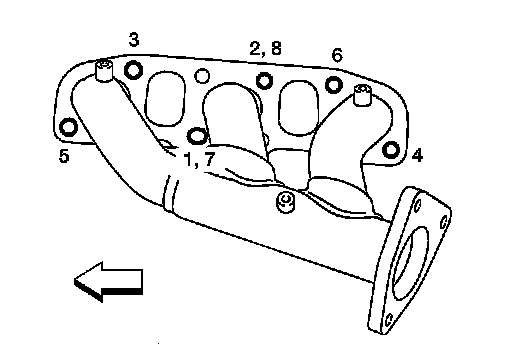

Install exhaust manifold and tighten nuts in numerical order as shown.

CAUTION: Use new exhaust manifold nuts for installation.

NOTE: Tighten nuts No. 1 and 2 in two steps. The numerical order No. 7 and 8 show second step.

- Arrow Indicates Front.
