IPDM E/R (Intelligent Power Distribution Module Engine Room)
IPDM E/R (Intelligent Power Distribution Module Engine Room)
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

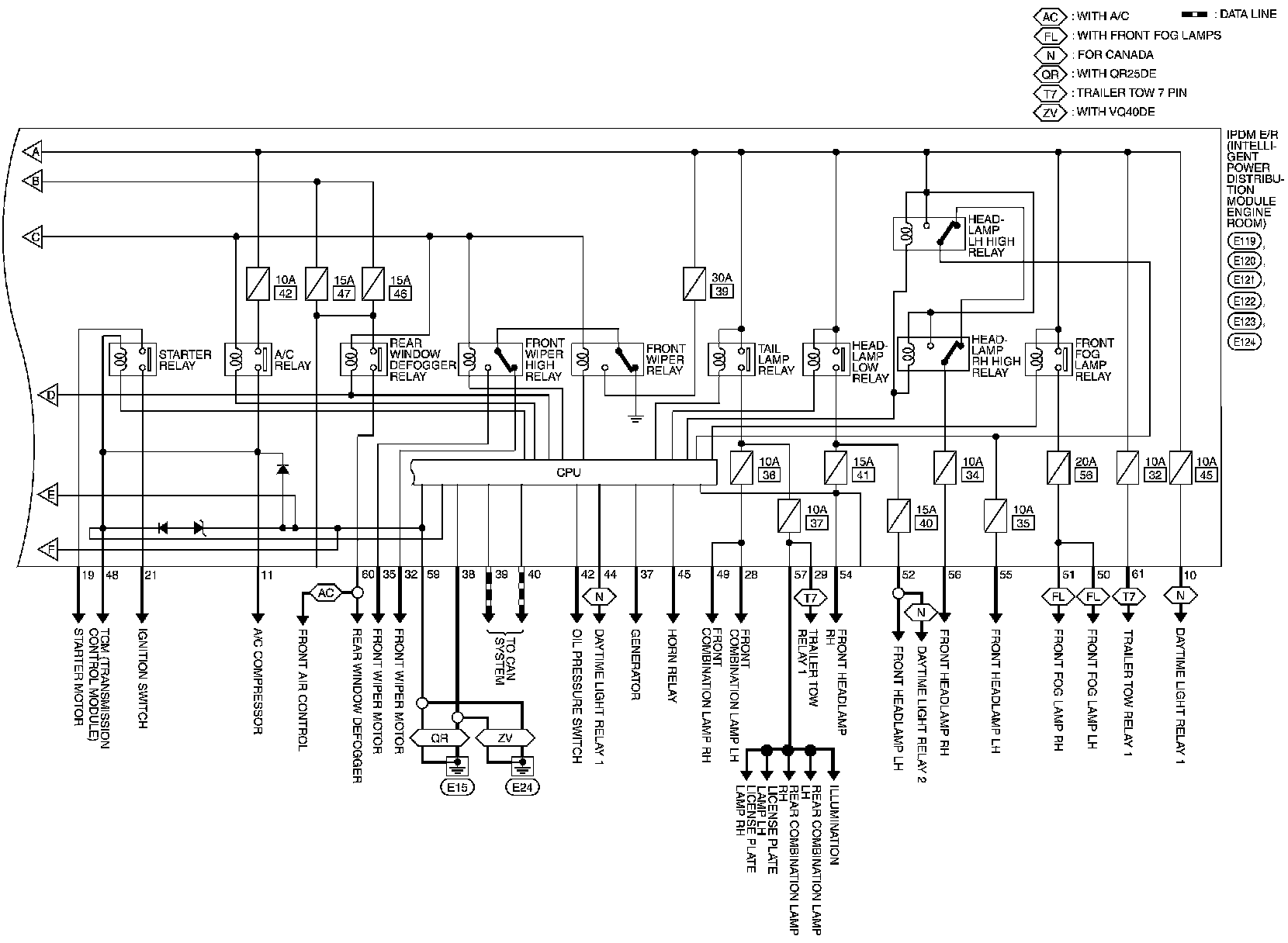

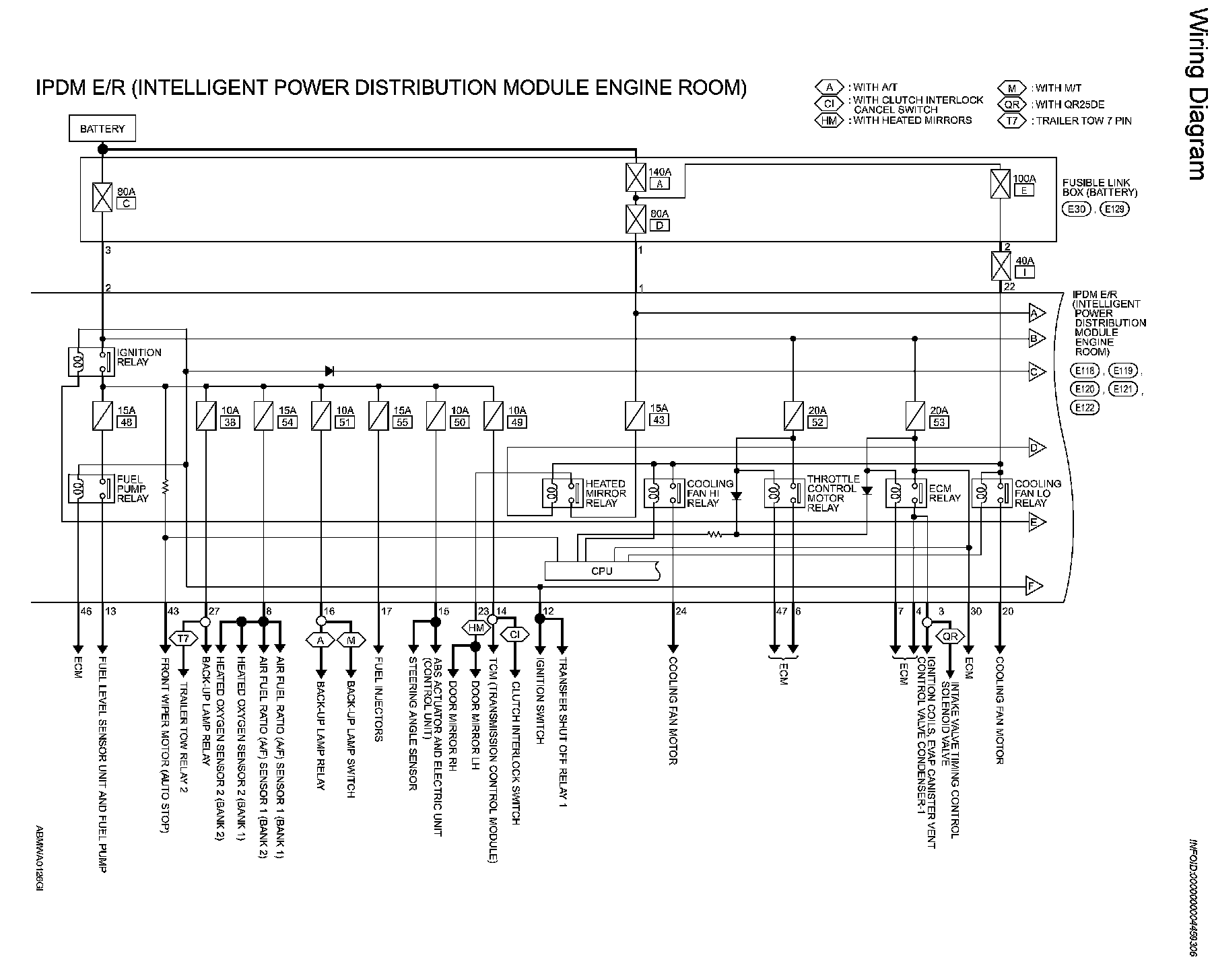

Wiring Diagram
