AUTO LIGHT SYSTEM
Wiring Diagram

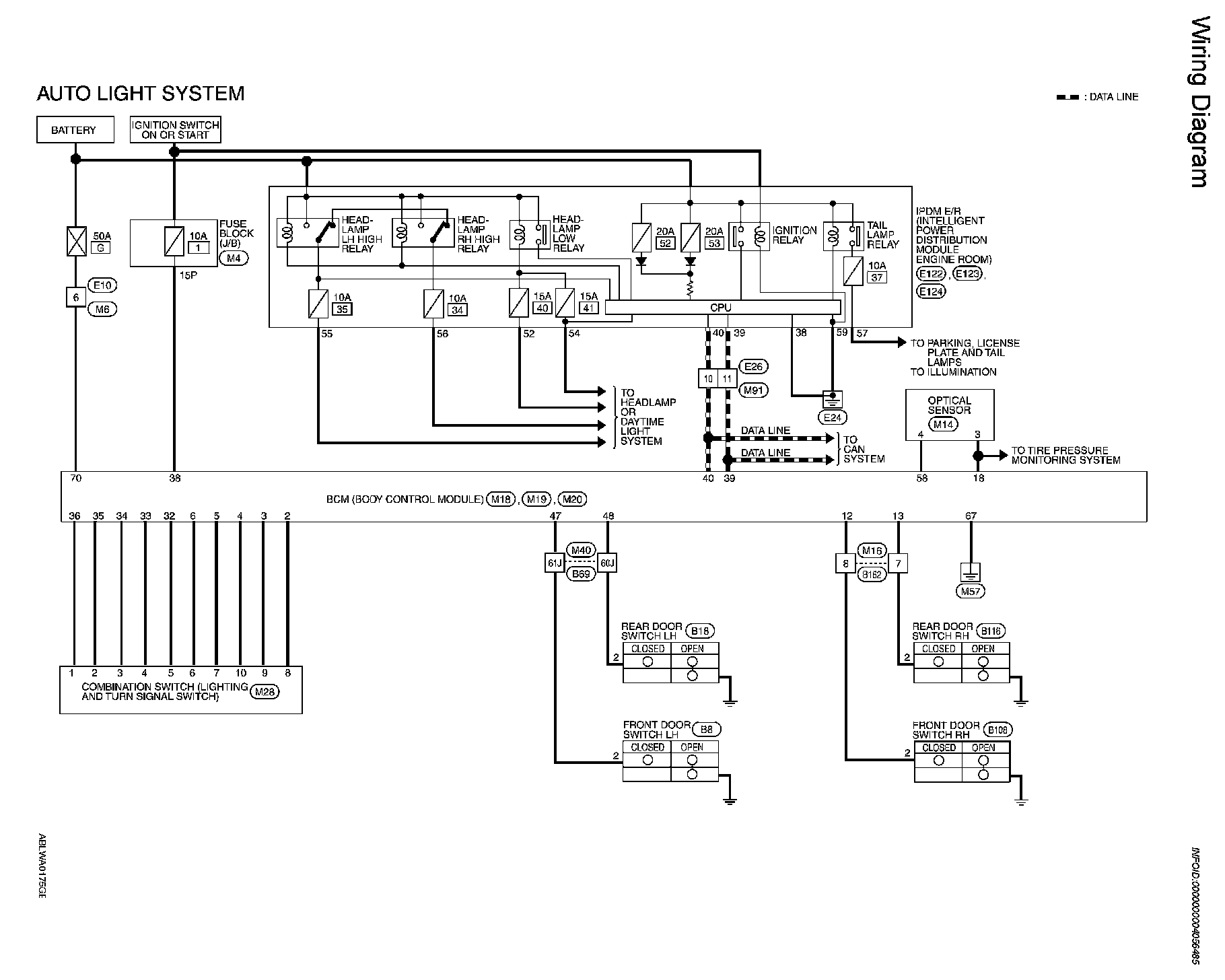

Auto Light System - Part 1:

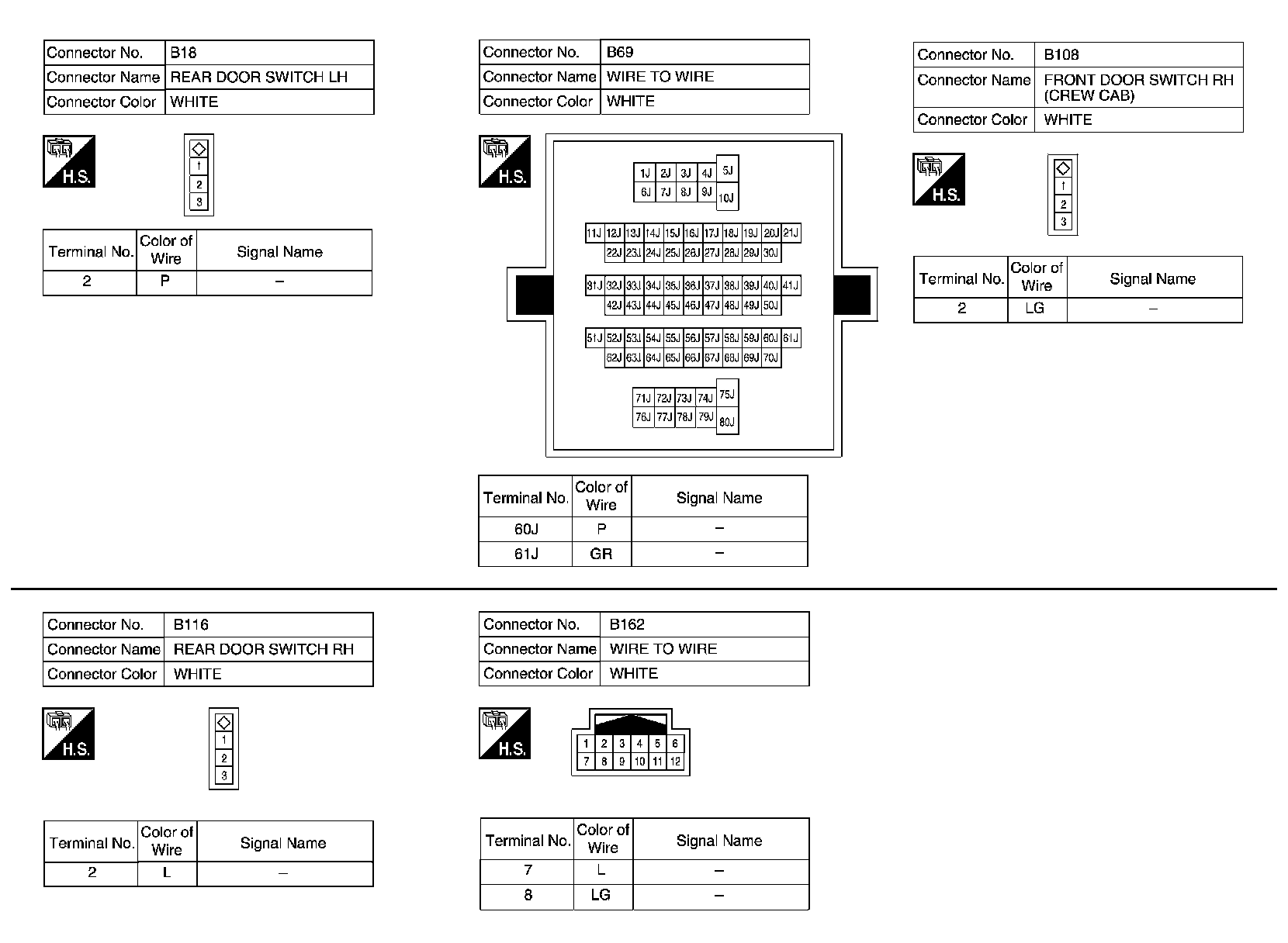

Auto Light System - Part 2:

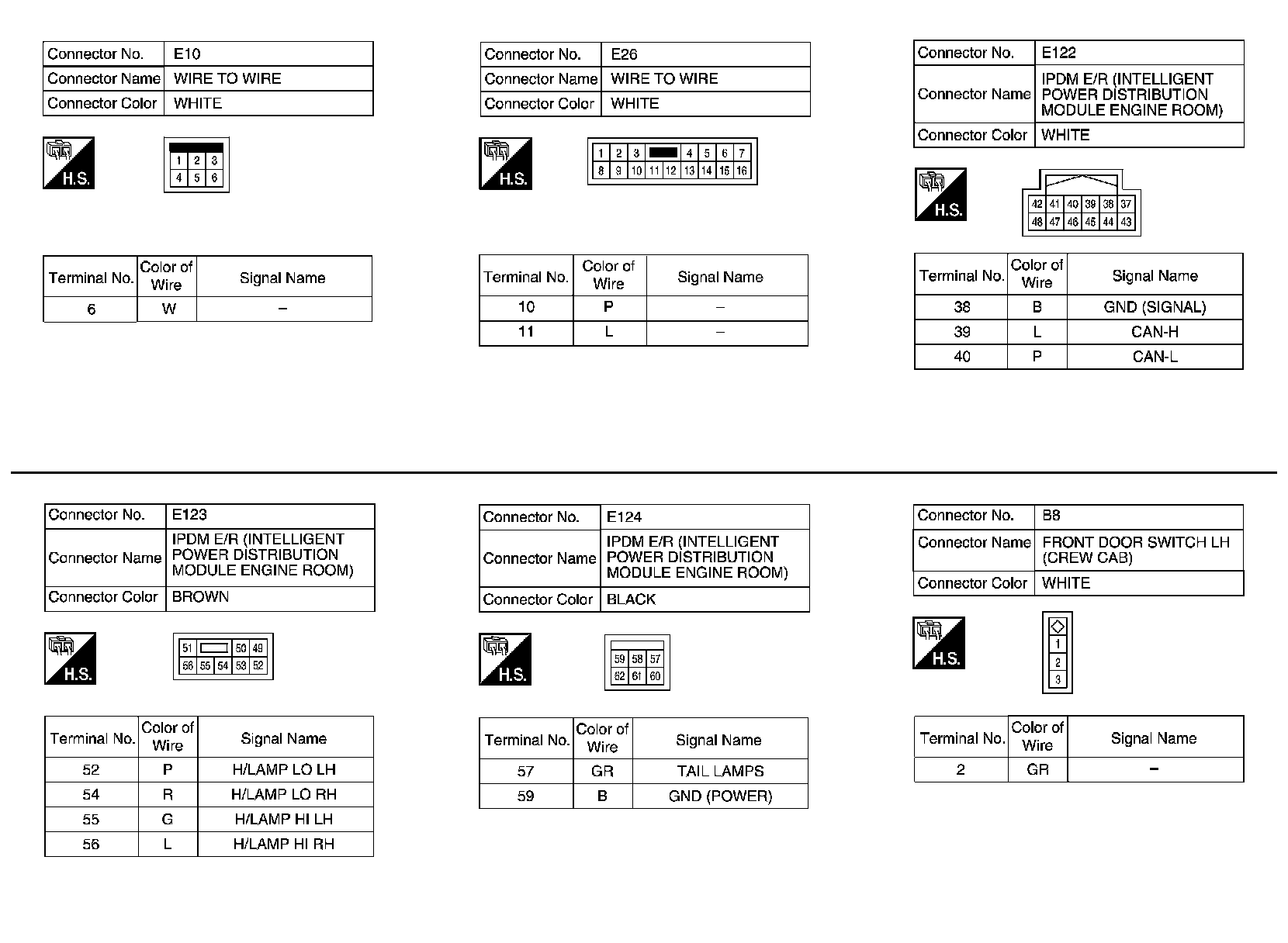

Auto Light System - Part 3:

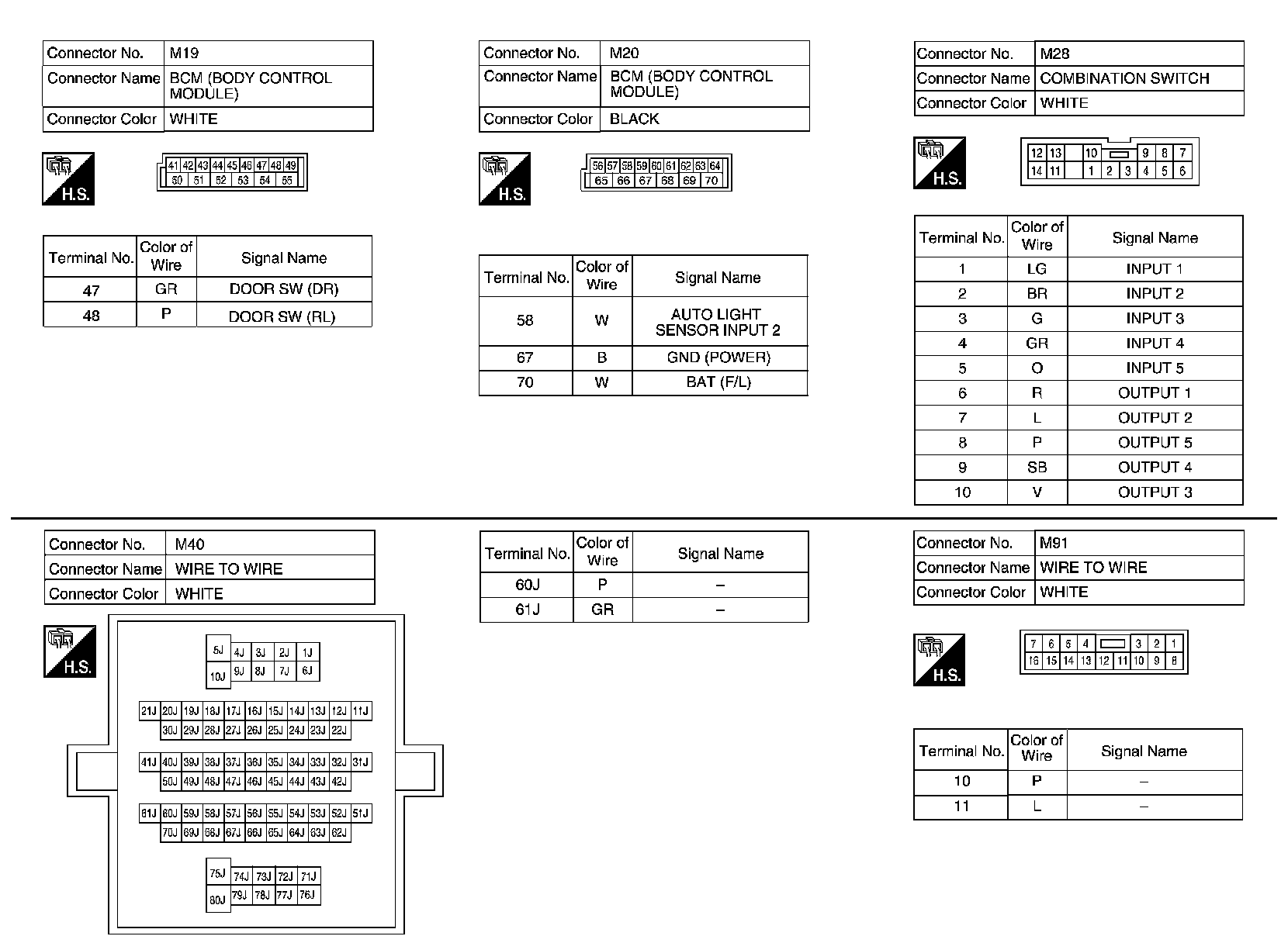

Auto Light System - Part 4:

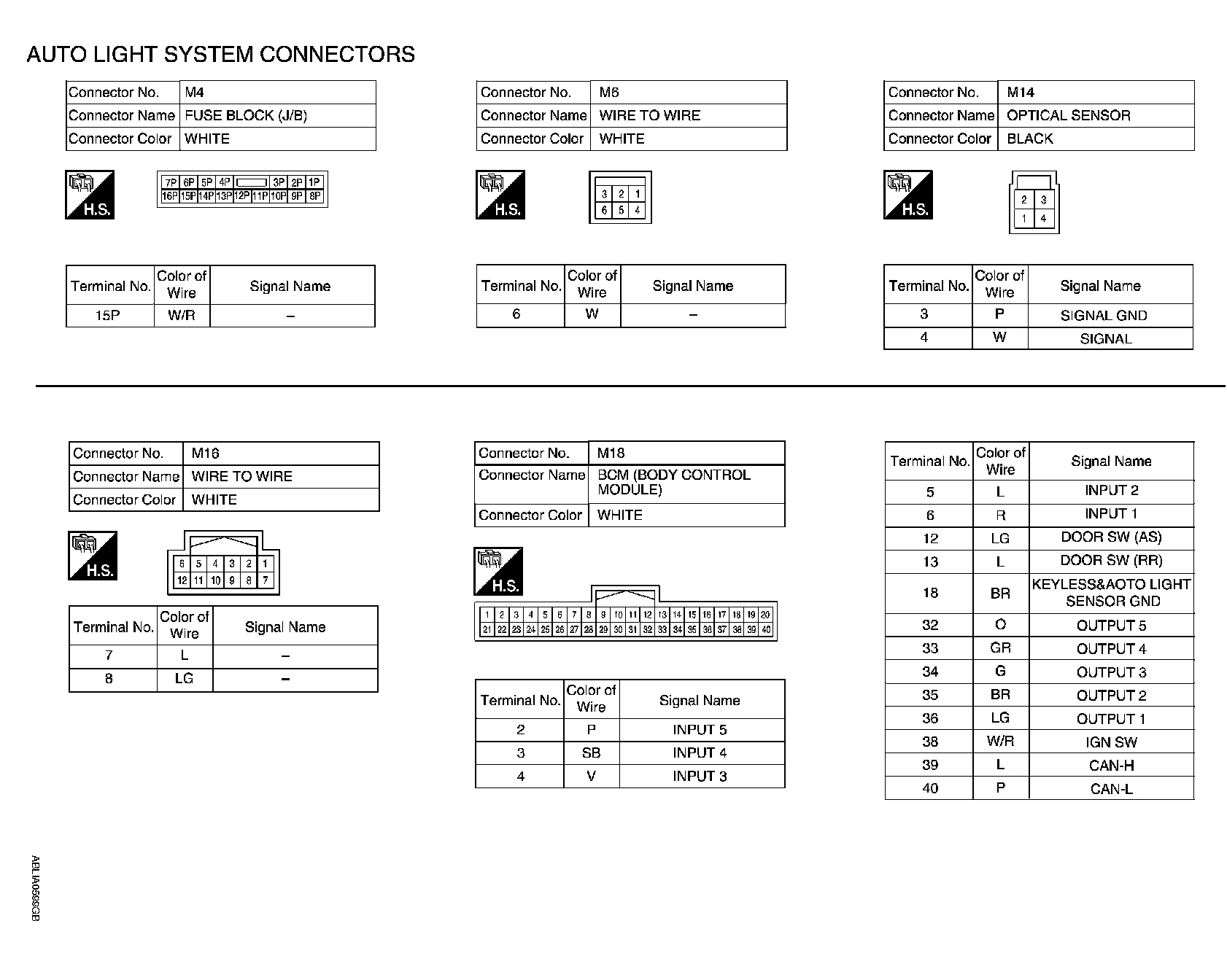

Auto Light System - Part 5:
