With Power Door Locks

CARGO LAMP CONTROL CIRCUIT


Description

Controls the cargo lamp relay coil (ground side) to turn the cargo lamp ON and OFF.




CARGO LAMP CONTROL CIRCUIT


Component Inspection


CARGO LAMP SWITCH
1.CHECK CARGO LAMP SWITCH





1. Turn ignition switch OFF.
2. Disconnect cargo lamp switch connector.

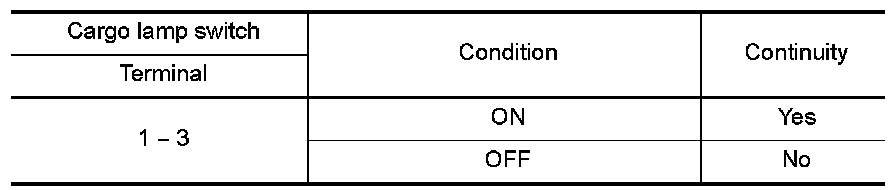

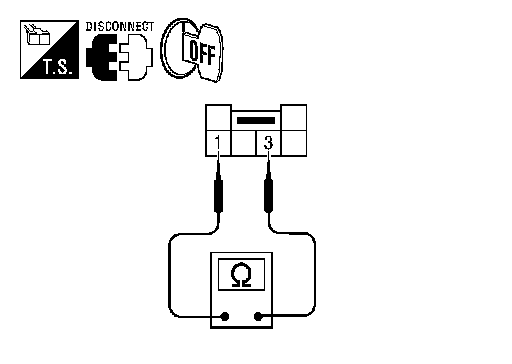

3. Check continuity between cargo lamp switch terminals.





Is the inspection result normal?
YES - Inspection End
NO - Replace cargo lamp switch.

CARGO LAMP RELAY
1.CHECK CARGO LAMP RELAY





1. Turn ignition switch OFF.
2. Disconnect cargo lamp relay connector.

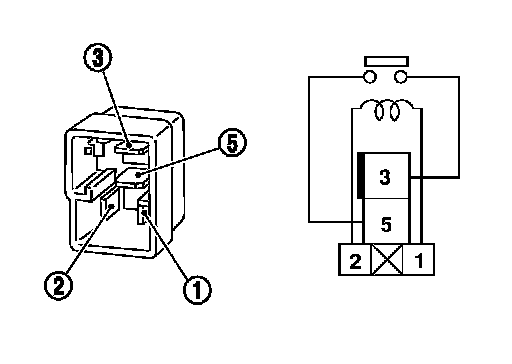

3. Supply power to terminal 2 and ground to terminal 1 of the cargo lamp relay.

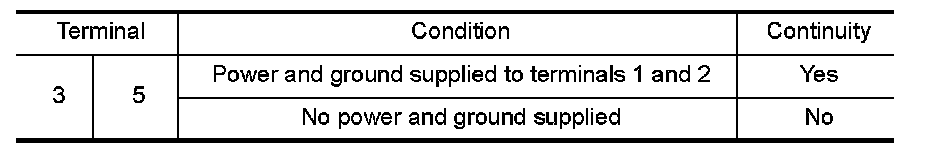

4. Check continuity between cargo lamp relay terminals 3 and 5.





Is the inspection result normal?
YES - Inspection End
NO - Replace cargo lamp relay.
