BCM (Body Control Module)
>>
Reference Value
>>
Exterior Lighting System
Exterior Lighting System
BCM (BODY CONTROL MODULE)
Reference Value

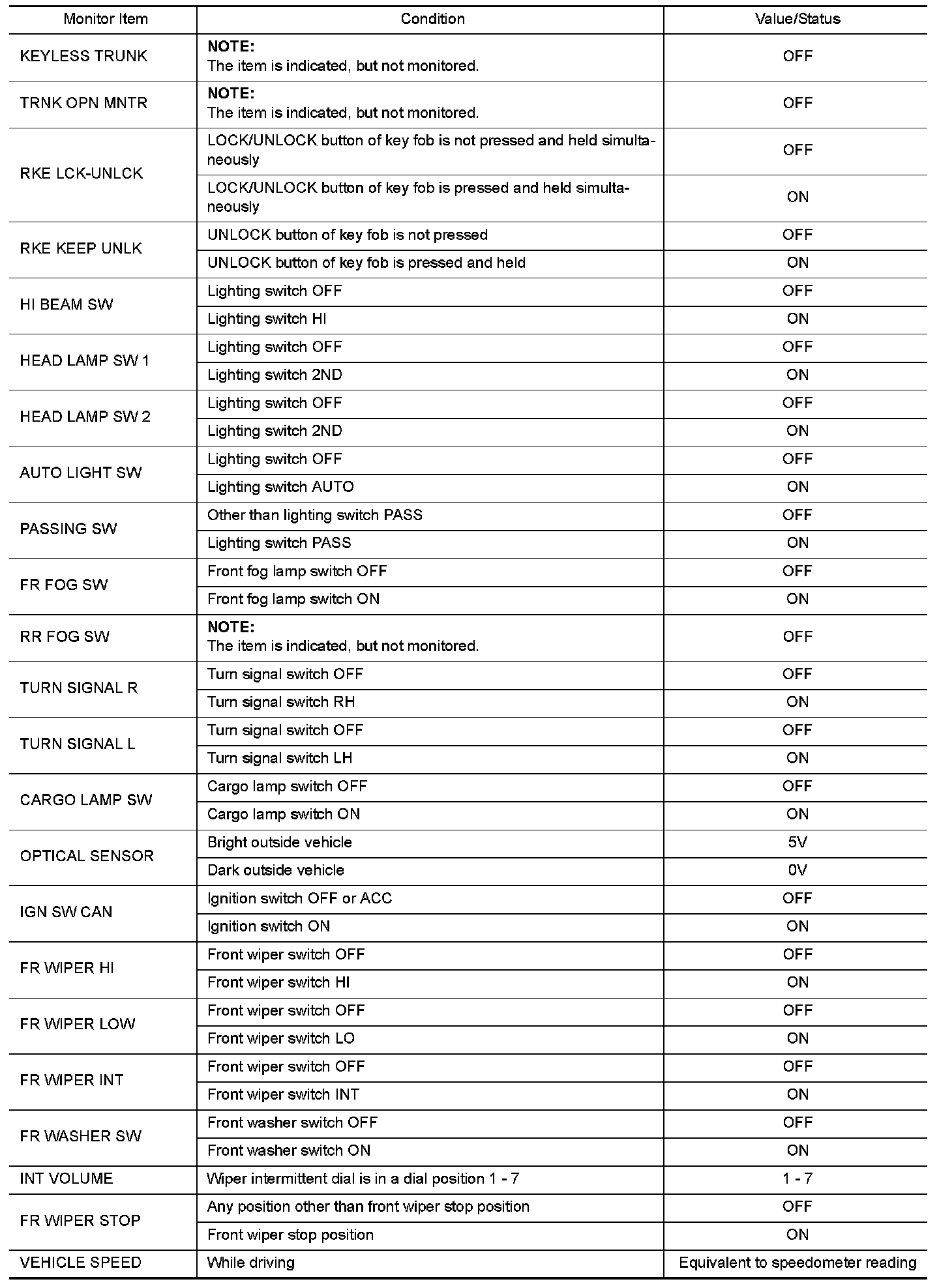

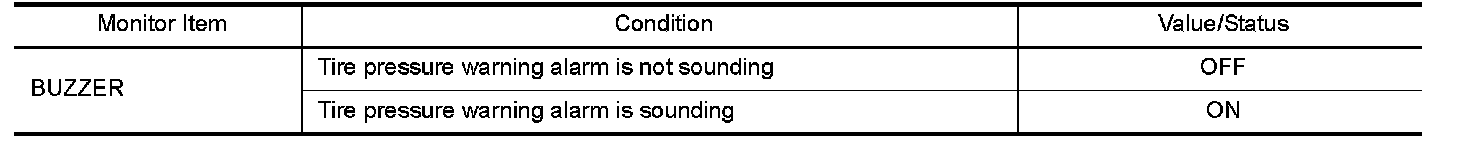

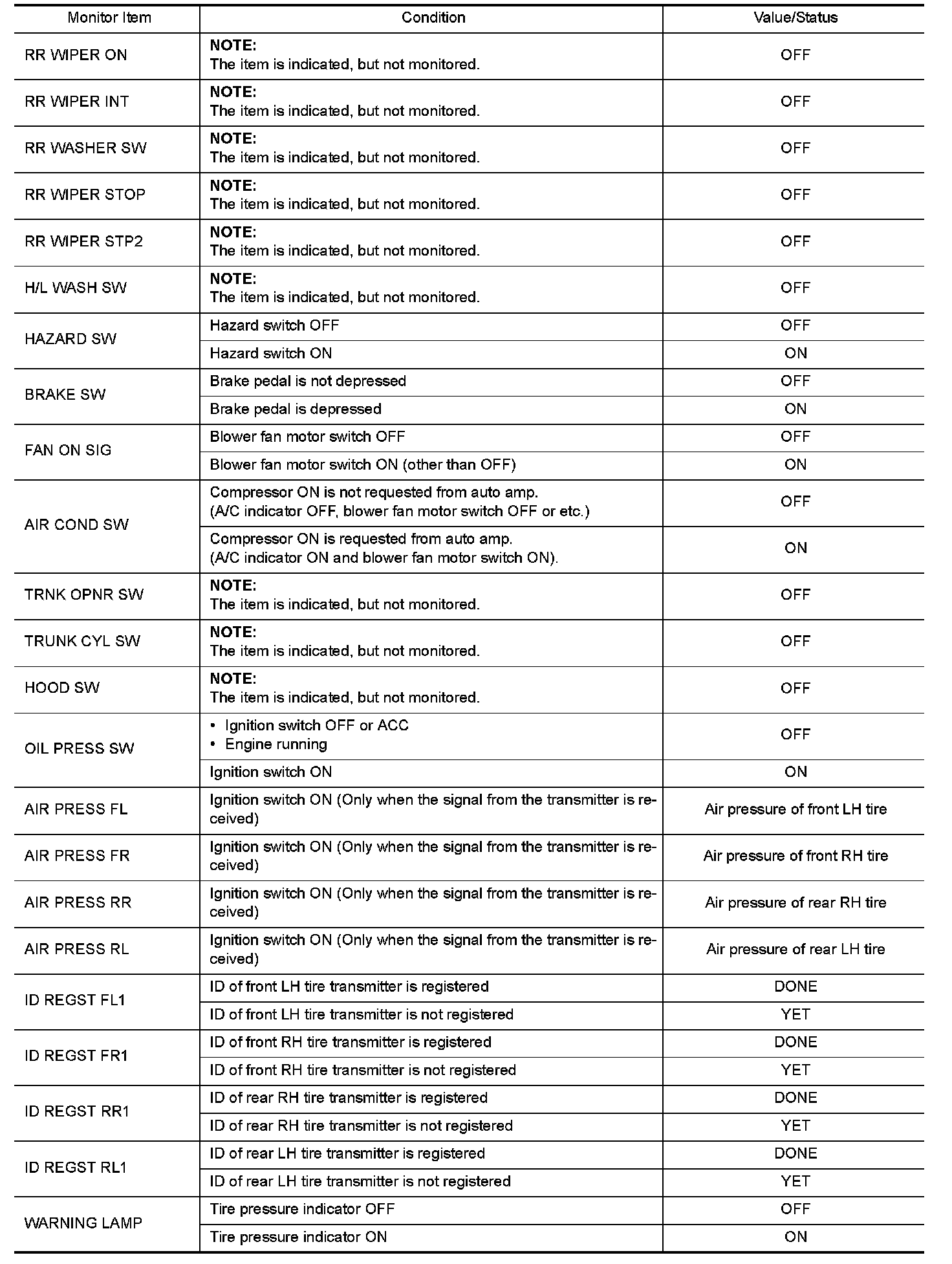

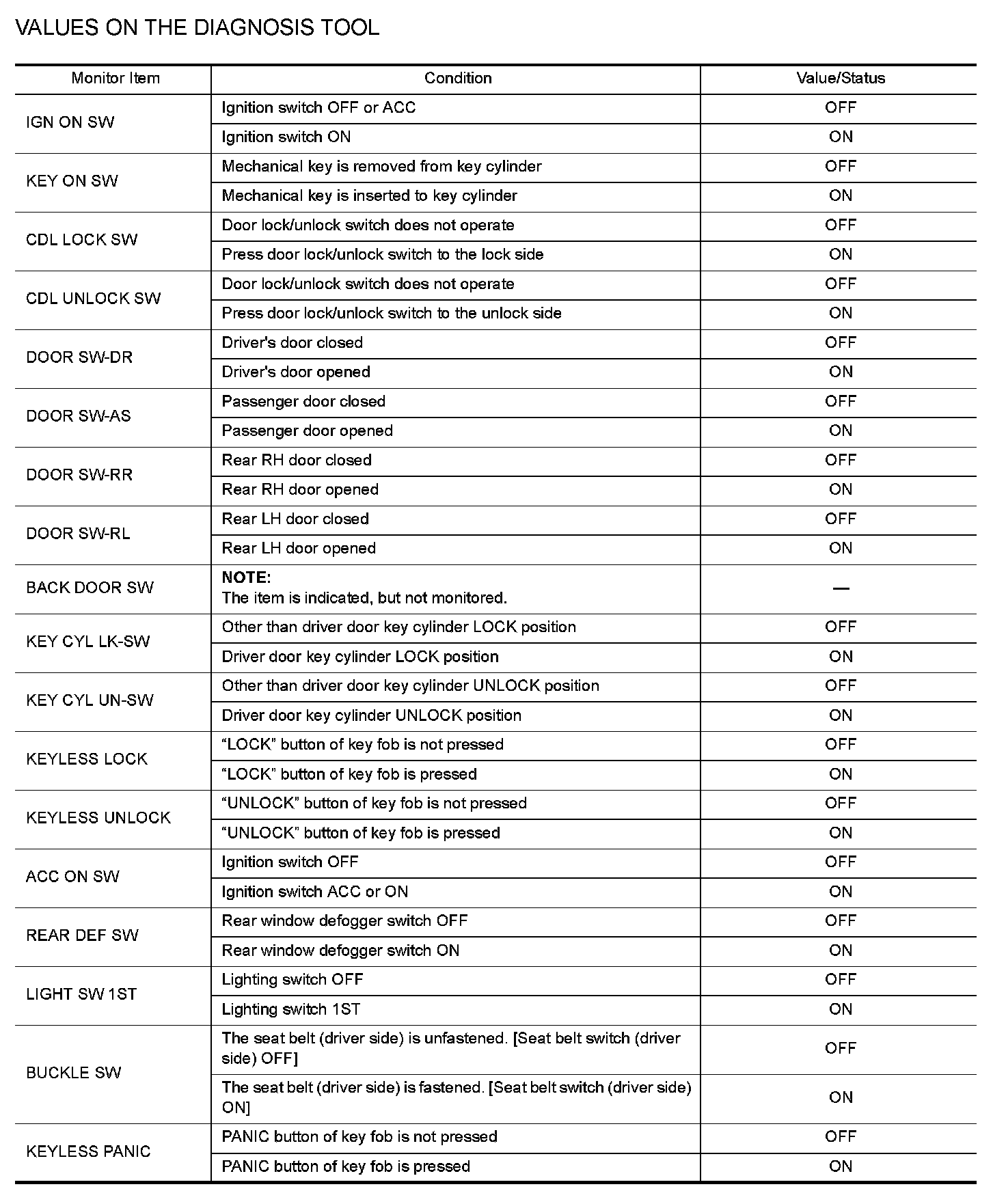

VALUES ON THE DIAGNOSIS TOOL
