Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2009
>>
Frontier 4WD V6-4.0L (VQ40DE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
BCM (Body Control Module)
>>
Reference Value
>>
Without Power Door Locks
Without Power Door Locks
BCM (BODY CONTROL MODULE)
Reference Value

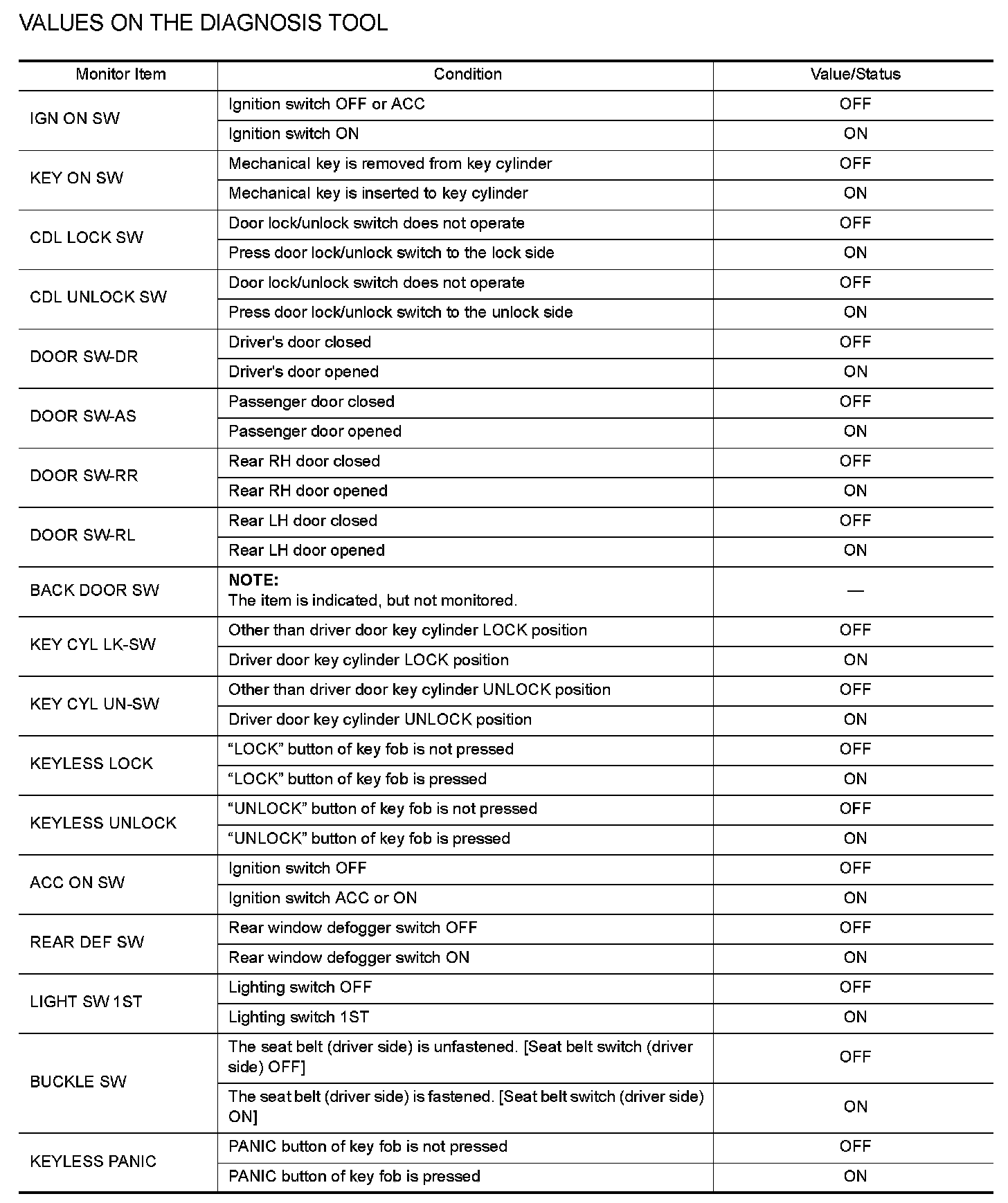

VALUES ON THE DIAGNOSIS TOOL
