Air Conditioning Cut Control
>>

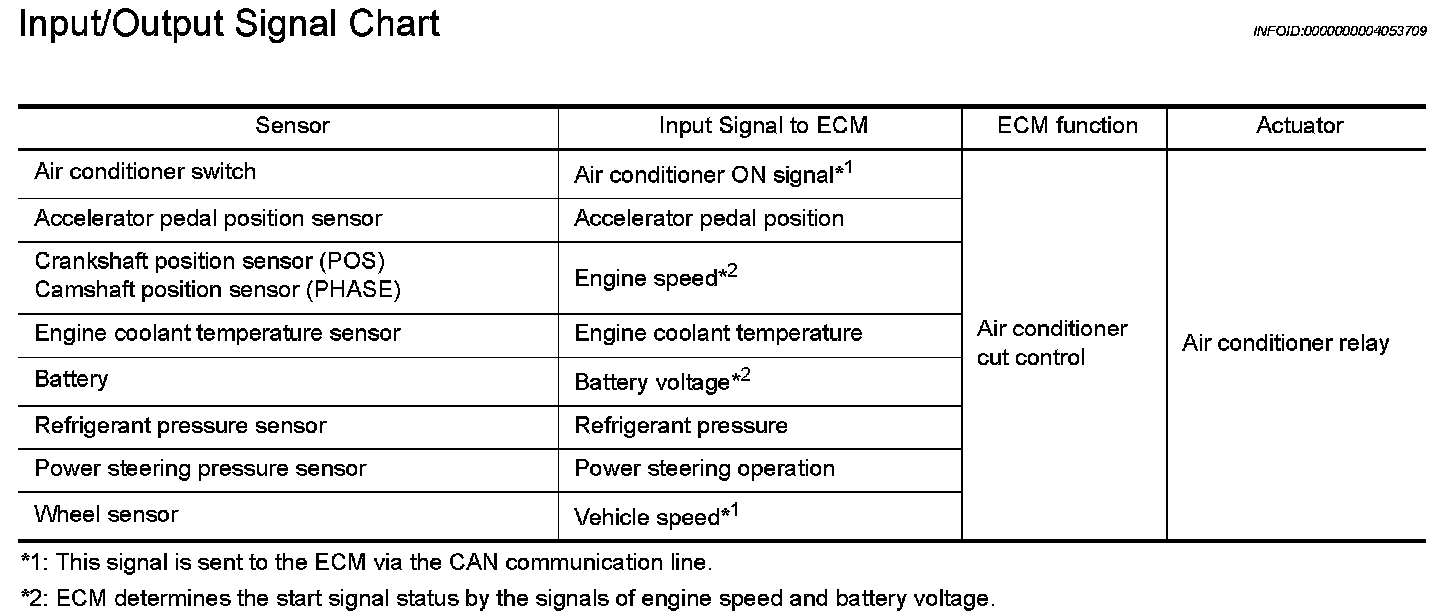

Input/Output Signal Chart
Input/Output Signal Chart
AIR CONDITIONING CUT CONTROL
Input/Output Signal Chart
