Evaporative Emissions System: Service and Repair

EVAP CANISTER


Removal and Installation


EVAP CANISTER

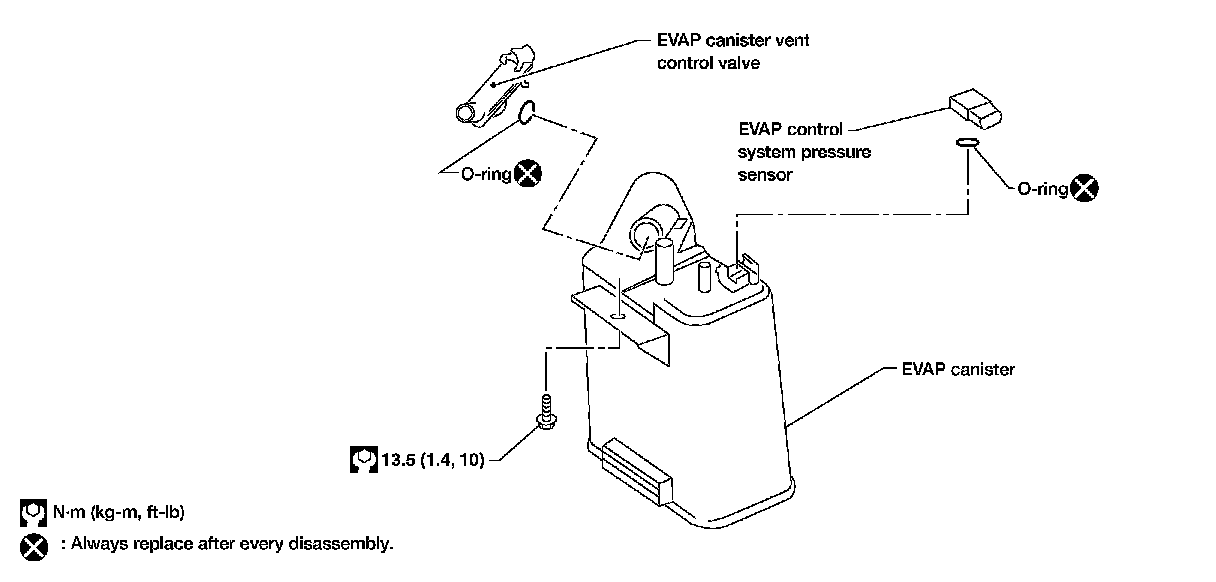

Tighten EVAP canister as shown in the figure.






EVAP CANISTER VENT CONTROL VALVE

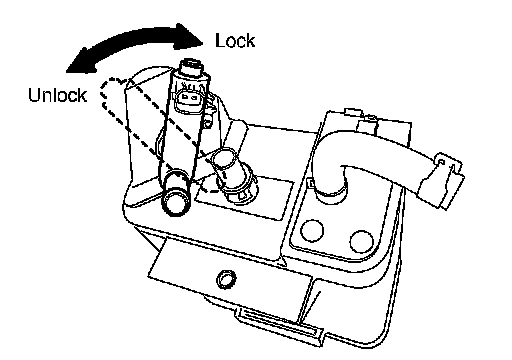

1. Turn EVAP canister vent control valve counterclockwise.





2. Remove the EVAP canister vent control valve.
Always replace O-ring with a new one.
