Wiper Switch: Service and Repair

WIPER and WASHER SWITCH


Wiper and Washer Switch


REMOVAL AND INSTALLATION

Removal
1. Remove instrument lower cover LH. Refer to Exploded View.
2. Remove column cover lower and column cover upper.
3. Disconnect wiper washer switch connector.

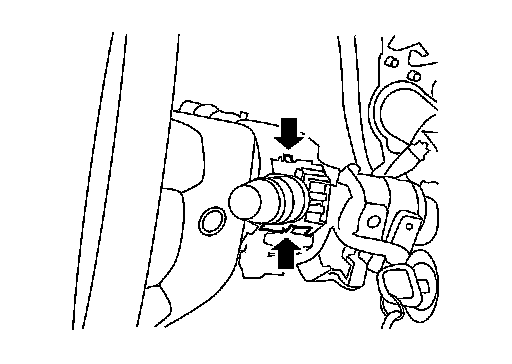

4. Pinch tabs at wiper and washer switch base and slide switch away from steering column.

Installation
Installation is in the reverse order of removal.
