Intake Manifold

Intake Manifold

If stud bolts were removed from cylinder head, install them and tighten to the specified torque.

Intake manifold studs : 11.0 N.m (1.1 kg-m, 8 ft-lb)

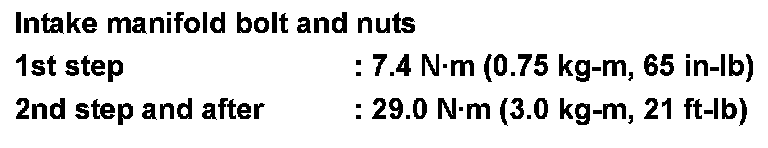

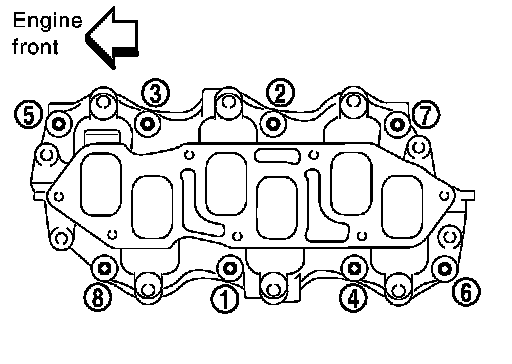

Tighten all nuts and bolts to the specified torque in two or more steps in numerical order as shown.
