Component Inspection

WASHER SWITCH


Component Inspection

1. CHECK FRONT WASHER SWITCH





1. Turn the ignition switch OFF.
2. Disconnect combination switch.

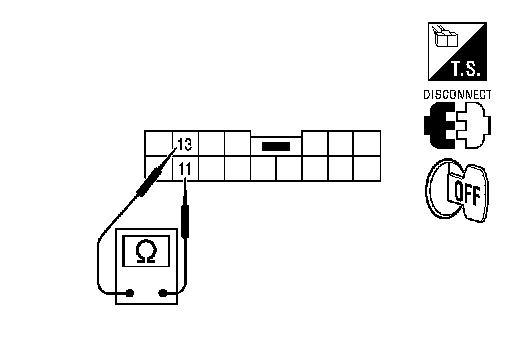

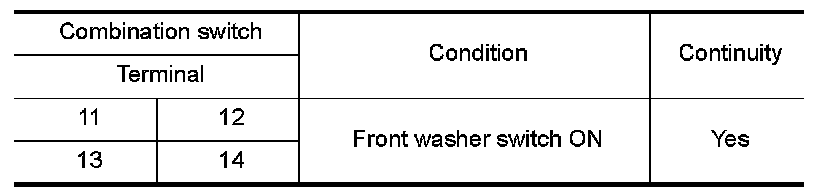

3. Check continuity between the combination switch terminals.

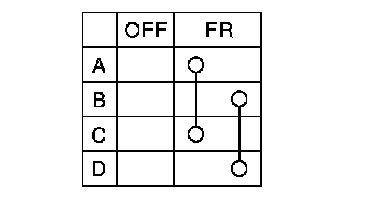

A: Terminal 14
B: Terminal 12
C: Terminal 13
D: Terminal 11

Does continuity exist?
YES - Wiper and washer switch is normal.
NO - Replace combination switch. Refer to Service and Repair.
