IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>
Physical Values
Physical Values
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Physical Values

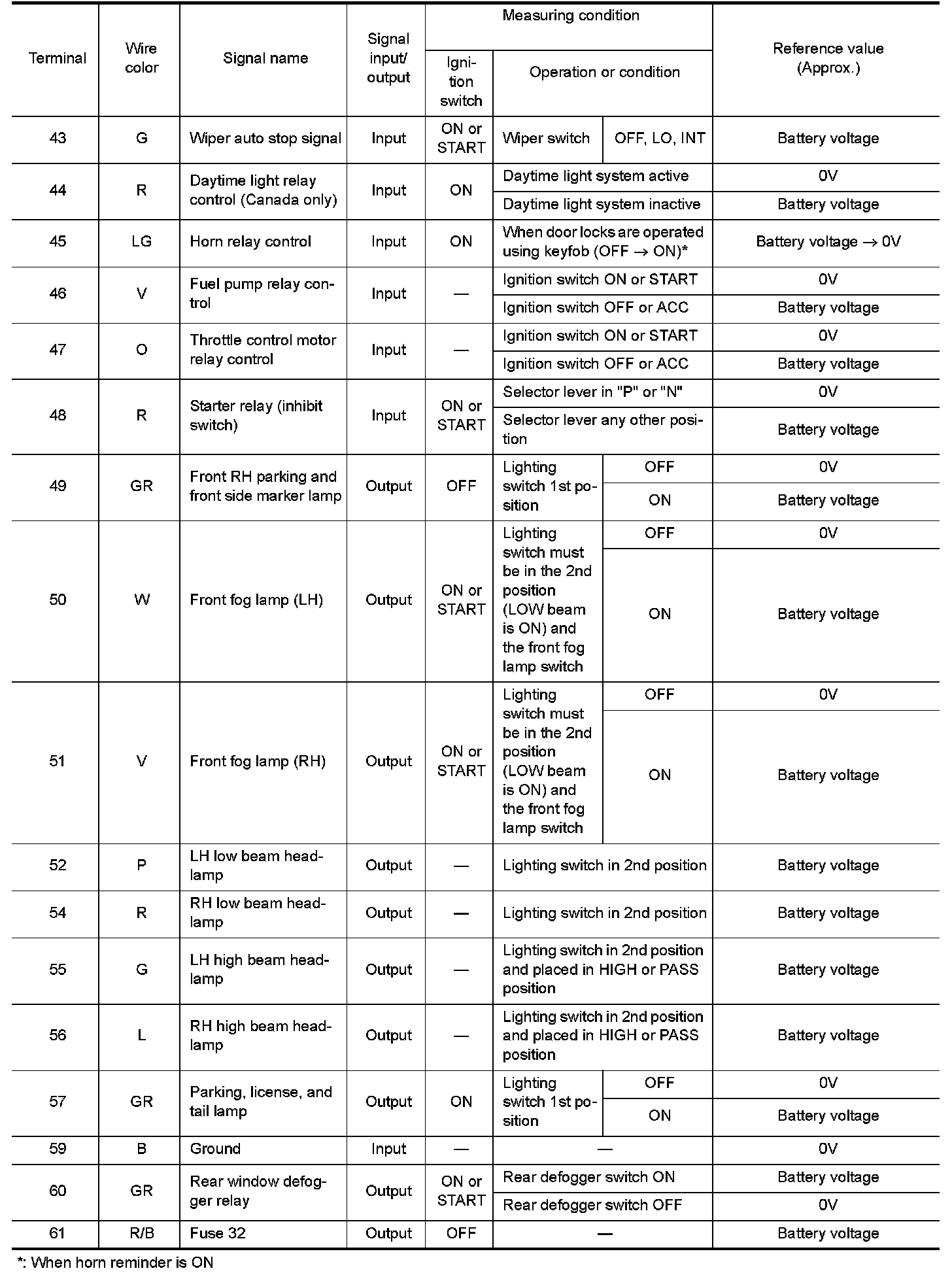

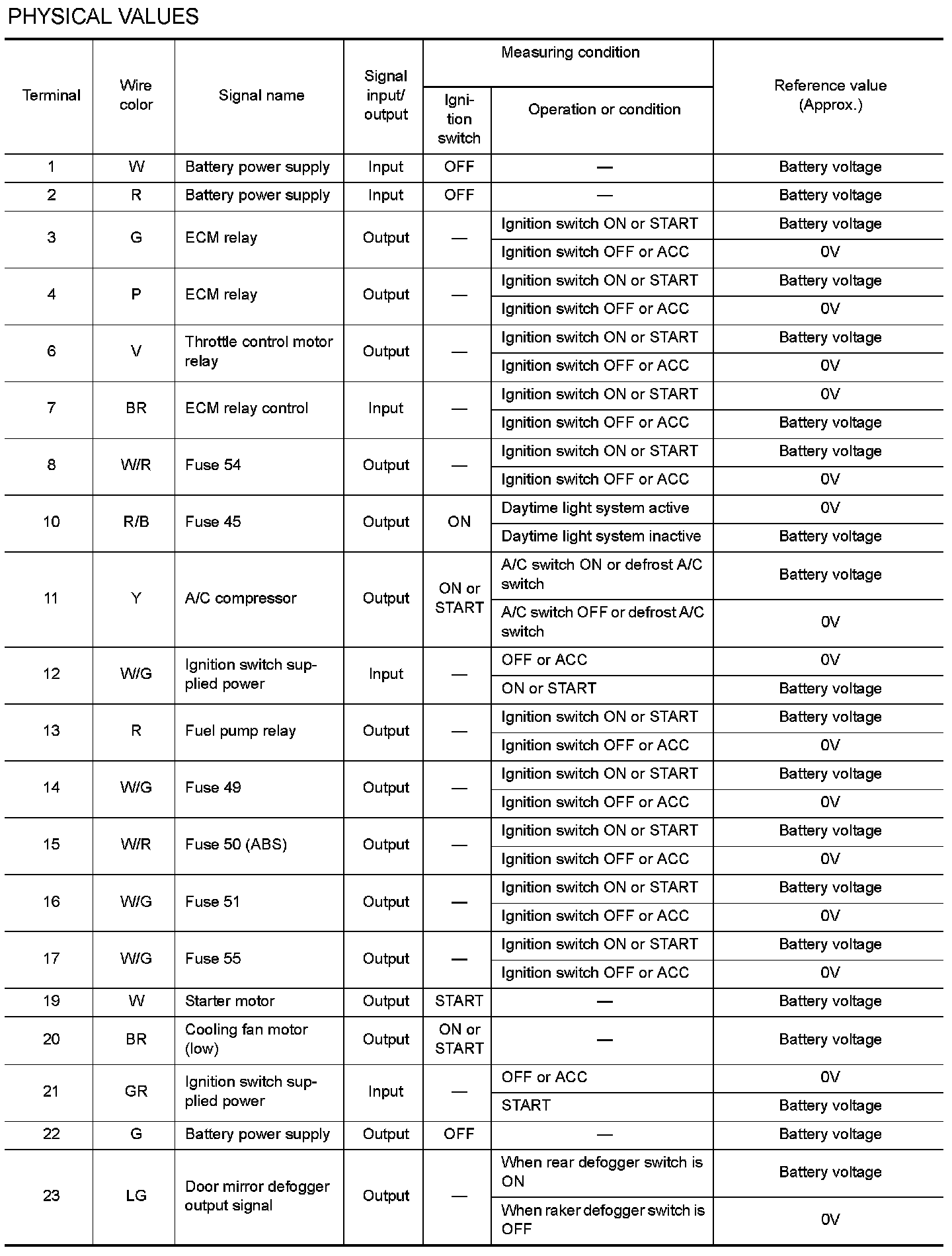

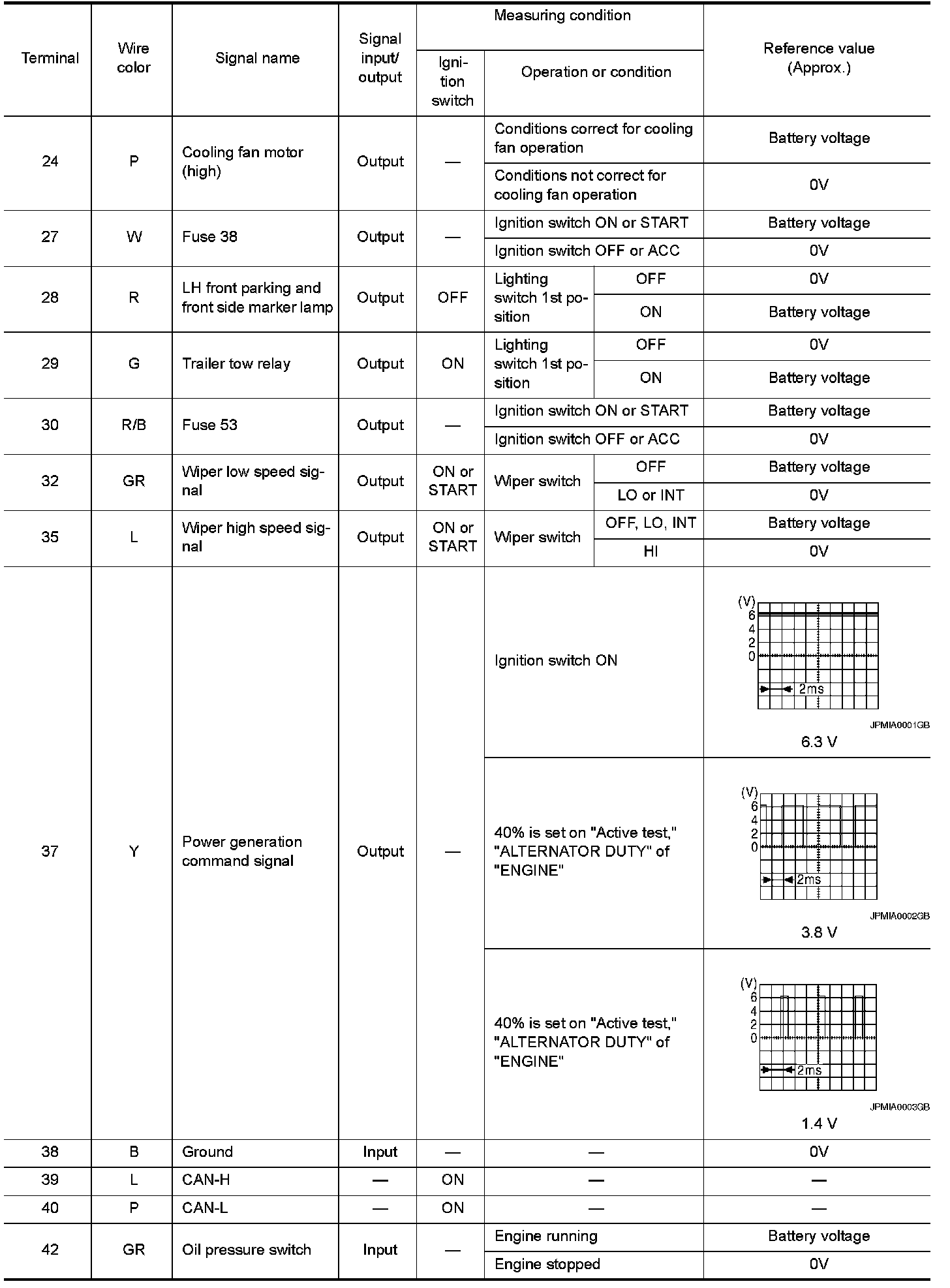

PHYSICAL VALUES
