WIPER AND WASHER SYSTEM SYMPTOMS
Symptom Table
CAUTION:
Perform the self-diagnosis with CONSULT-III before performing the diagnosis by symptom. Perform the diagnosis by DTC if DTC is detected.

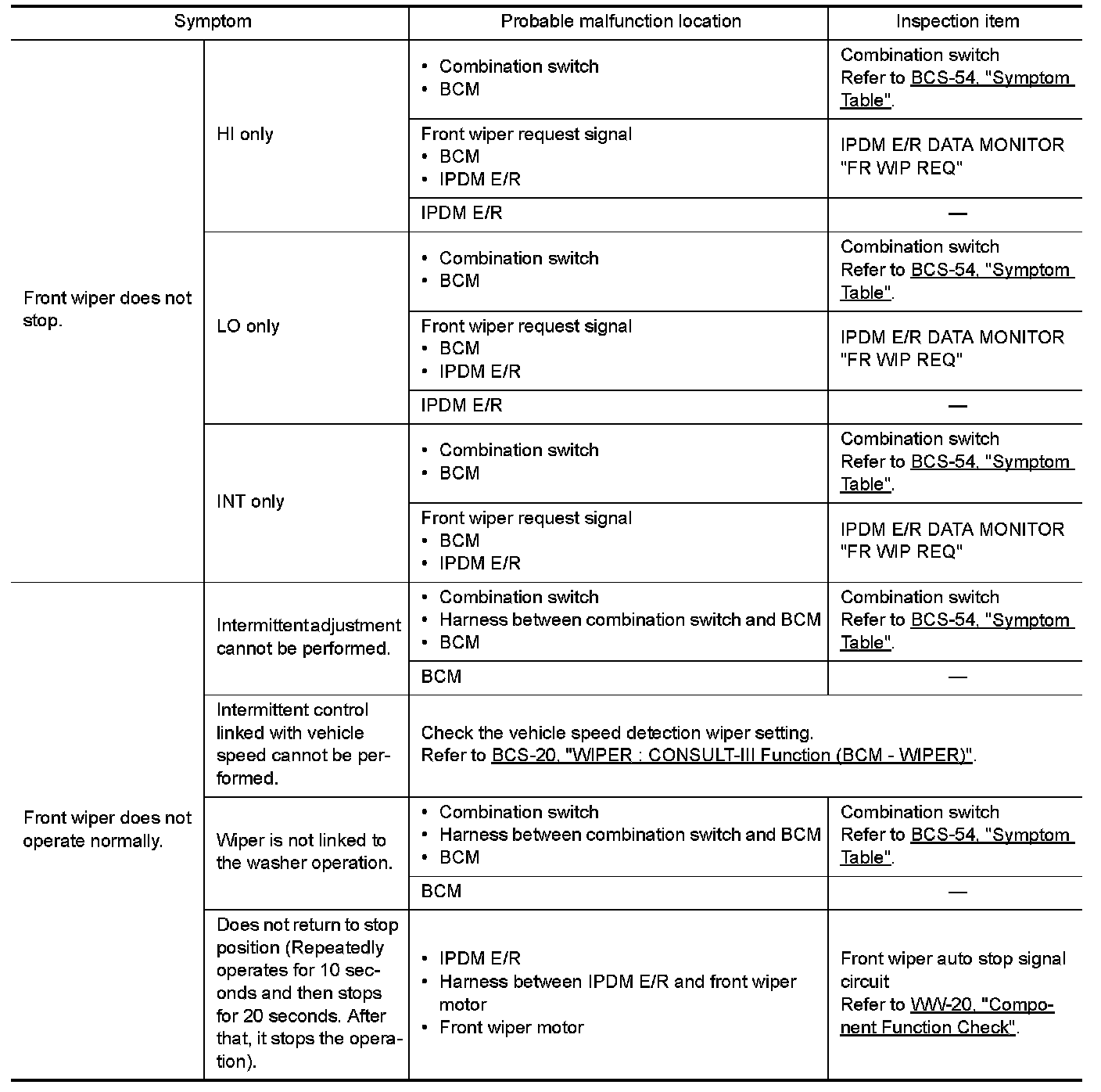

Symptom Table (Part 1):

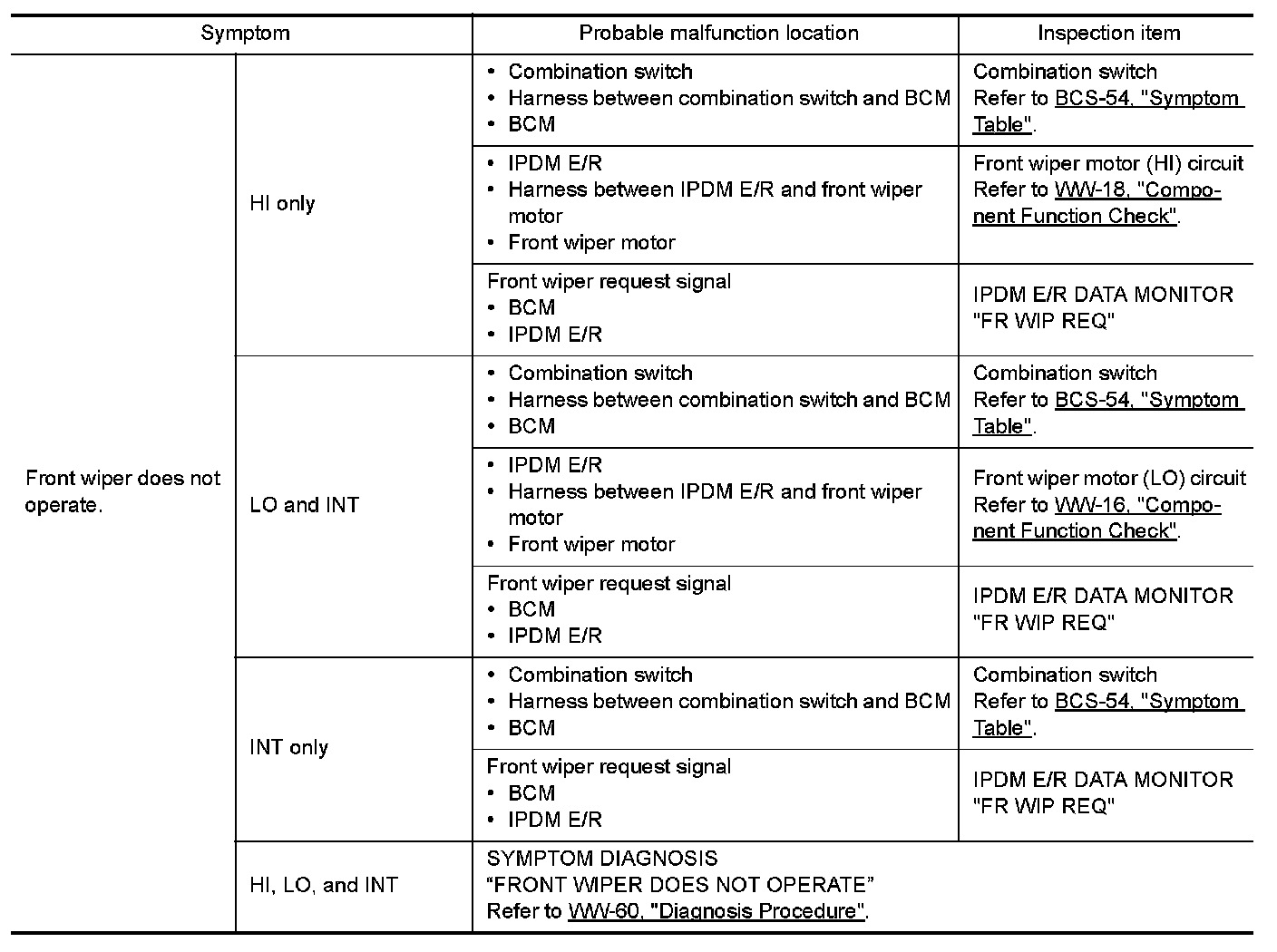

Symptom Table (Part 2):
