B1137

B1134 - B1137 SIDE AIRBAG MODULE LH





Description

DTC B1134 � B1137 FRONT LH SIDE AIR BAG MODULE
The front LH side air bag module is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor for opens and shorts in detected lines to the front LH side air bag module.

PART LOCATION
Refer to Locations.




DTC Logic

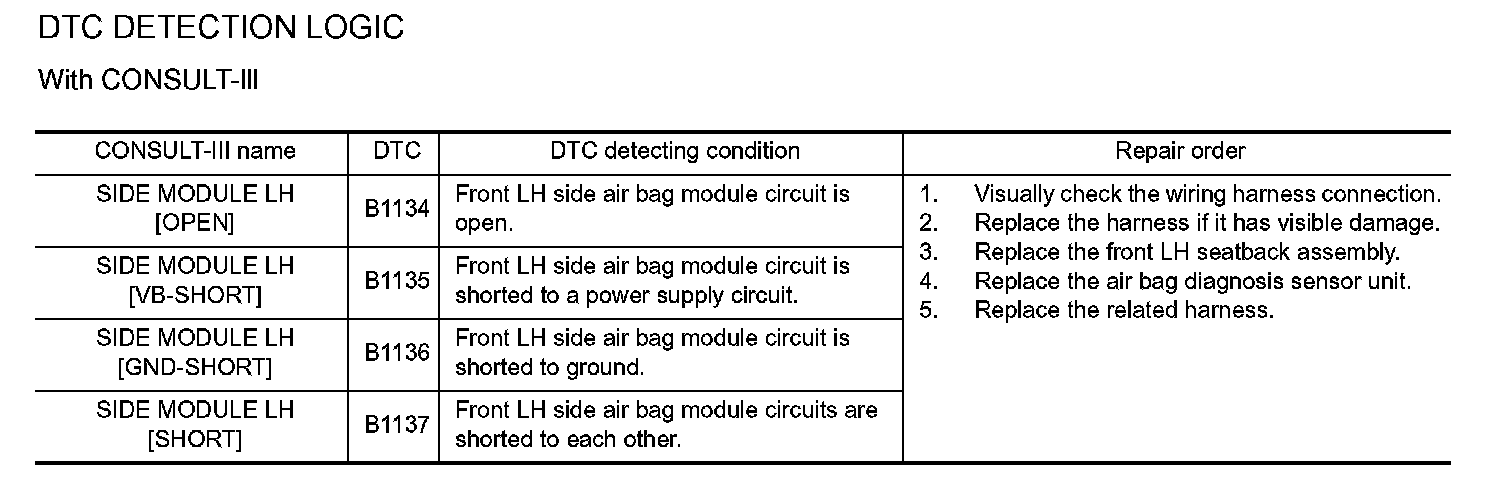

DTC DETECTION LOGIC

With CONSULT-III

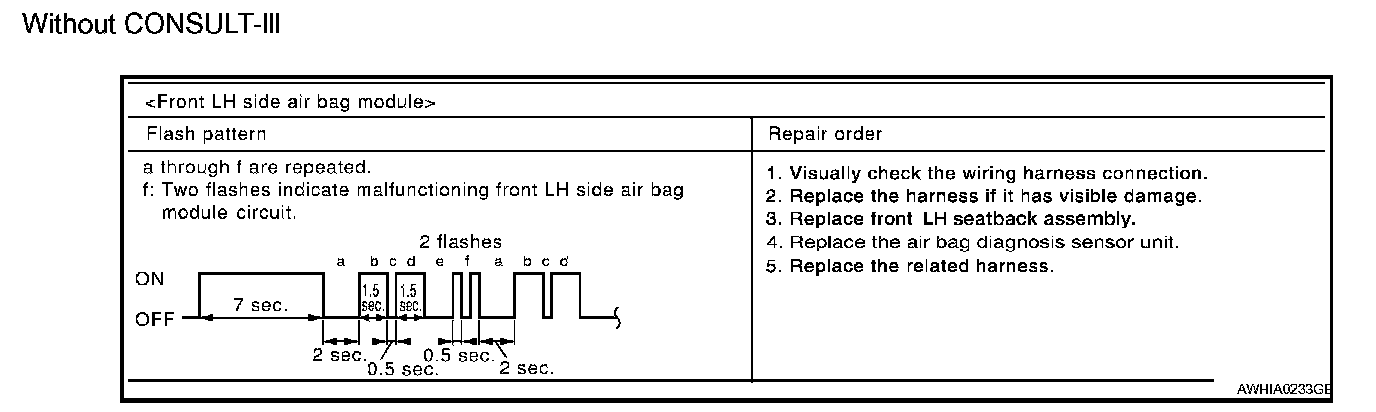

Without CONSULT-III






DTC CONFIRMATION PROCEDURE (With CONSULT-III)
1. INSPECTION START
Turn ignition switch ON.
GO TO 2.
2. CHECK SELF-DIAG RESULT
Check for the DTC on CONSULT-III.
Is the DTC detected?
YES - Refer to "Diagnosis Procedure (Component Diagnosis)".
NO - Inspection End.

DTC CONFIRMATION PROCEDURE (Without CONSULT-III)

NOTE:
SRS will not enter diagnosis mode if no malfunction is detected in User mode.
1. IGNITION SWITCH
Turn ignition switch ON.
GO TO 2
2. IGNITION SWITCH
After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.
GO TO 3
3. WAIT TIME
Wait more than 3 seconds.
GO TO 4
4. REPEAT STEPS
Repeat steps 1 to 3 twice.
GO TO 5
5. IGNITION SWITCH
Turn ignition switch ON.
GO TO 6
6. DIAGNOSTIC MODE
SRS system is now in Diagnostic mode and AIR BAG warning lamp flashes. Refer to Trouble Diagnosis Without CONSULT-III.
END




Diagnosis Procedure (Component Diagnosis)
Recheck SRS after each replacement.
1. HARNESS CONNECTOR
Is there any visible damage to the connector?
YES or NO
YES - Replace the harness.
NO - GO TO 2
2. WIRING HARNESS
Is there any visible damage to the harness?
YES or NO
YES - Replace the harness.
NO - GO TO 3
3. FRONT LH SIDE AIR BAG MODULE
Replace the front LH seat back assembly. Refer to With Climate Controlled Seats (with climate controlled seats) or W/O Climate Controlled Seats (without climate controlled seats).
GO TO 4
4. AIR BAG DIAGNOSIS SENSOR UNIT
Replace the air bag diagnosis sensor unit. Refer to Removal And Installation.
GO TO 5
5. RELATED HARNESS
Replace the related harness.
END
