B2116

B2116 TILT MOTOR





Description
- The tilt motor is installed to the steering column assembly.
- The tilt motor is activated with the automatic drive positioner control unit.
- The steering column is tilted up/down by changing the rotation direction tilt motor.




DTC Logic

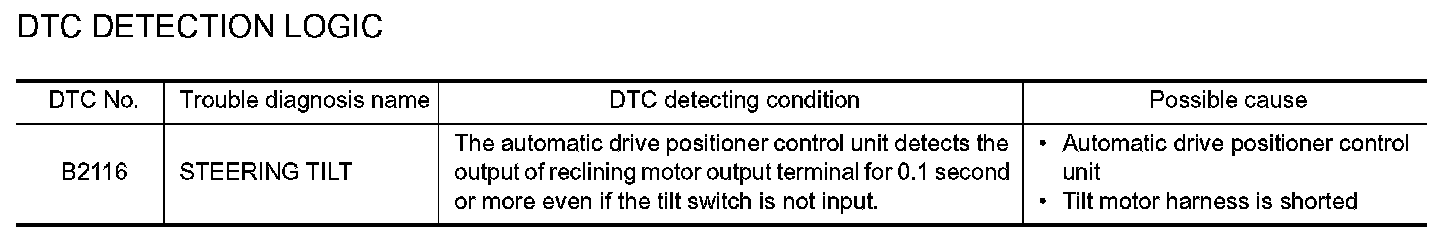

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1. STEP 1
Turn ignition switch ON.
GO TO 2
2. STEP 2
Check "Self diagnostic result" with CONSULT-III.
Is the DTC detected?
YES - Perform diagnosis procedure. Refer to "Diagnosis Procedure".
NO - Inspection End.




Diagnosis Procedure
1. PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Check "Self diagnostic result" with CONSULT-III.
3. Erase the DTC.
4. Perform DTC confirmation procedure. Refer to "DTC Logic".
Is the DTC displayed again?
YES - GO TO 2
NO - Check intermittent incident. Refer to Intermittent Incident.
2. CHECK COMPONENTS
Refer to Component Function Check.
Inspection End.
