C1110, C1153, C1170 ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)





DTC Logic

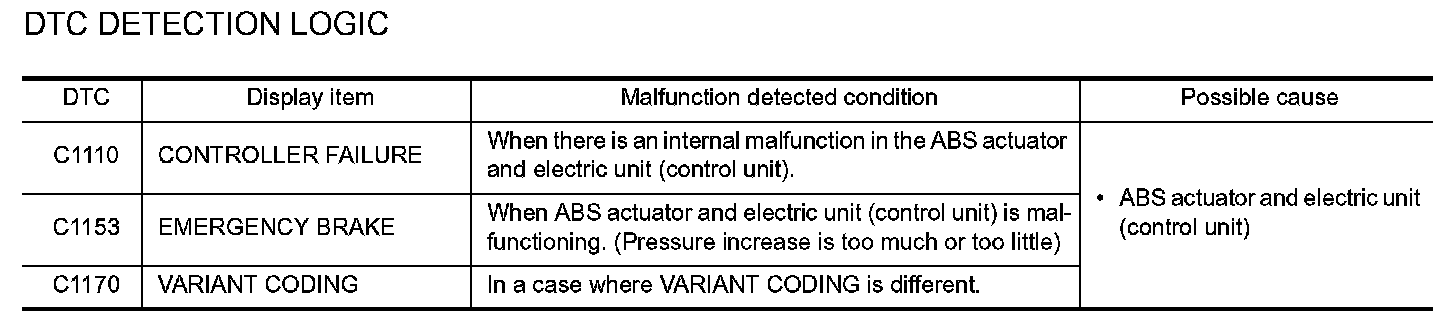

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS

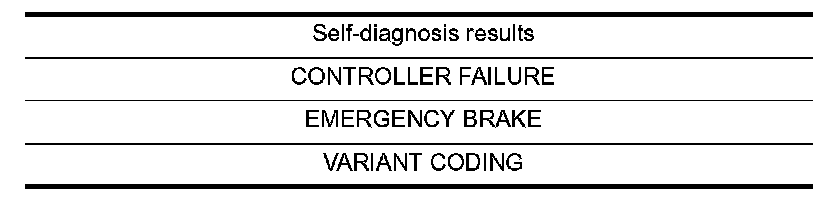

Check the self-diagnosis results.





Is above displayed on the self-diagnosis display?
YES - Proceed to diagnosis procedure. Refer to "Diagnosis Procedure".
NO - Inspection End




Diagnosis Procedure
1. REPLACE ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

CAUTION:
Replace ABS actuator and electric unit (control unit) when self-diagnostic result shows items other than that applicable.
Replace ABS actuator and electric unit (control unit).




Special Repair Requirement
1. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit). Refer to Special Repair Requirement.
END
