C1130

C1130, C1131, C1132, C1133, C1136 ENGINE SIGNAL





Description
ABS actuator and electric unit (control unit) and ECM exchange the engine signal with CAN communication line.




DTC Logic

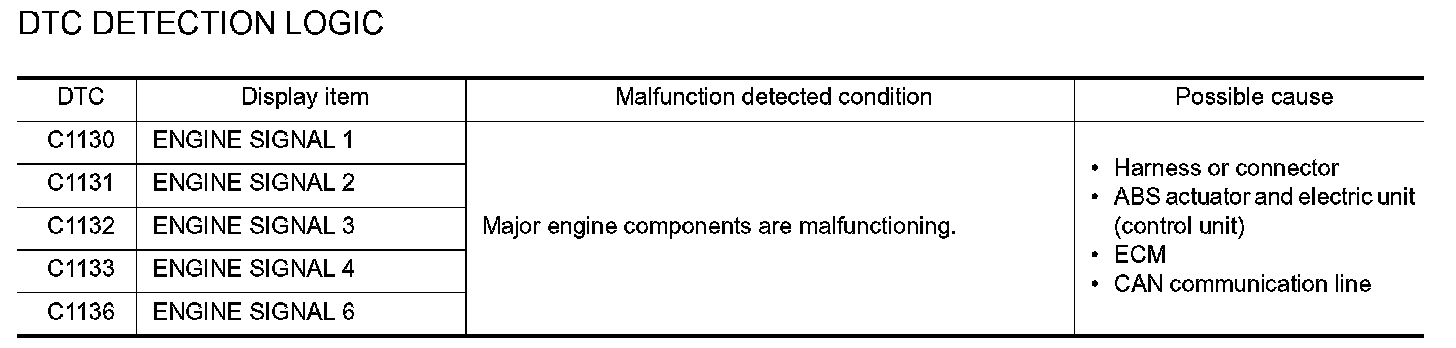

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS

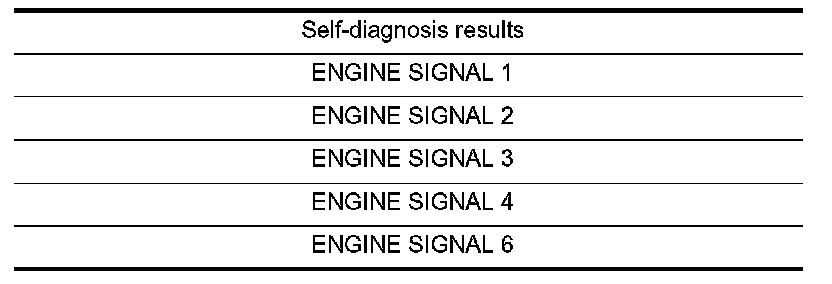

Check the self-diagnosis results.





Is above displayed on the self-diagnosis display?
YES - Proceed to diagnosis procedure. Refer to "Diagnosis Procedure".
NO - Inspection End




Diagnosis Procedure
INSPECTION PROCEDURE
1. CHECK ENGINE SYSTEM
1. Perform ECM self-diagnosis. Repair or replace items indicated, then perform ECM self-diagnosis again. Refer to CONSULT-III Function.
2. Perform ABS actuator and electric unit (control unit) self-diagnosis. Refer to Scan Tool Testing and Procedures.
Is any item indicated on the self-diagnosis display?
YES - Repair or replace malfunctioning components.
NO - Inspection End.




Special Repair Requirement
1. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit). Refer to Special Repair Requirement.
END
