Emissions - MIL ON/DTC's P0442/P0448/P0455/P0456: Overview

Classification: EC09-011

Reference: NTB09-059

Date: July 17, 2009

2007-2009 SENTRA; MIL "ON" WITH DTC P0442 / P0448 / P0455 / P0456

APPLIED VEHICLE: 2007-2009 Sentra (B16)

APPLIED VIN: Vehicles built before 3N1(*)B61E(*)9L 605531

APPLIED DATE: Vehicles built before September 27, 2008

IF YOU CONFIRM:

The MIL is "ON" with one or more of the following DTCs stored:

^ P0442 / P0448 / P0455 / P0456

AND

^ EVAP Vent Control Valve is stuck open or will not seal when operated / closed.

ACTIONS:

Replace the Vent Control Valve.

Install the Filter Kit listed in the PARTS INFORMATION section in this bulletin.

^ Refer to SERVICE PROCEDURE section in this bulletin for installation / repair procedure.

Clear any DTCs stored in the ECM.

IMPORTANT:
The purpose of ACTIONS (above) is to give you a quick idea of the work you will be performing. You MUST closely follow the entire Service Procedure as it contains information that is essential to successfully completing this repair.

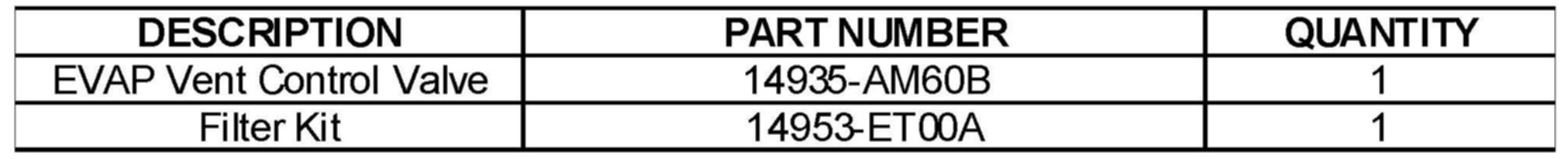

PARTS INFORMATION





CLAIMS INFORMATION
