Rear Door: Service and Repair
DOOR
Removal and Installation
KING CAB
Front Door
CAUTION:
- When removing and installing the door assembly, support the door with a jack and shop cloth to protect the door and body.
- When removing and installing door assembly, be sure to carry out the fitting adjustment.
- Check the hinge rotating part for poor lubrication. If necessary, apply body grease.
1. Remove the front door lock assembly. Refer to Removal and Installation.
2. Remove the door harness.
3. Remove the check link cover.
4. Remove the check link bolt from the hinge pillar.

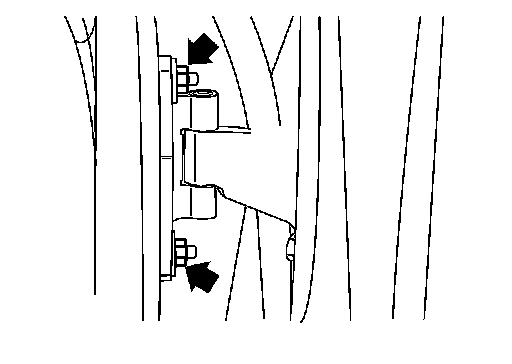

5. Remove the door-side hinge nuts and bolts, and remove the door assembly.
Installation is in the reverse order of removal.
- Align the front door. Refer to Adjustments
Rear Door
CAUTION:
- When removing and installing the door assembly, support the door with a jack and shop cloth to protect the door and body.
- When removing and installing door assembly, be sure to carry out the fitting adjustment.
- Check the hinge rotating part for poor lubrication. If necessary, apply body grease.
1. Remove the door glass. Refer to Removal.
2. Remove the speaker.
3. Remove the door handles and latch assembly Component Structure.
4. Remove the check link.
5. Remove the wire harness.
6. Remove the door assembly.
Installation is in the reverse order of removal.
- Align the rear door. Refer to Adjustments
CREW CAB
CAUTION:
- When removing and installing the door assembly, support the door with a jack and shop cloth to protect the door and body.
- When removing and installing door assembly, be sure to carry out the fitting adjustment.
- Check the hinge rotating part for poor lubrication. If necessary, apply body grease.
1. Remove the rear door lock assembly Removal And Installation.
2. Remove the door harness.
3. Remove the check link cover.
4. Remove the check link bolt from the hinge pillar.
5. Remove the door-side hinge nuts and bolts, and the door assembly.
Installation is in the reverse order of removal.
- Align the front door. Refer to Adjustments
