Drive Axles, Bearings and Joints: Testing and Inspection

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

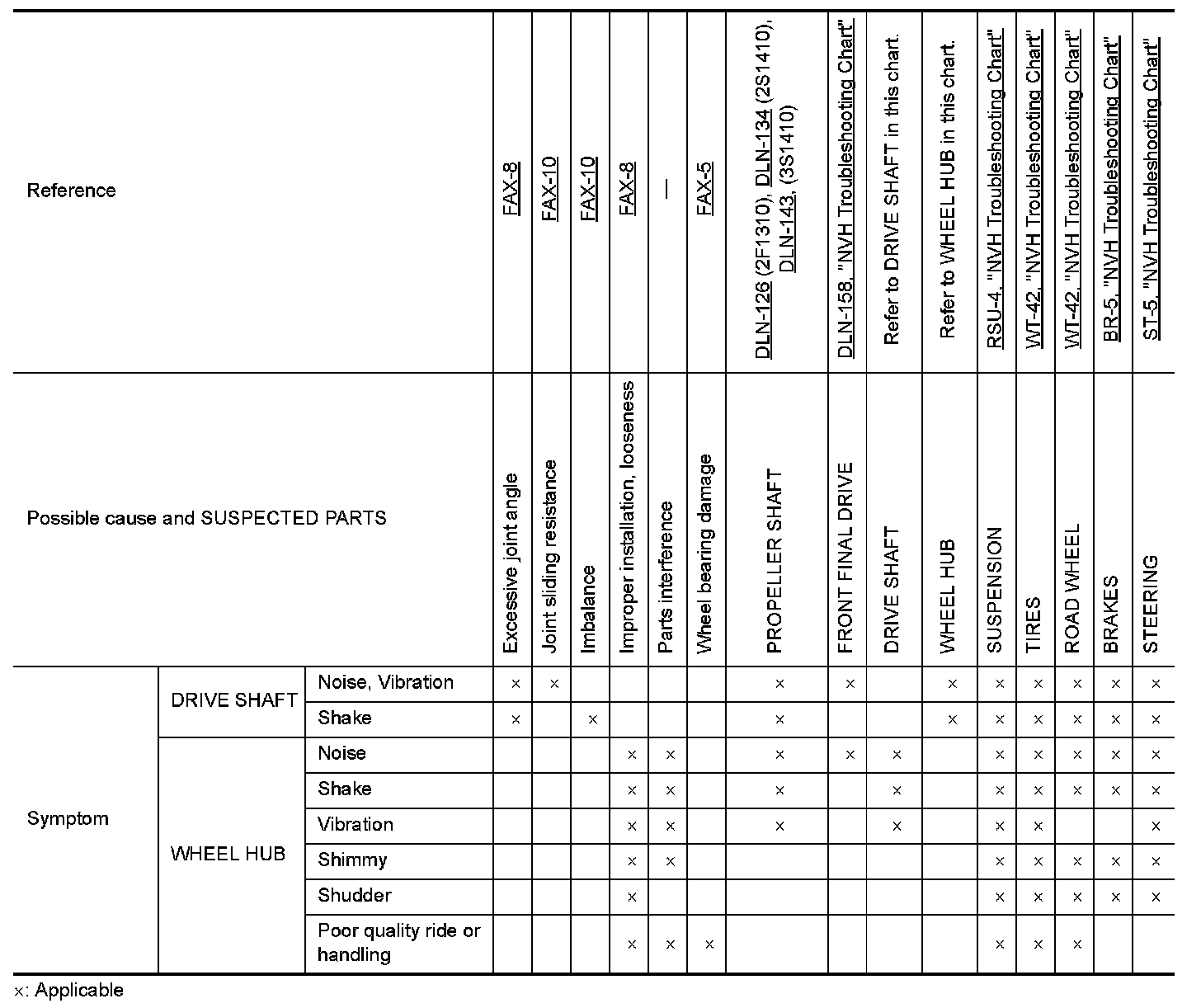

NVH Troubleshooting Chart

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
