Interior - Rear Cup Holder Repair Procedure

Classification: BT09-072

Reference: NTB09-145

Date: December 15, 2009

2005 - 2010 PATHFINDER, XTERRA, FRONTIER; REAR CUP HOLDER REPAIR

APPLIED VEHICLES:
2005 - 2010 Pathfinder (R51)
2005 - 2010 Xterra (N50)
2005 - 2010 Frontier (D40)

IF YOU CONFIRM

The rear cup holder needs to be replaced for any reason,

ACTION

Replace only the rear cup holder - the rear cup holder is available as a separate part.

NOTE:
^ Do not replace the entire center console when only the cup holder will solve the incident, if one should occur.

^ If a cup holder has been accidently snapped out of place:

1. Inspect the cup holder for damage.

2. If no damage is found, snap the cup holder back in place.





PARTS INFORMATION





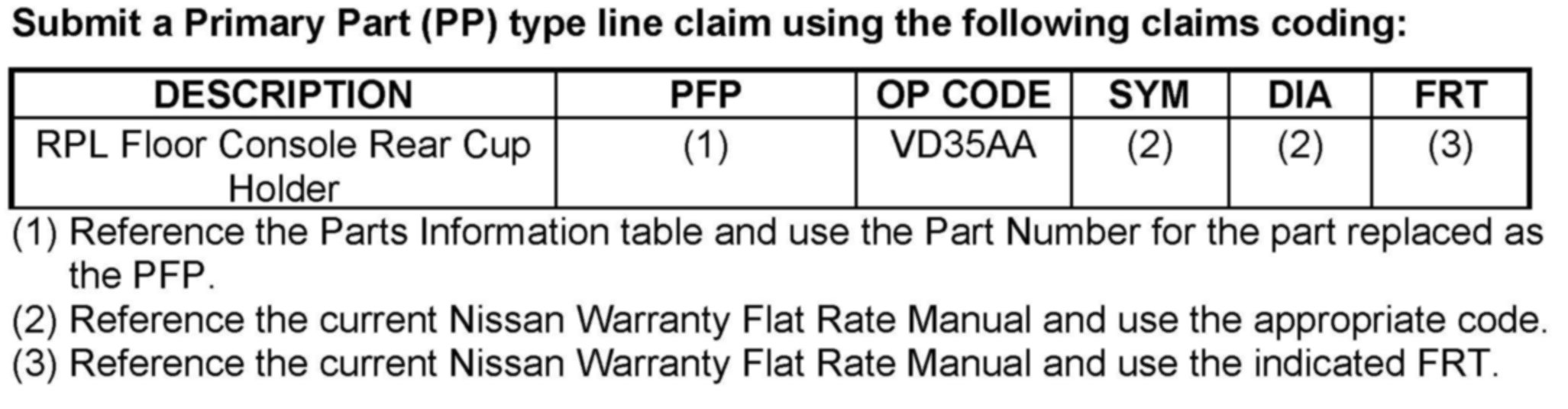

CLAIMS INFORMATION

SERVICE PROCEDURE

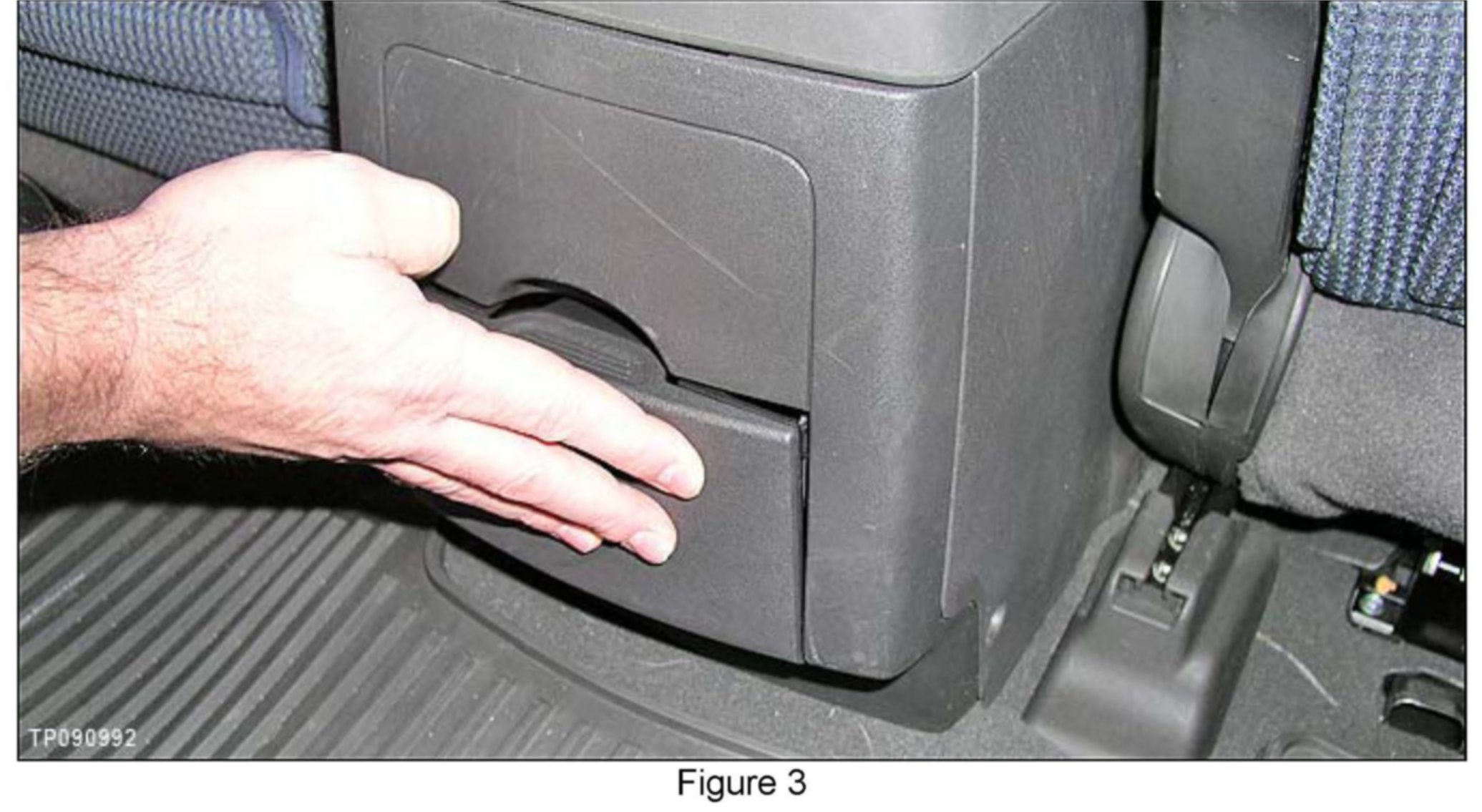

1. Open the rear cup holder.

2. Hold both sides of the cup holder and pull it (snap it) out of the center console.

^ If the cup holder is being replaced because it was broken, remove any pieces that may be inside the center console.





3. Inspect the rear finisher of the center console for damage.





^ If there is any damage, replace the rear finisher.

^ This bulletin does not cover rear finisher replacement. Refer to the Service Manual and the Warranty Flat Rate Manual as needed.





4. Fold the new cup holder closed and push it (snap it) into the center console.
