Reference Value
>>
ADP Control Unit
ADP Control Unit
AUTOMATIC DRIVE POSITIONER CONTROL UNIT
Reference Value
TERMINAL LAYOUT

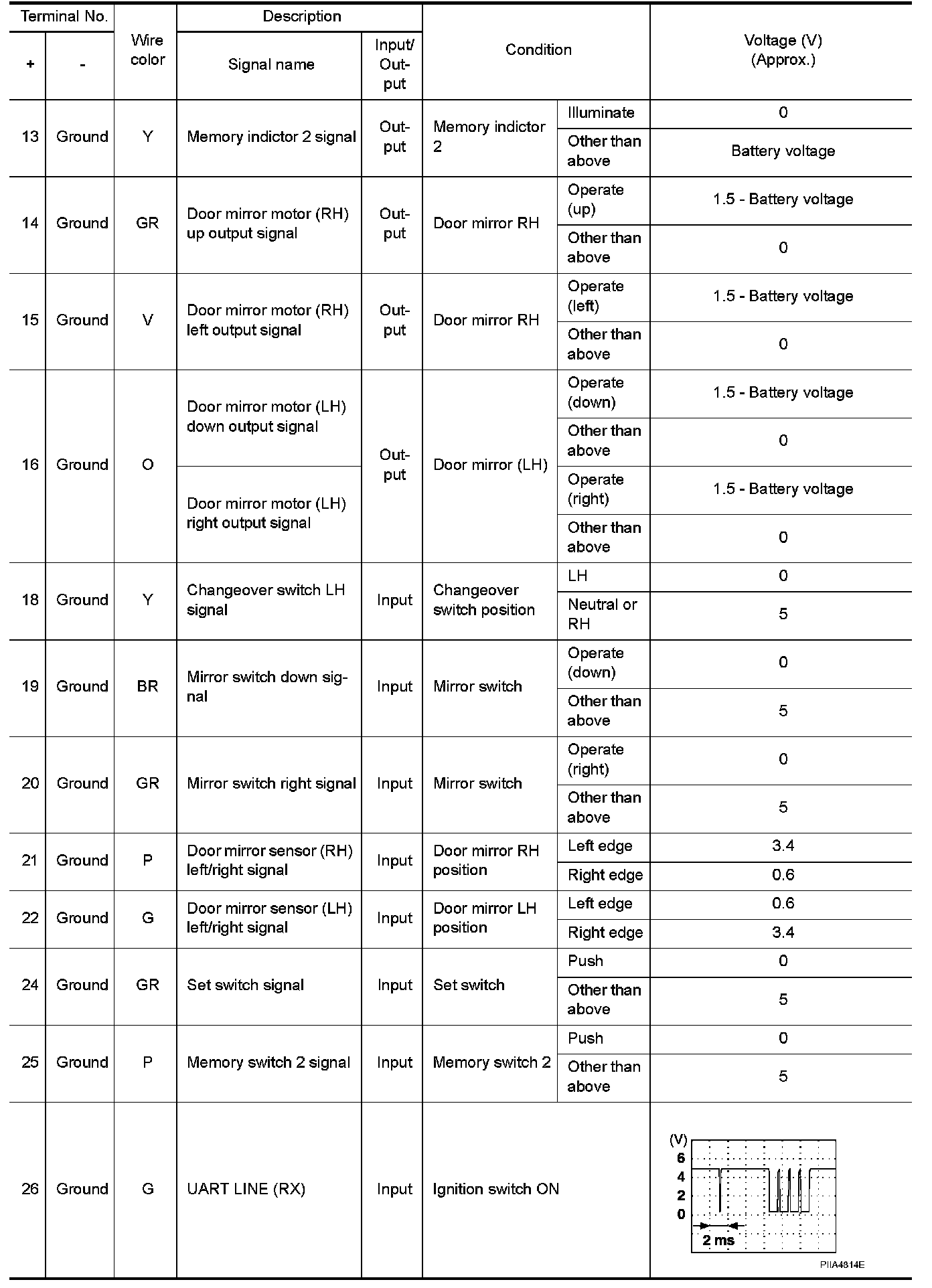

PHYSICAL VALUES
