Home
>>
Nissan-Datsun
>>
2010
>>
Pathfinder 2WD V6-4.0L (VQ40DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Drive/Propeller Shaft
>>
Propeller Shaft 2S1330
>>
Snap Ring
Snap Ring

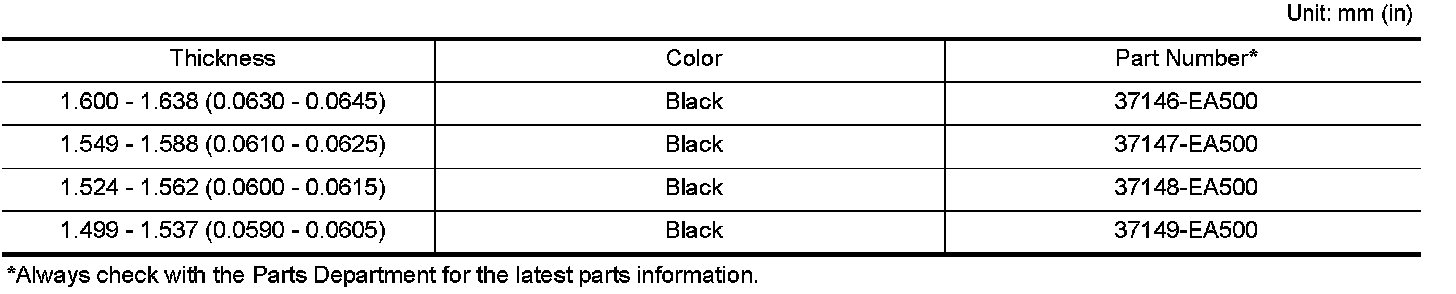

SERVICE DATA AND SPECIFICATIONS (SDS)
Snap Ring
Model 2S1330 (2WD)
