Cruise Test

TROUBLE DIAGNOSIS

Cruise Test

1.CHECK VEHICLE SPEED WHEN SHIFTING GEARS -- PART 1
1. Drive vehicle for approximately 10 minutes to warm engine oil and CVT fluid up to operating temperature.

CVT fluid operating temperature: 50 - 80�C (122 - 176�F)

2. Park vehicle on flat surface.
3. Move selector lever to "P" position.
4. Start engine.
5. Move selector lever to "L" position.

6. Accelerate vehicle to 2/8-way throttle depressing accelerator pedal constantly.
Read vehicle speed and engine speed. Vehicle Speed When Shifting Gears .
OK or NG
OK - GO TO 2.
NG - Mark the box Vehicle Speed Does Not Change In "L" Position on the How To Perform Trouble Diagnosis For Quick And Accurate Repair .
Continue "Road Test".
2.CHECK VEHICLE SPEED WHEN SHIFTING GEARS -- PART 2
1. Park vehicle on flat surface.
2. Move selector lever to "D" position.

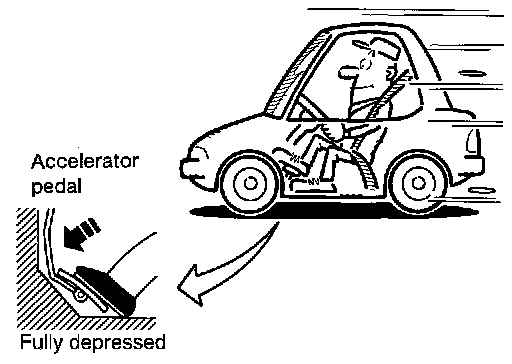

3. Accelerate vehicle to full depression depressing accelerator pedal constantly.
Read vehicle speed and engine speed. Vehicle Speed When Shifting Gears.
OK or NG
OK - GO TO 3. (With manual mode)
OK - GO TO 7. (Without manual mode)
NG - Mark the box CVT Does Not Shift In Manual Mode on the How To Perform Trouble Diagnosis For Quick And Accurate Repair. Continue "Road
Test".
3.CHECK MANUAL MODE FUNCTION
Move to manual mode from "D" position.
Does it switch to manual mode?
YES - GO TO 4.
NO - Mark the box Cannot Be Changed To Manual Mode on the How To Perform Trouble Diagnosis For Quick And Accurate Repair . Continue "Road Test".
4.CHECK SHIFT-UP FUNCTION
During manual mode driving, is upshift from M1 to M2 to M3 to M4 to M5 to M6 performed?
Read the gear position. CONSULT-III Function (Transmission).
Is upshifting correctly performed?
YES - GO TO 5.
NO - Mark the box CVT Does Not Shift In Manual Mode on the How To Perform Trouble Diagnosis For Quick And Accurate Repair . Continue "Road Test".
5.CHECK SHIFT-DOWN FUNCTION
During manual mode driving, is downshift from M6 to M5 to M4 to M3 to M2 to M1 performed?
Read the gear position. CONSULT-III Function (Transmission).
Is downshifting correctly performed?
YES - GO TO 6.
NO - Mark the box CVT Does Not Shift In Manual Mode on the How To Perform Trouble Diagnosis For Quick And Accurate Repair . Continue "Road Test".
6.CHECK ENGINE BRAKE FUNCTION
Check engine brake.
Does engine braking effectively reduce speed in M1 position?
YES - 1. Stop the vehicle.
2. Perform self-diagnosis. CONSULT-III Function (Transmission).
NO - Mark the box of Vehicle Does Not Decelerate By Engine Brake on the How To Perform Trouble Diagnosis For Quick And Accurate Repair. Then continue trouble diagnosis.
7.CHECK VEHICLE SPEED WHEN SHIFTING GEARS -- PART 2
1. Park vehicle on flat surface.
2. Move selector lever to "D" position.
3. Push overdrive control switch. (O/D OFF indicator lamp is on.)

4. Accelerate vehicle to 2/8-way throttle depressing accelerator pedal constantly.
Read vehicle speed and engine speed. Vehicle Speed When Shifting Gears .
OK or NG
OK - GO TO 8.
NG - Mark the box Vehicle Speed Does Not Change In Overdrive-OFF Mode on the How To Perform Trouble Diagnosis For Quick And Accurate Repair . Continue "Road Test".
8.CHECK VEHICLE SPEED WHEN SHIFTING GEARS -- PART 3
1. Park vehicle on flat surface.
2. Move selector lever to "D" position.
3. Push overdrive control switch. (O/D OFF indicator lamp is off.)

4. Accelerate vehicle to 2/8 way throttle depressing accelerator pedal constantly.
Read vehicle speed and engine speed. Vehicle Speed When Shifting Gears.
OK or NG
OK - GO TO 9.
NG - Mark the box Vehicle Speed Does Not Change In "D" Position on the How To Perform Trouble Diagnosis For Quick And Accurate Repair .
Continue "Road Test".
9.CHECK VEHICLE SPEED WHEN SHIFTING GEARS -- PART 4
1. Park vehicle on flat surface.
2. Move selector lever to "L" position.

3. Accelerate vehicle to full depression depressing accelerator pedal constantly.
Read vehicle speed and engine speed. Vehicle Speed When Shifting Gears .
OK or NG
OK - GO TO 10.
NG - Mark the box Vehicle Speed Does Not Change In "L" Position on the How To Perform Trouble Diagnosis For Quick And Accurate Repair .
Continue "Road Test".
10.CHECK VEHICLE SPEED WHEN SHIFTING GEARS -- PART 5
1. Park vehicle on flat surface.
2. Move selector lever to "D" position.
3. Push overdrive control switch. (O/D OFF indicator lamp is on.)

4. Accelerate vehicle to full depression depressing accelerator pedal constantly.
Read vehicle speed and engine speed. Vehicle Speed When Shifting Gears .
OK or NG
OK - GO TO 12.
NG - Mark the box Vehicle Speed Does Not Change In "D" Position on the How To Perform Trouble Diagnosis For Quick And Accurate Repair .
Continue "Road Test".
12.CHECK ENGINE BRAKE FUNCTION -- PART 1
1. Release accelerator pedal.
2. Check engine brake. (O/D OFF indicator lamp is off.)
Does engine braking effectively reduce speed in "D" position?
YES - GO TO 13.
NO - Mark the box Vehicle Does Not Decelerate By Engine Brake on the How To Perform Trouble Diagnosis For Quick And Accurate Repair. Continue "Road Test".
13.CHECK ENGINE BRAKE FUNCTION -- PART 2
1. Push overdrive control switch. (O/D OFF indicator lamp is on.)
2. Check engine brake.
Does engine braking effectively reduce speed in "D" position?
YES - GO TO 14.
NO - Mark the box Vehicle Does Not Decelerate By Engine Brake on the How To Perform Trouble Diagnosis For Quick And Accurate Repair . Continue "Road Test".
14.CHECK ENGINE BRAKE FUNCTION -- PART 3
1. Move selector lever to "L" position.
2. Check engine brake.
Does engine braking effectively reduce speed in "L" position?
YES - 1. Stop the vehicle.
2. Perform self-diagnosis. CONSULT-III Function (Transmission) .
NO - Mark the box Vehicle Does Not Decelerate By Engine Brake on the How To Perform Trouble Diagnosis For Quick And Accurate Repair . Then continue trouble diagnosis.
