Replacement

FLUID


Replacement

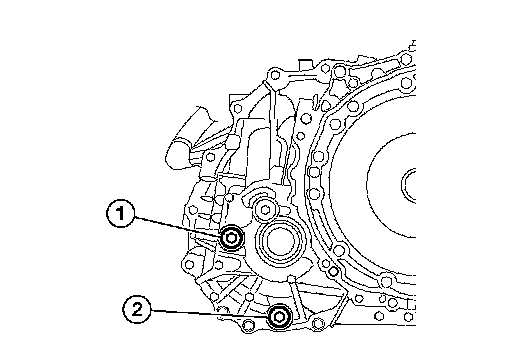

1. Remove the filler plug and gasket (1) from the transaxle.
2. Remove the drain plug and gasket (2) and drain the fluid from the transaxle.
3. Install the drain plug with a new gasket to the transaxle.

CAUTION:
Do not reuse gasket.

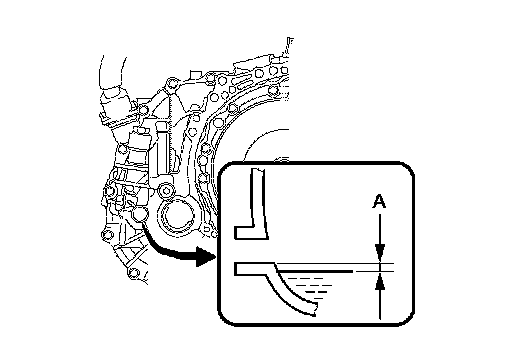

4. Fill the transaxle with specified fluid to the fluid level (A) as shown.

CAUTION:
- Use only the specified Genuine Nissan fluid, using fluid other than the Genuine Nissan specified fluid will deteriorate in driveability and durability, and may damage the transaxle, which is not covered by the warranty.
- Do not spill fluid on heat generating parts such as exhaust manifold.
- Do not overfill the transaxle.
- Recheck the fluid level after driving the vehicle to warm up the fluid.
5. Install the filler plug with a new gasket to the transaxle.






CAUTION:
Do not reuse gasket.
