Shift Linkage: Adjustments

CONTROL CABLE


Inspection and Adjustment


INSPECTION
1. Place shift selector in "P" position, and turn ignition switch ON (engine stop).
2. Make sure that shift selector can be shifted to other than "P" position when brake pedal is depressed. Also make sure that shift selector can be shifted from "P" position only when brake pedal is depressed.
3. Move the shift selector and check for excessive effort, sticking, noise or rattle.
4. Confirm the shift selector stops at each position with the feel of engagement when it is moved through all the positions. Check that the actual position of the shift selector matches the position shown by the shift position indicator and the manual lever on the transaxle.

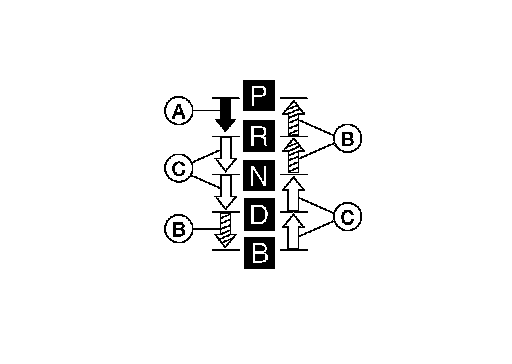

5. The method of operating the shift selector to individual positions correctly should be as shown.
- (A): Press shift selector handle button to operate shift selector, while depressing the brake pedal.
- (B): Press shift selector handle button to operate shift selector.
- (C): Shift selector can be operated without pressing shift selector handle button.
6. Press the shift selector handle button in the "P", "R", and "N" positions without applying forward/backward force to shift selector, check shift selector handle button operation for sticking.
7. Confirm the back-up lamps illuminate only when shift selector is placed in the "R" position. Confirm the back-up lamps do not illuminate when the shift selector is pushed toward the "R" position when in the "P" or "N" position.
8. Confirm the hybrid system can only be started with the shift selector in the "P" position.
9. Make sure transaxle is locked completely in "P" position.

ADJUSTMENT

CAUTION:
Apply parking brake before adjustment.
1. Loosen the shift selector control cable nut.
2. Place the manual lever and the shift selector in "P" position.
3. Tighten shift selector control cable nut to specified torque.






CAUTION:
Secure the manual lever when tightening shift selector control cable nut. Make sure the manual lever stays in the "P" position.
4. Check the operation of the transaxle. Inspection.
