CVT RE0F10A
>>
Lock-Up And Select Control System Coupe
Lock-Up And Select Control System Coupe
LOCK-UP AND SELECT CONTROL SYSTEM

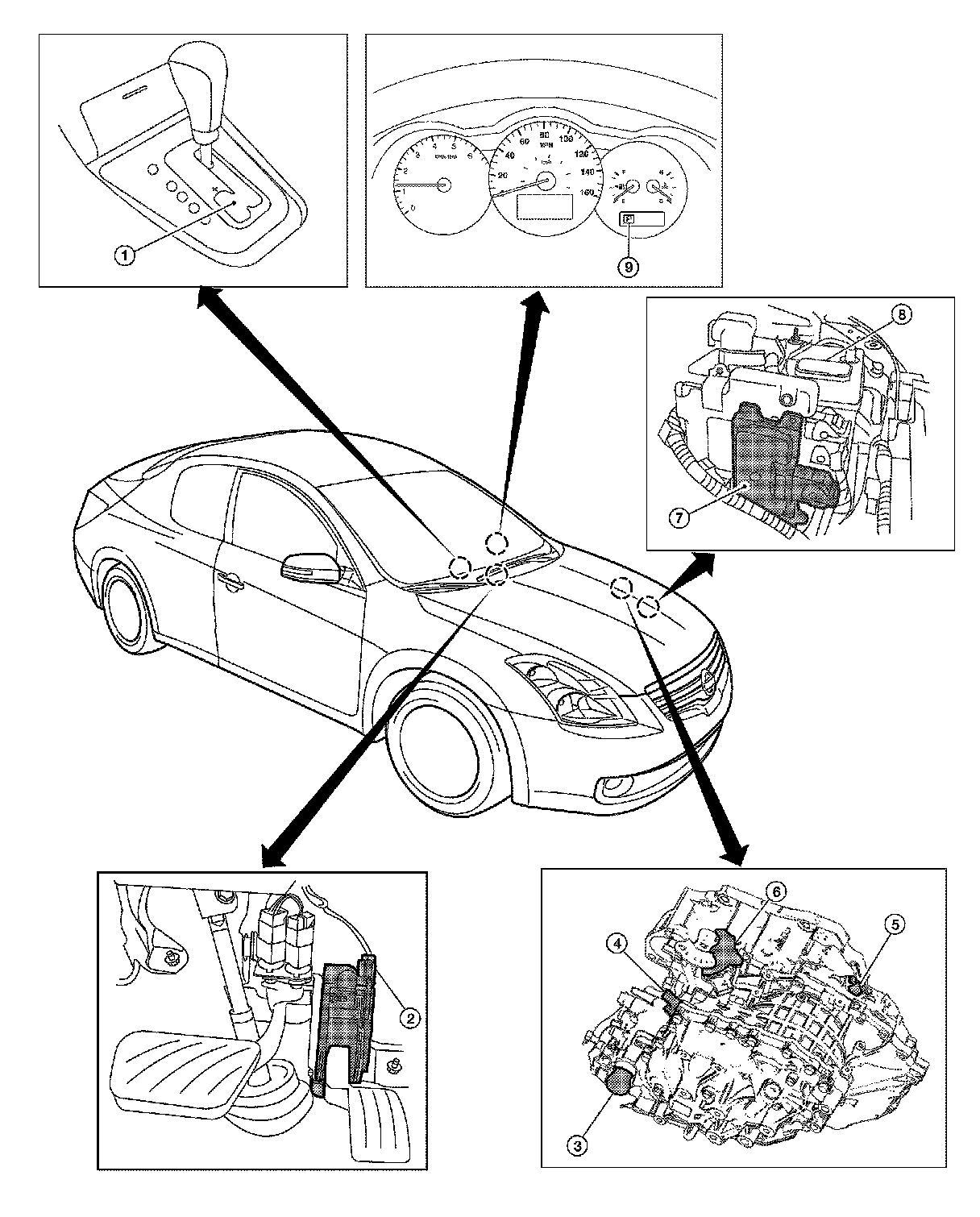

Component Parts Location - Coupe
