CVT RE0F10A
>>
Lock-Up And Select Control System Sedan
Lock-Up And Select Control System Sedan
LOCK-UP AND SELECT CONTROL SYSTEM

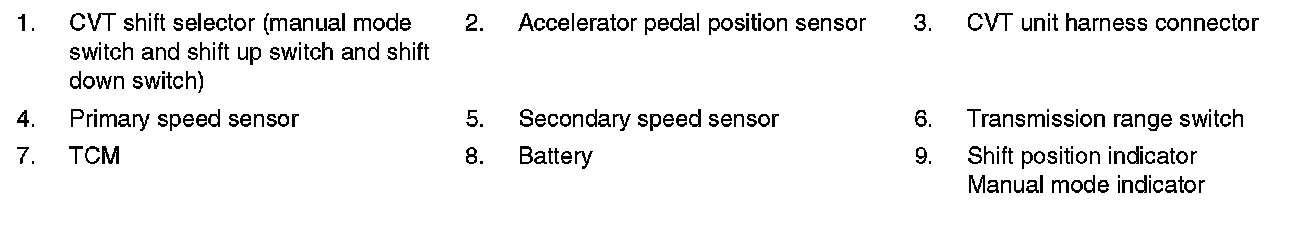

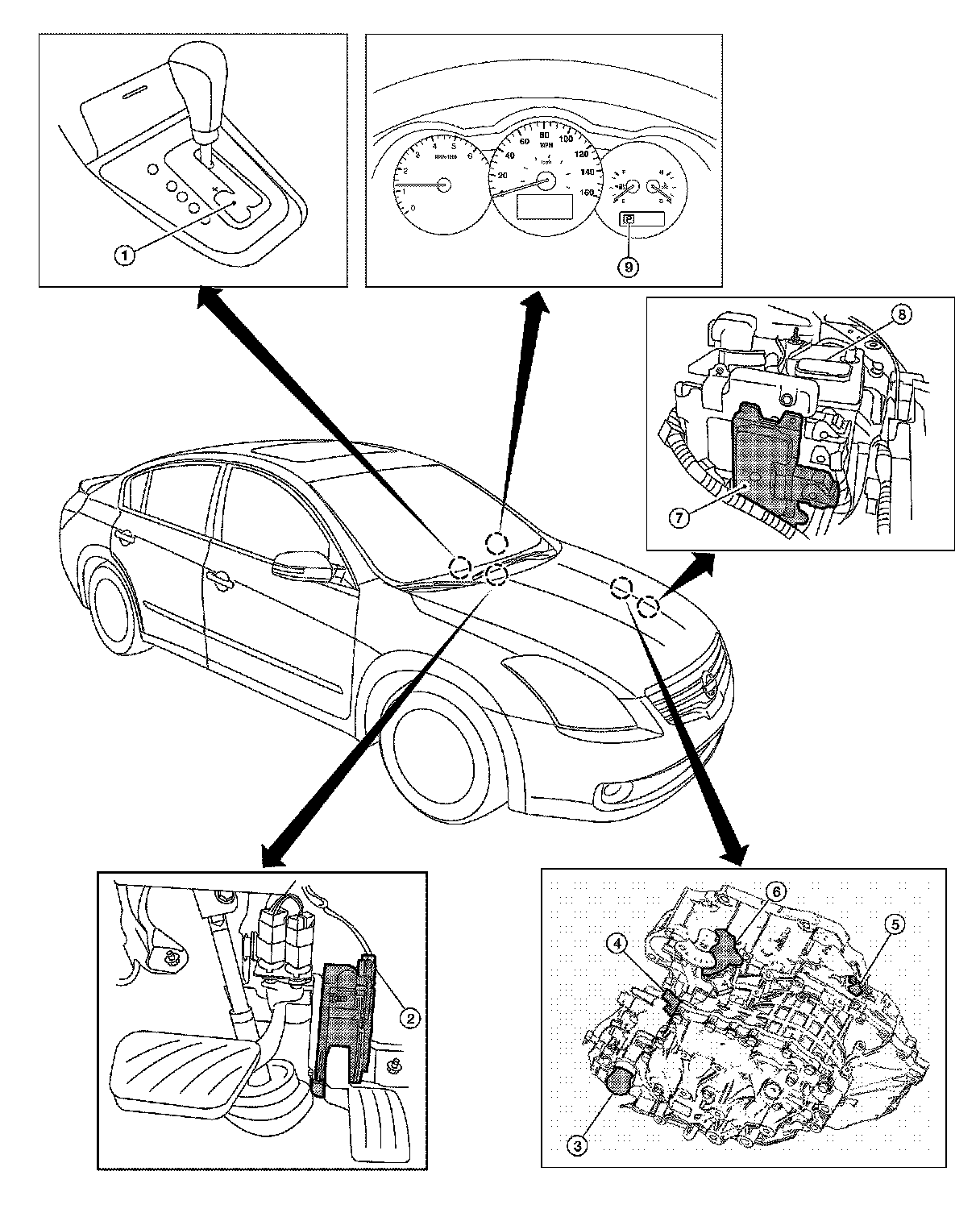

Component Parts Location - Sedan
