ASCD Brake Switch

ASCD BRAKE SWITCH





Component Description





When depress on the brake pedal, ASCD brake switch is turned
OFF and stop lamp switch is turned ON. ECM detects the state of the brake pedal by this those two types of input (ON/OFF signal)
Information for the ASCD function.




Diagnosis Procedure

A/T MODELS
1.CHECK OVERALL FUNCTION-I
With CONSULT-III
1. Turn ignition switch ON.
2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT-III.

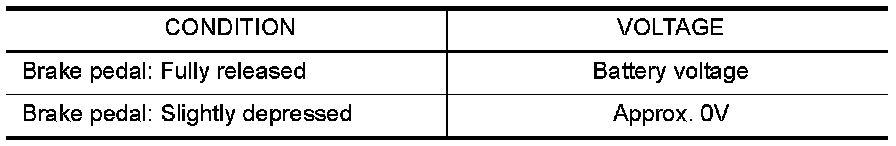

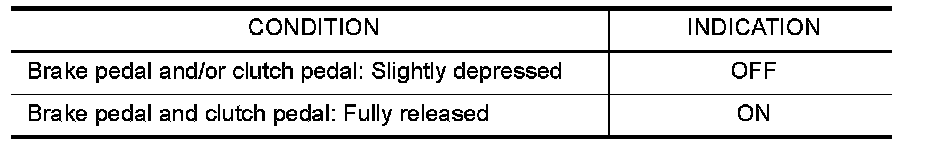

3. Check "BRAKE SW1" indication under the following conditions.





Without CONSULT-III
1. Turn ignition switch ON.

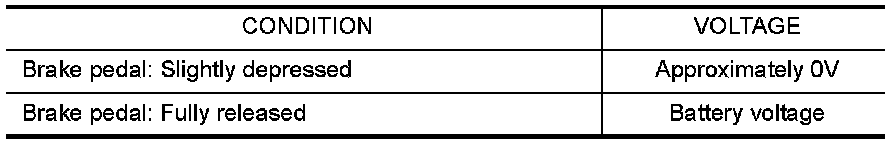

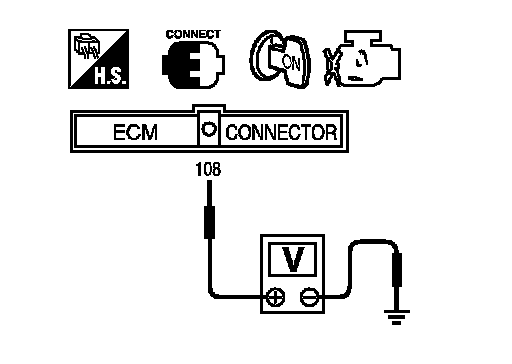

2. Check voltage between ECM terminal 108 and ground under the following conditions.





OK or NG
OK - INSPECTION END.
NG - GO TO 2.
2.CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.





2. Disconnect ASCD brake switch harness connector.
3. Turn ignition switch ON.

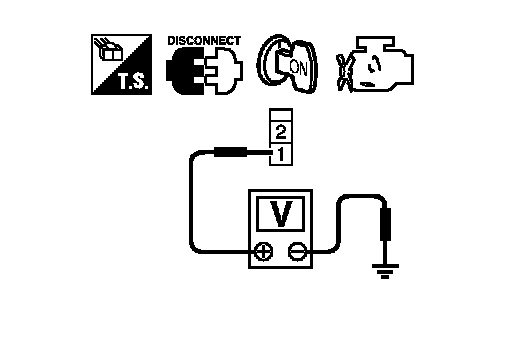

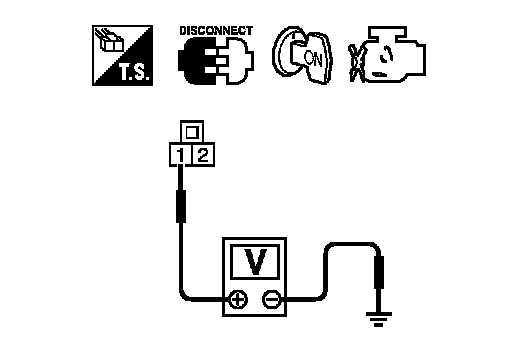

4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT-III or tester.






OK or NG
OK - GO TO 4.
NG - GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
- Fuse block (J/B) connector E160
- 10A fuse (No.12)
- Harness for open or short between ASCD brake switch and fuse
- Repair open circuit or short to ground in harness or connectors.
4.CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 108 and ASCD brake switch terminal 2. Refer to Wiring Diagram.






4. Also check harness for short to ground and short to power.
OK or NG
OK - GO TO 5.
NG - Repair open circuit, short to ground or short to power in harness or connectors.
5.CHECK ASCD BRAKE SWITCH
SEE Component Inspection.
OK or NG
OK - GO TO 6.
NG - Replace ASCD brake switch. Exploded View.
6.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END

M/T MODELS
1.CHECK OVERALL FUNCTION-I
With CONSULT-III
1. Turn ignition switch ON.
2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT-III.

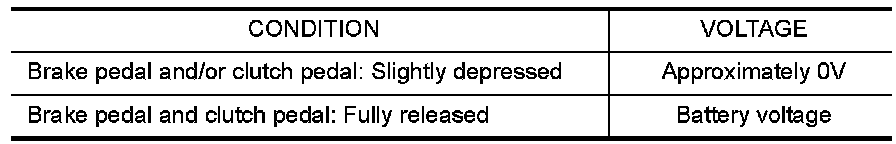

3. Check "BRAKE SW1" indication under the following conditions.





Without CONSULT-III
1. Turn ignition switch ON.





2. Check voltage between ECM terminal 108 and ground under the following conditions.





OK or NG
OK - INSPECTION END.
NG - GO TO 2.
2.CHECK ASCD BRAKE SWITCH CIRCUIT
1. Turn ignition switch OFF.





2. Disconnect ASCD clutch switch harness connector.
3. Turn ignition switch ON.





4. Check voltage between ASCD clutch switch terminal 1 and ground under the following conditions with CONSULT-III or tester.





OK or NG
OK - GO TO 7.
NG - GO TO 3.
3.CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.





2. Disconnect ASCD brake switch harness connector.
3. Turn ignition switch ON.





4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT-III or tester.






OK or NG
OK - GO TO 5.
NG - GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
- Fuse block (J/B) connector E160
- 10A fuse (No.12)
- Harness for open or short between ASCD brake switch and fuse
- Repair open circuit, short to ground or short to power in harness or connectors.
5.CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ASCD brake switch terminal 2 and ASCD clutch switch terminal 1. Refer to Wiring Diagram.






3. Also check harness for short to ground and short to power.
OK or NG
OK - GO TO 6.
NG - Repair open circuit, short to ground or short to power in harness or connectors.
6.CHECK ASCD BRAKE SWITCH
P1572.
OK or NG
OK - GO TO 9.
NG - Replace ASCD brake switch. Exploded View.
7.CHECK ASCD CLUTCH SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 108 and ASCD clutch switch terminal 2. Refer to Wiring Diagram.






4. Also check harness for short to ground and short to power.
OK or NG
OK - GO TO 8.
NG - Repair open circuit, short to ground or short to power in harness or connectors.
8.CHECK ASCD CLUTCH SWITCH
P1572.
OK or NG
OK - GO TO 9.
NG - Replace ASCD clutch switch. Exploded View.
9.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END




Component Inspection

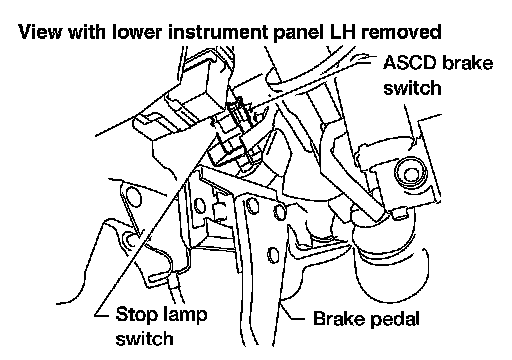

ASCD BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.

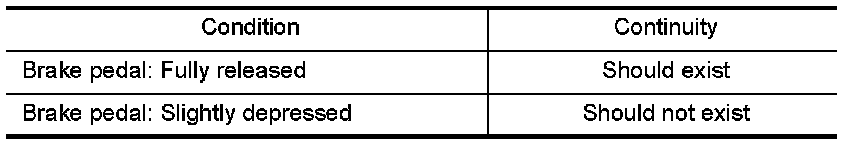

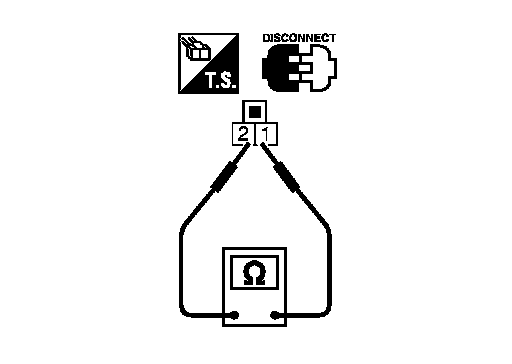

3. Check continuity between ASCD brake switch terminals 1 and 2 under the following conditions.





If NG, adjust ASCD brake switch installation, Inspection and Adjustment, and perform step 3 again.

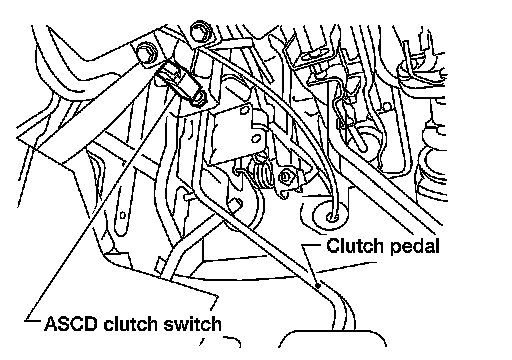

ASCD CLUTCH SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch harness connector.

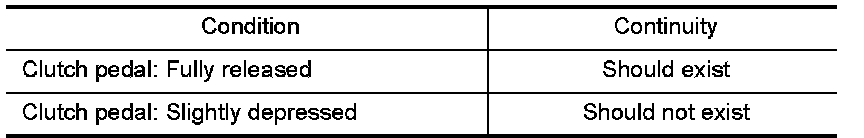

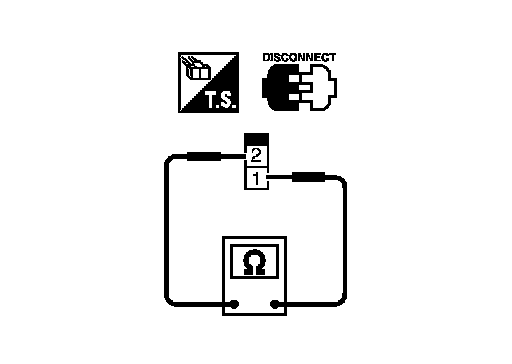

3. Check continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.





If NG, adjust ASCD clutch switch installation, , and perform step 3 again.
