ASCD Indicator

ASCD INDICATOR





Component Description
ASCD indicator lamp illuminates to indicate ASCD operation status. Lamp has two indicators, CRUISE and
SET, and is integrated in combination meter.
CRUISE indicator illuminates when MAIN switch on ASCD steering switch is turned ON to indicate that ASCD system is ready for operation.
SET indicator illuminates when the following conditions are met.
- CRUISE indicator is illuminated.
- SET/COAST switch on ASCD steering switch is turned ON while vehicle speed is within the range of ASCD setting.
SET indicator remains lit during ASCD control. Information for the ASCD function.




Diagnosis Procedure
1.CHECK OVERALL FUNCTION

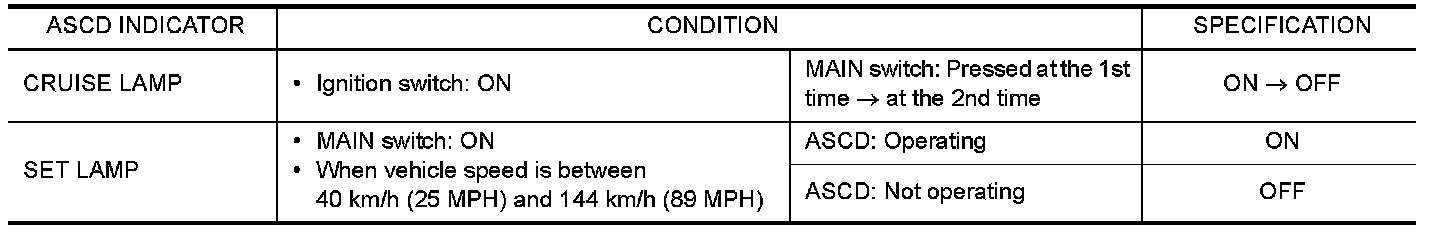

Check ASCD indicator under the following conditions.





OK or NG
OK - INSPECTION END
NG - GO TO 2.
2.CHECK DTC
Check that DTC UXXXX is not displayed.
Yes or No
Yes - Perform trouble diagnosis for DTC UXXXX, U1001 U1001 U1001 U1001.
No - GO TO 3.
3.CHECK COMBINATION METER OPERATION
Work Flow.
OK or NG
OK - GO TO 4.
NG - Go to Arrangement Of Combination Meter.
4.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
