Ignition Timing: Testing and Inspection

INSPECTION AND ADJUSTMENT

Idle Speed and Ignition Timing Check

IDLE SPEED

With CONSULT-III
Check idle speed in "DATA MONITOR" mode with CONSULT-III.

With GST
Check idle speed in Service $01 with GST.

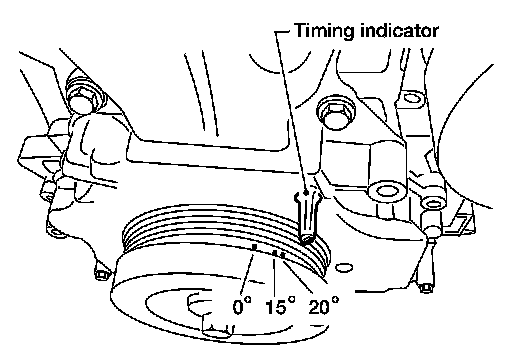

IGNITION TIMING
Any of following two methods may be used.

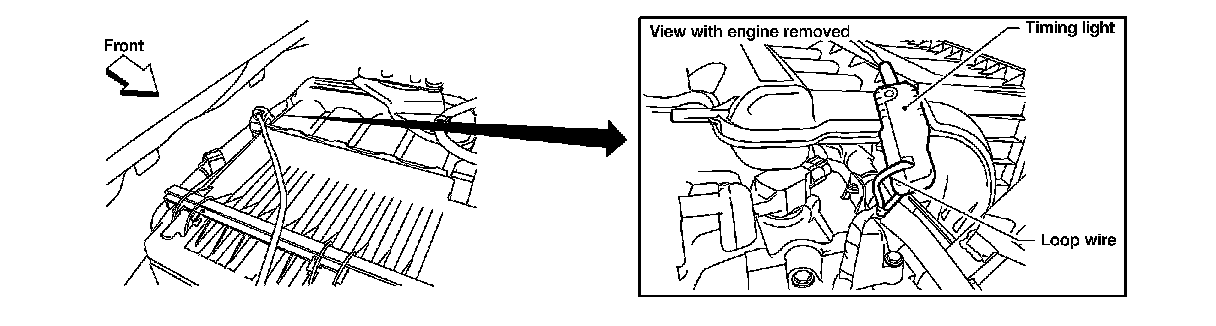

1. Attach timing light to loop wire as shown.
