Connecting Rod, Engine

Connecting Rod Bolts

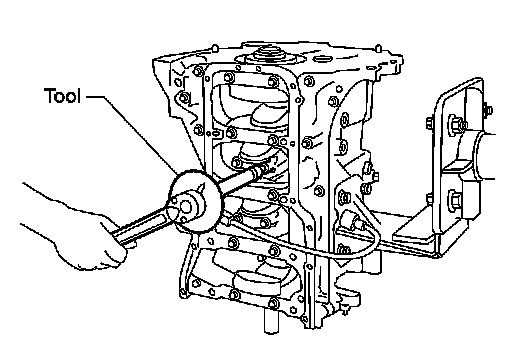

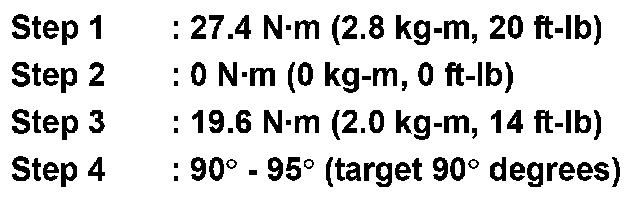

Tighten the connecting rod bolts using Tool in four steps as follows:










Apply engine oil to the threads and seats of the connecting rod bolts.

CAUTION: Always use either an angle wrench or protractor. Avoid tightening based on visual check alone.

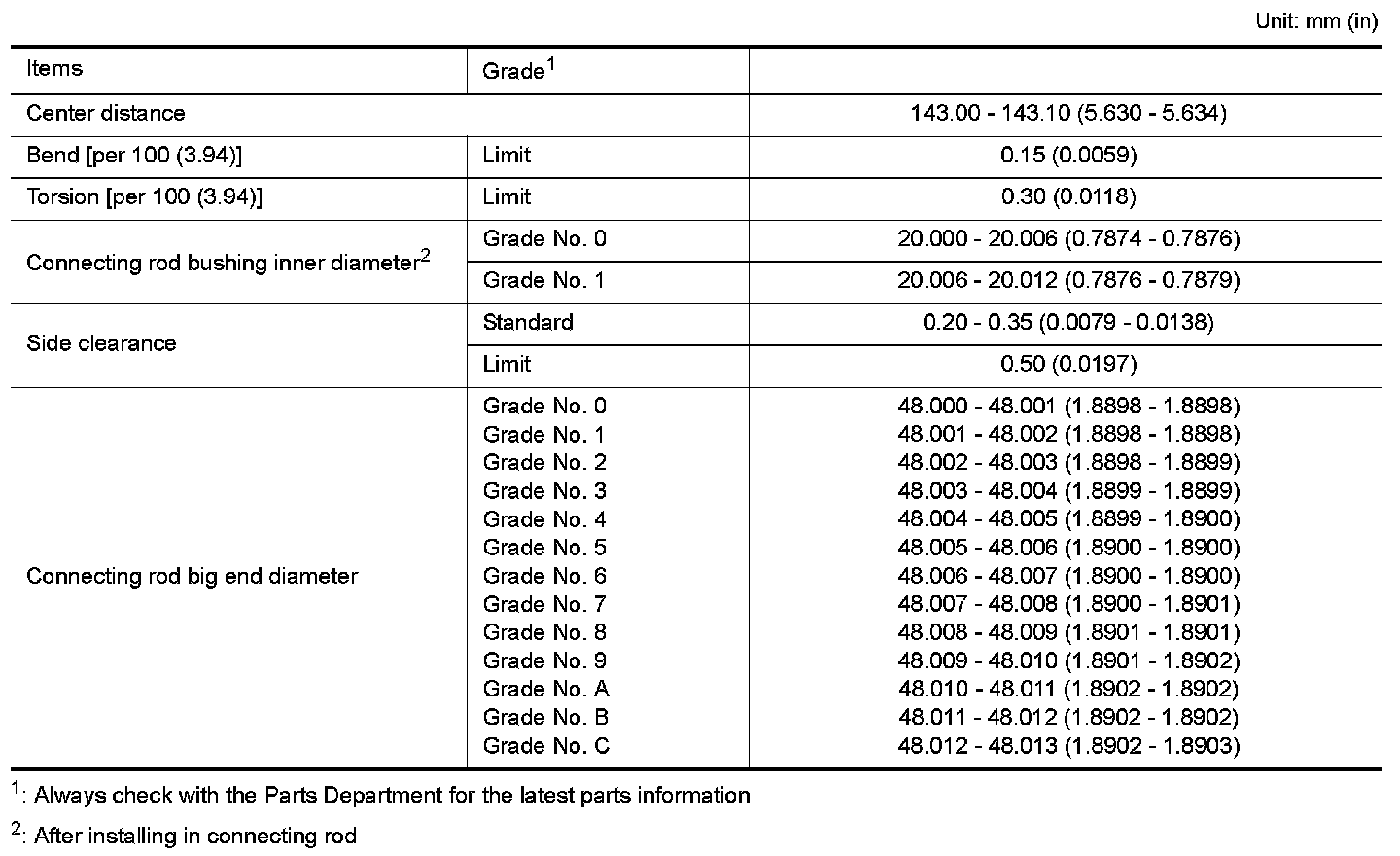

CONNECTING ROD
