Intake Manifold

INTAKE MANIFOLD

Intake manifold 19.6 N.m (2 kg-m, 14 ft-lb)

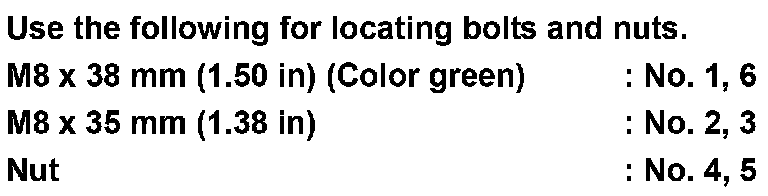

If stud bolts were removed, install them and tighten to the specified torque below.

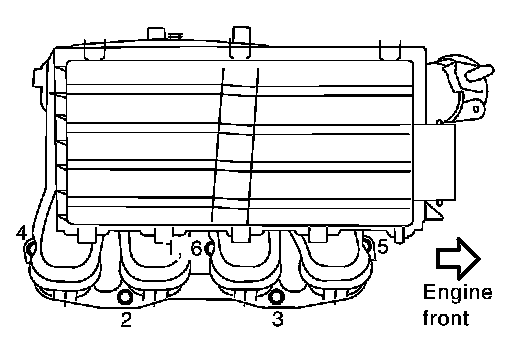

Tighten in numerical order as shown.






NOTE: No. 6 means double tightening of bolt No. 1.
