System Specifications
SERVICE DATA AND SPECIFICATIONS (SDS)
Standard and Limit

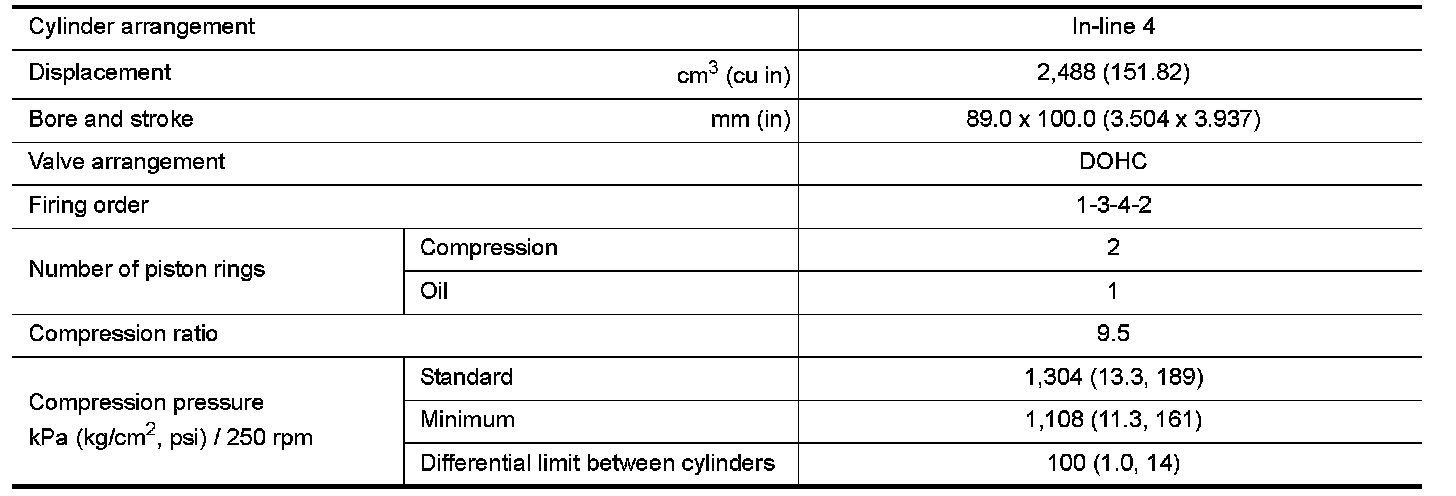

GENERAL SPECIFICATIONS
DRIVE BELT
EXHAUST MANIFOLD AND THREE WAY CATALYST ASSEMBLY
SPARK PLUG

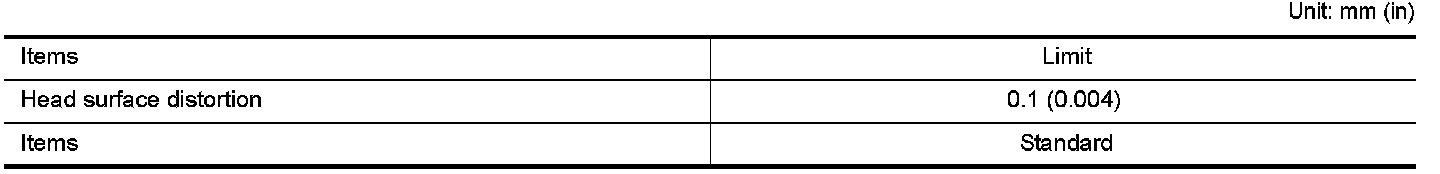

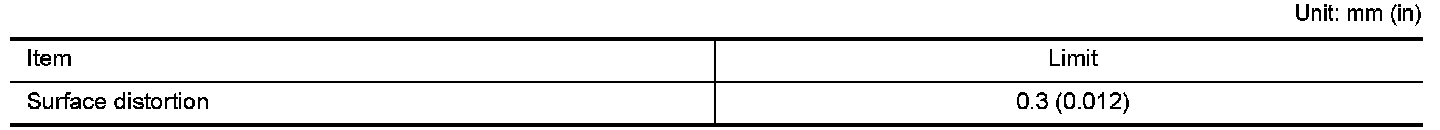

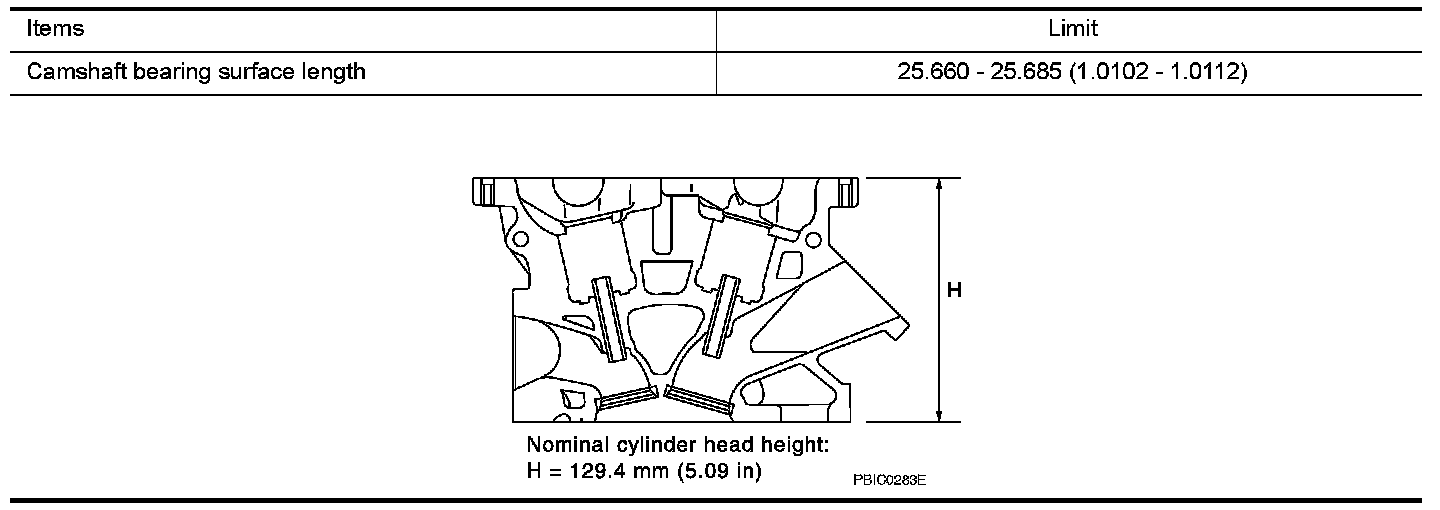

CYLINDER HEAD
VALVE

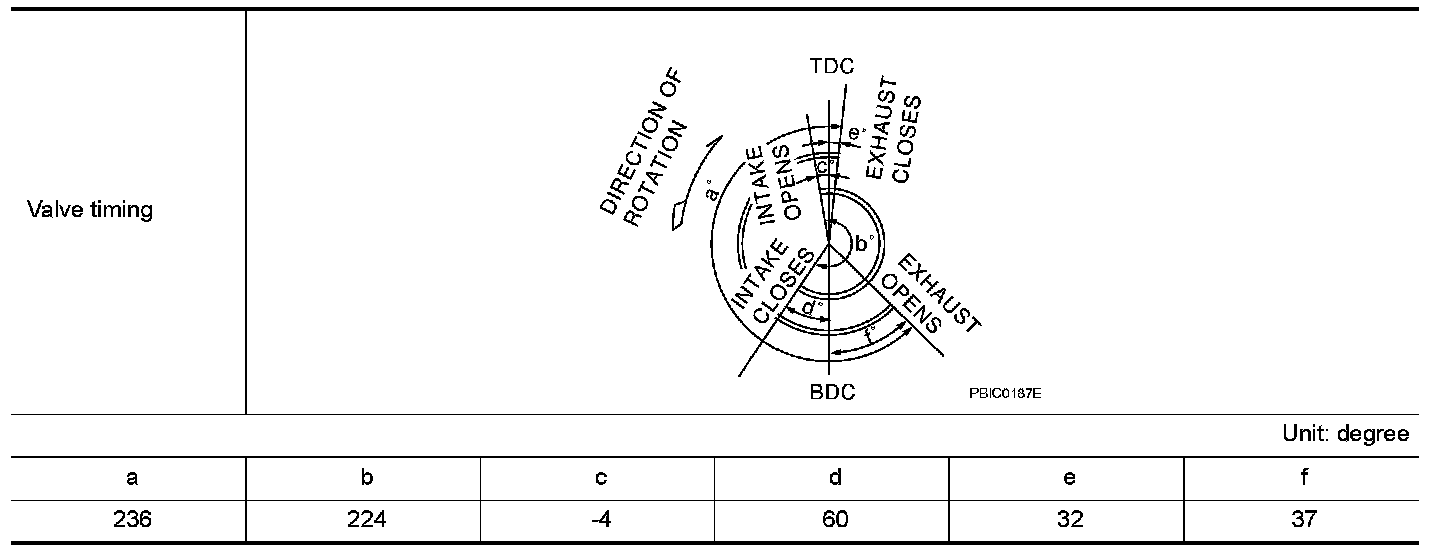

Valve Timing
Valve Dimensions
Valve Clearance

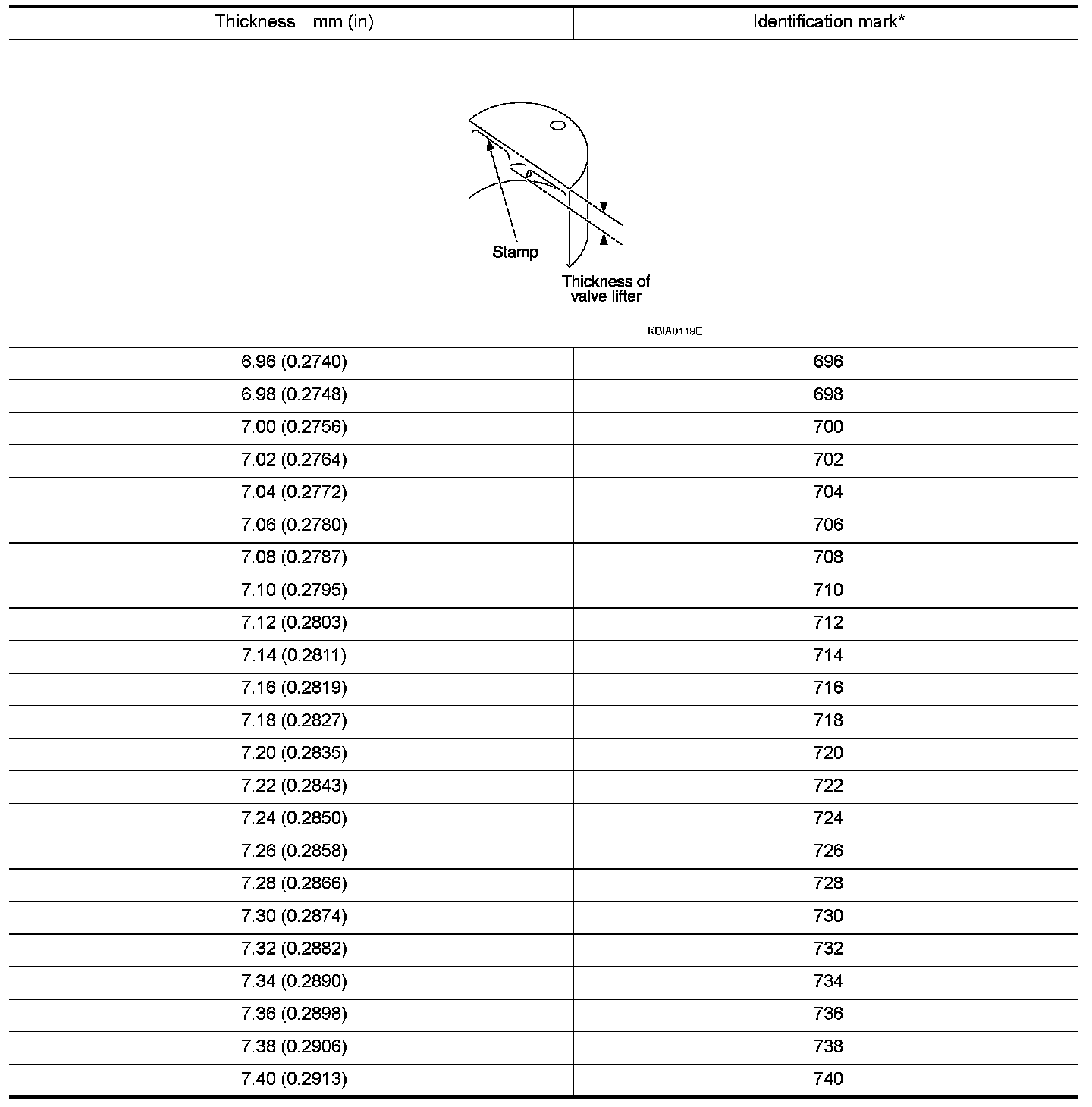

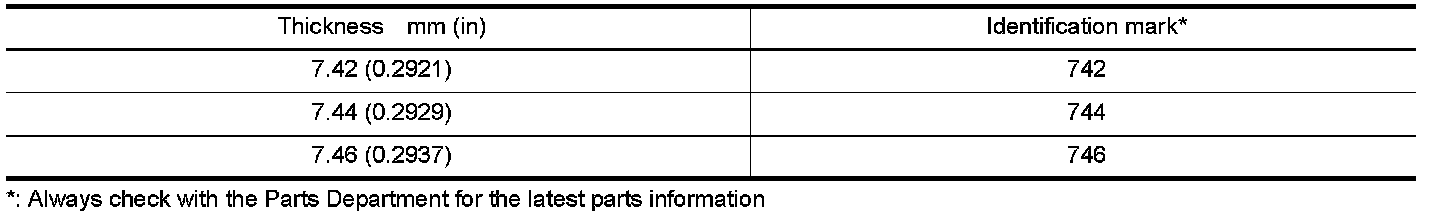

Available Valve Lifter

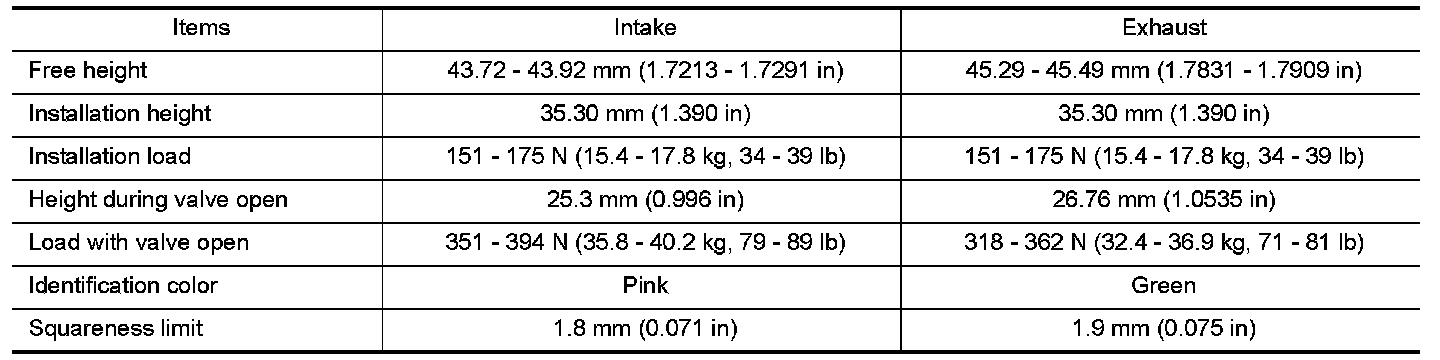

Valve Spring

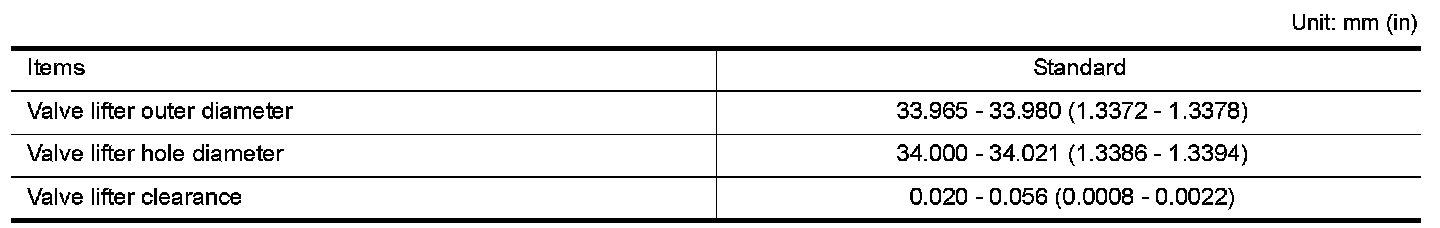

Valve Lifter

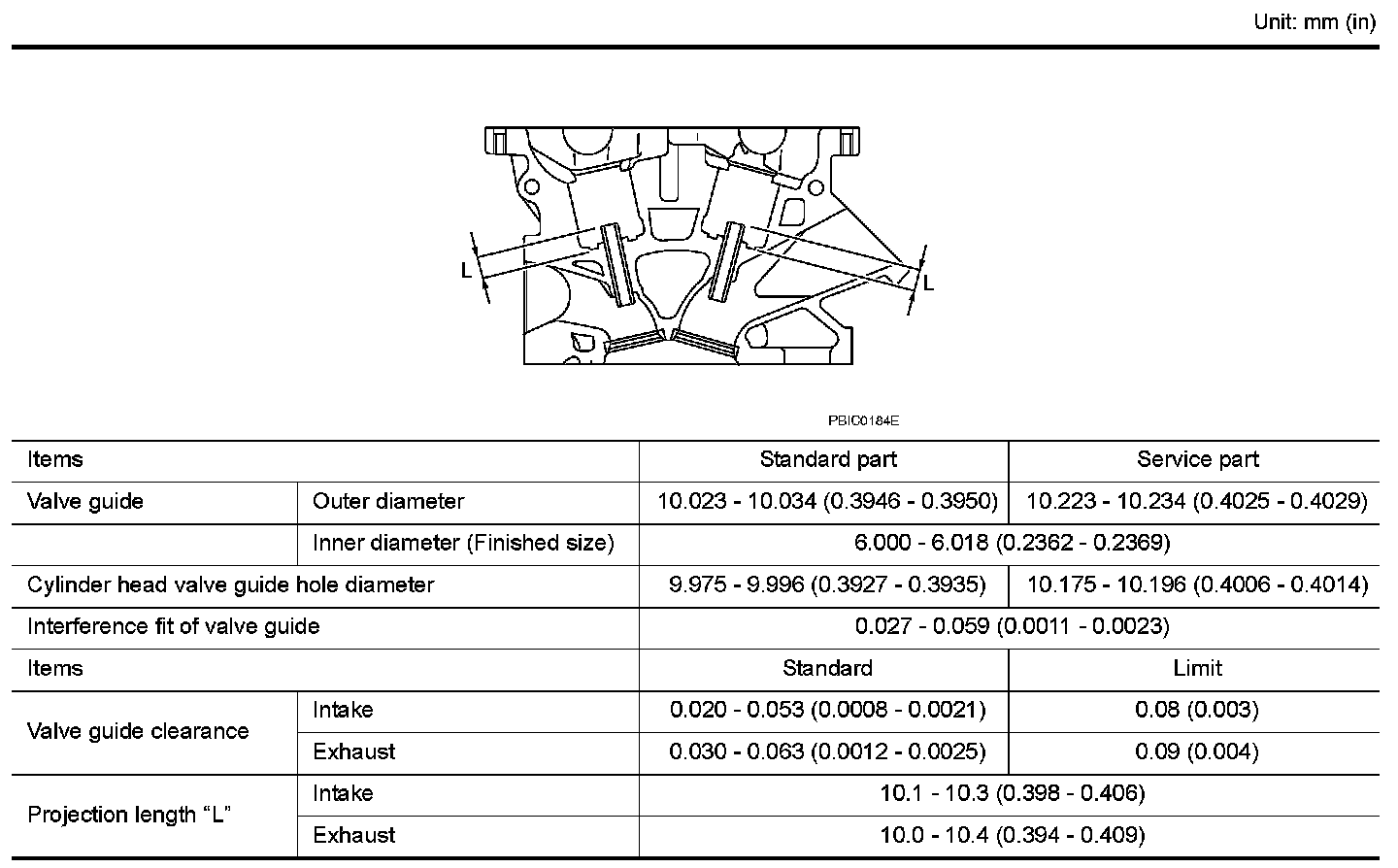

Valve Guide

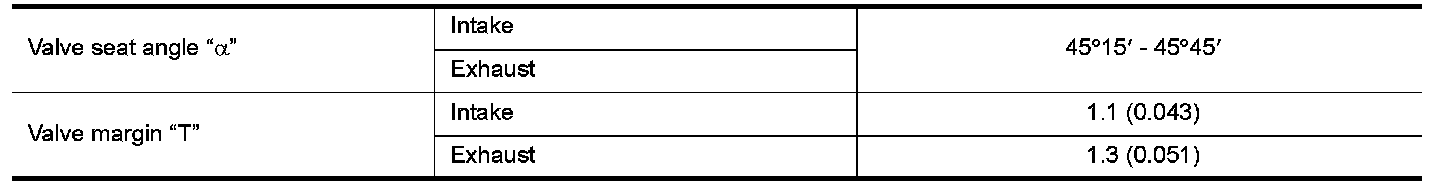

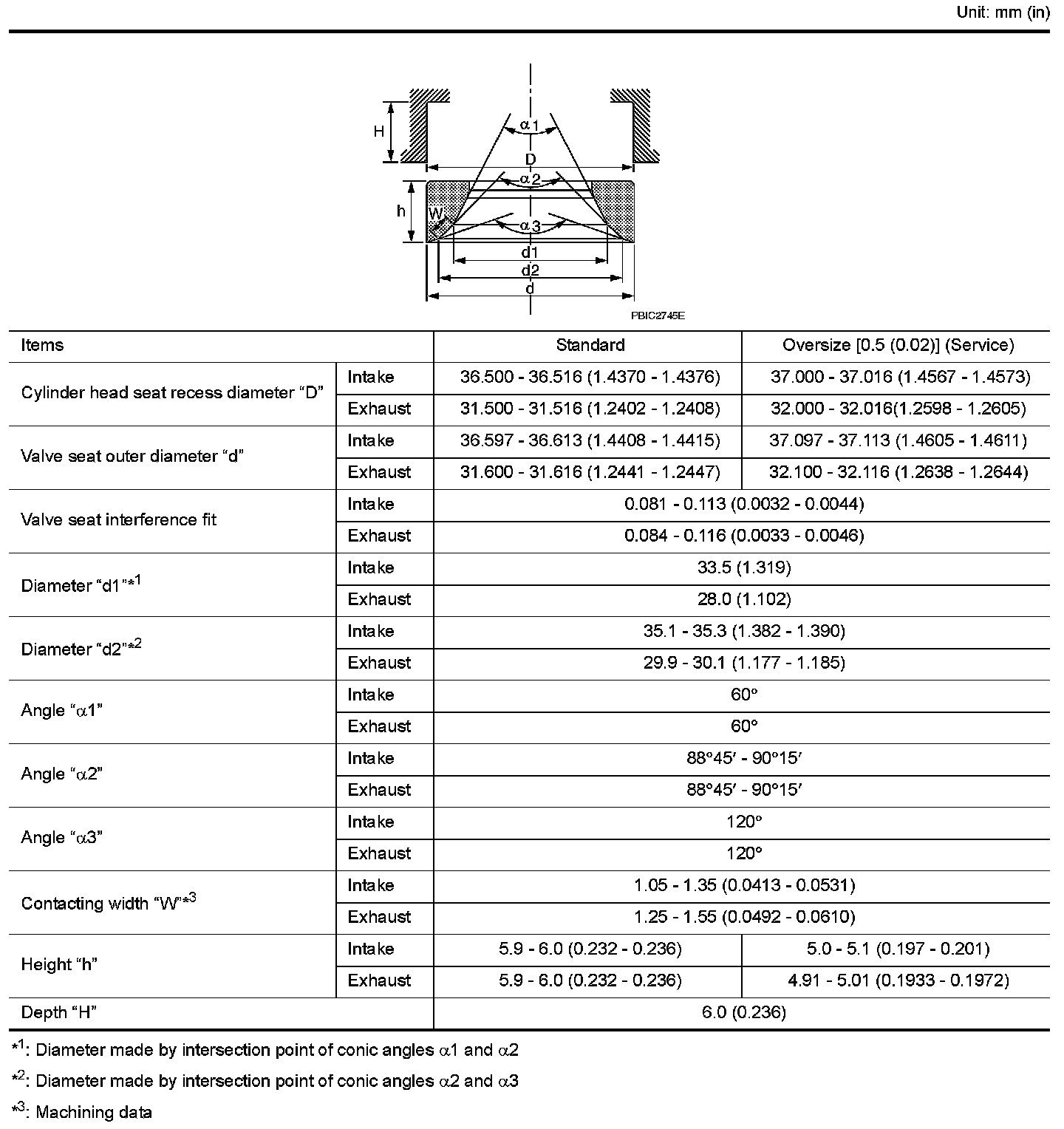

Valve Seat

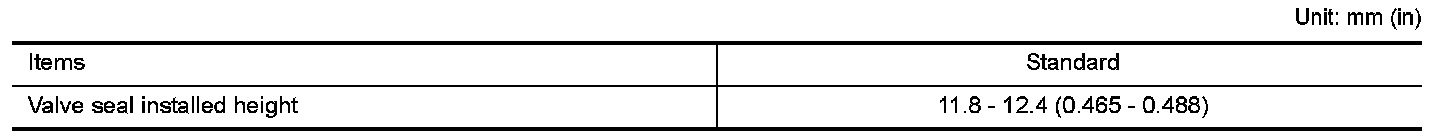

Valve Seal

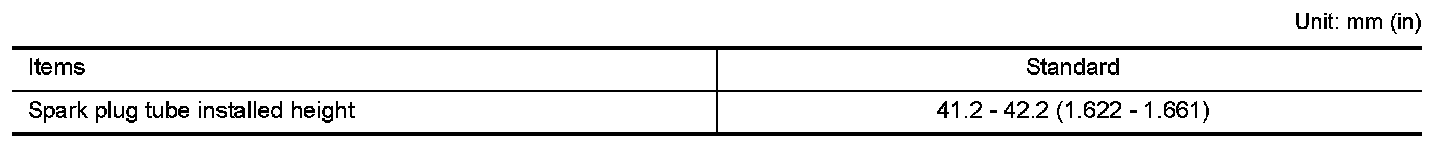

Spark Plug Tube

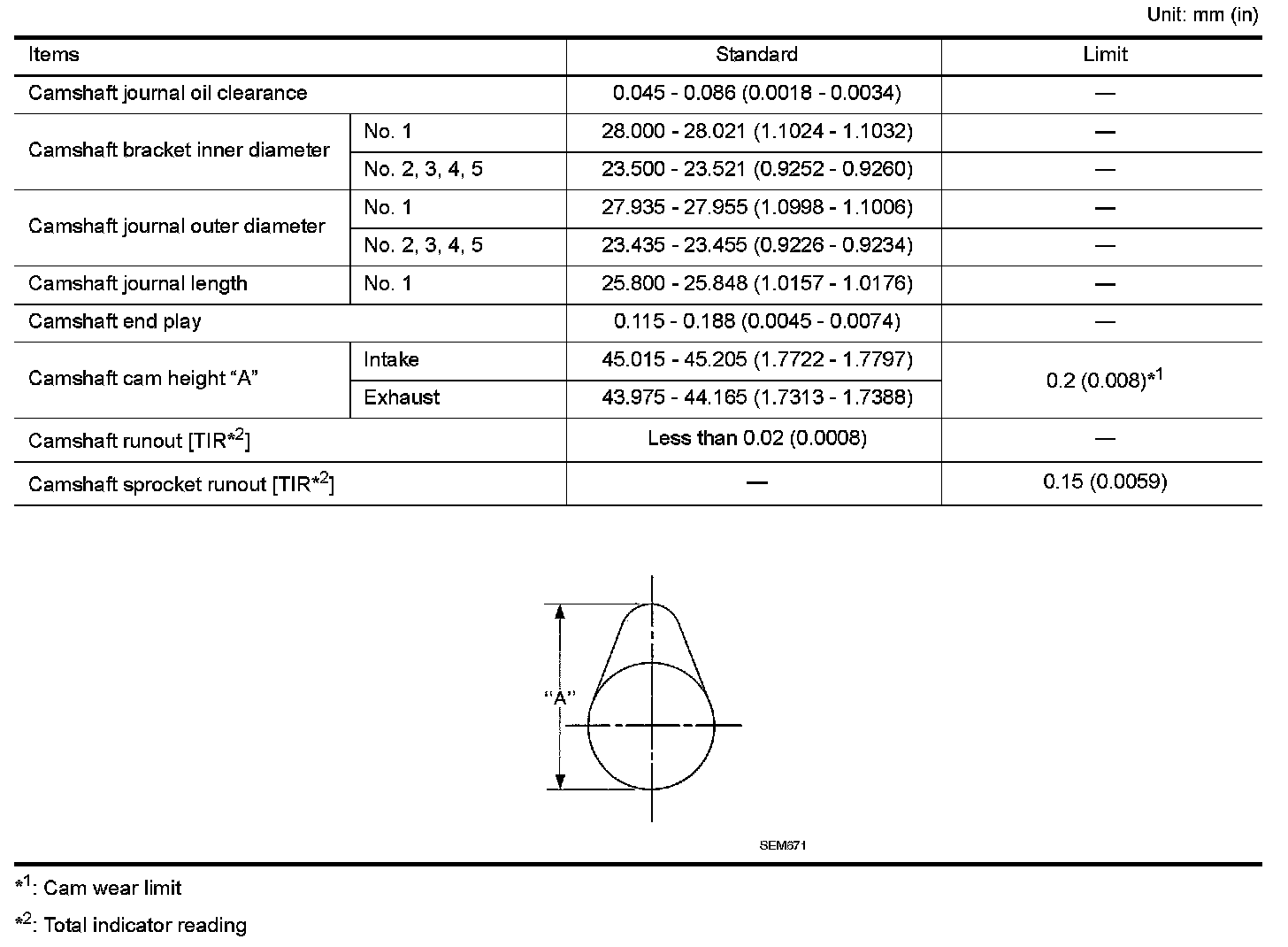

CAMSHAFT AND CAMSHAFT BEARING

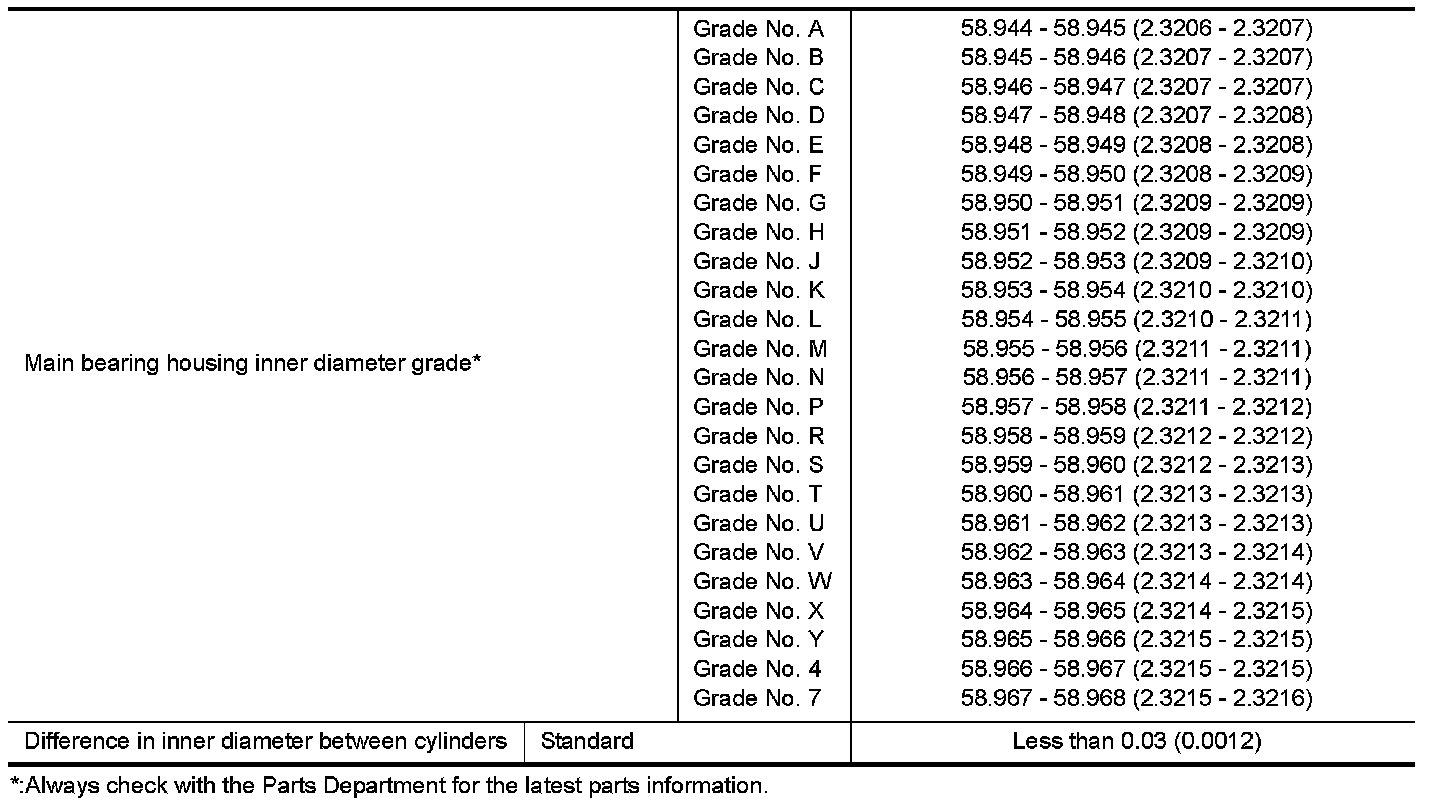

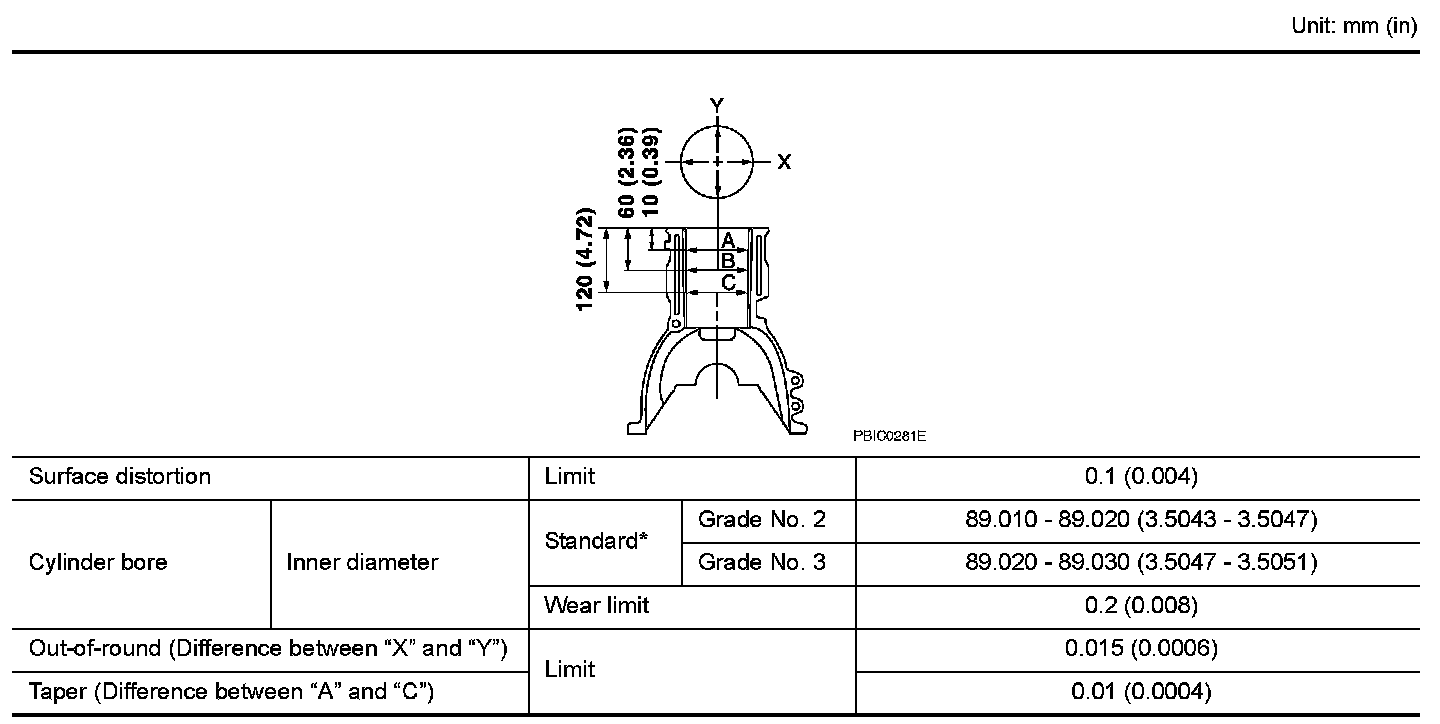

CYLINDER BLOCK
PISTON, PISTON RING AND PISTON PIN

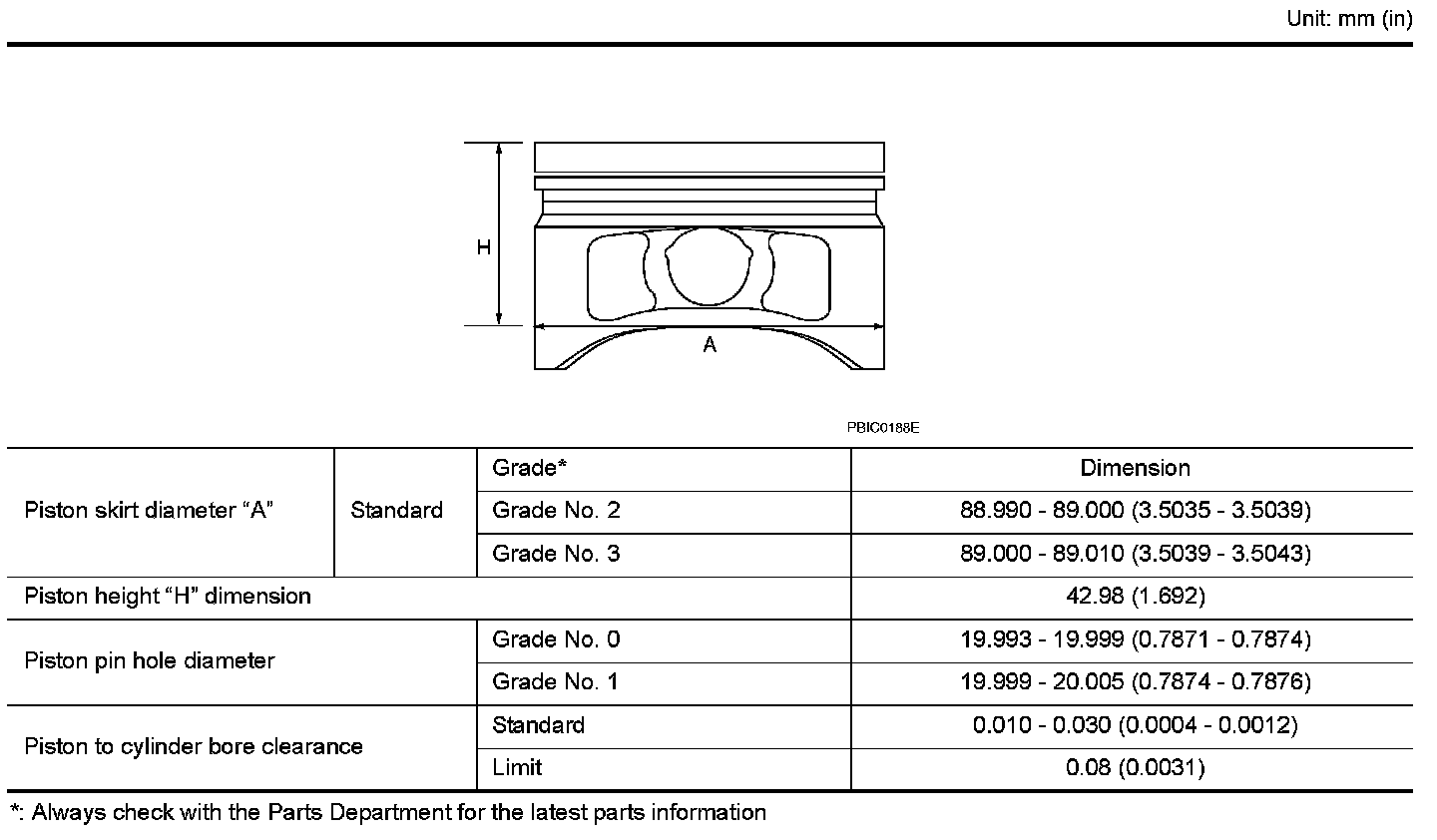

Available Piston

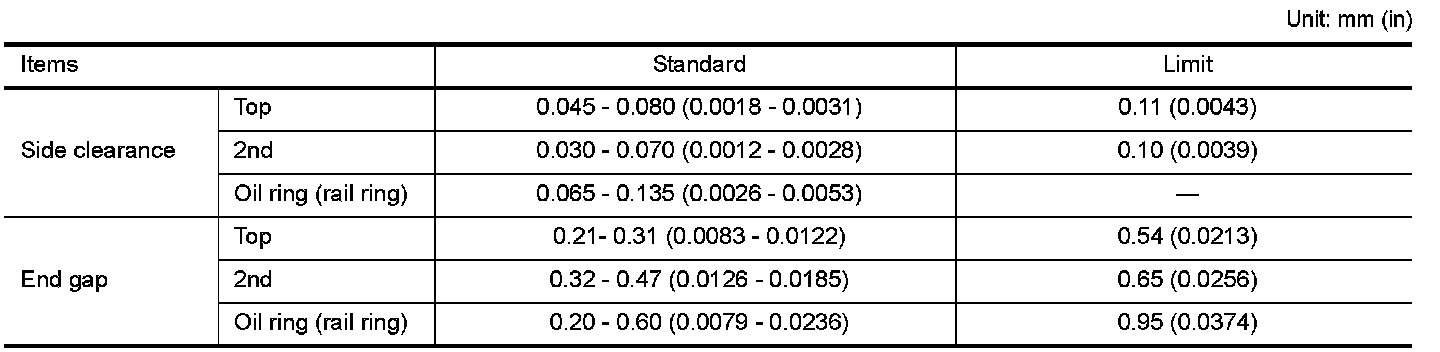

Piston Ring

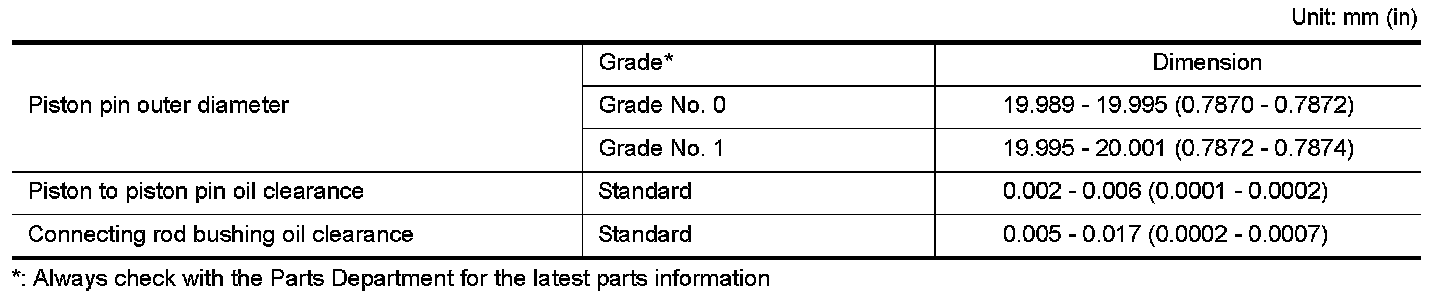

Piston Pin
CONNECTING ROD

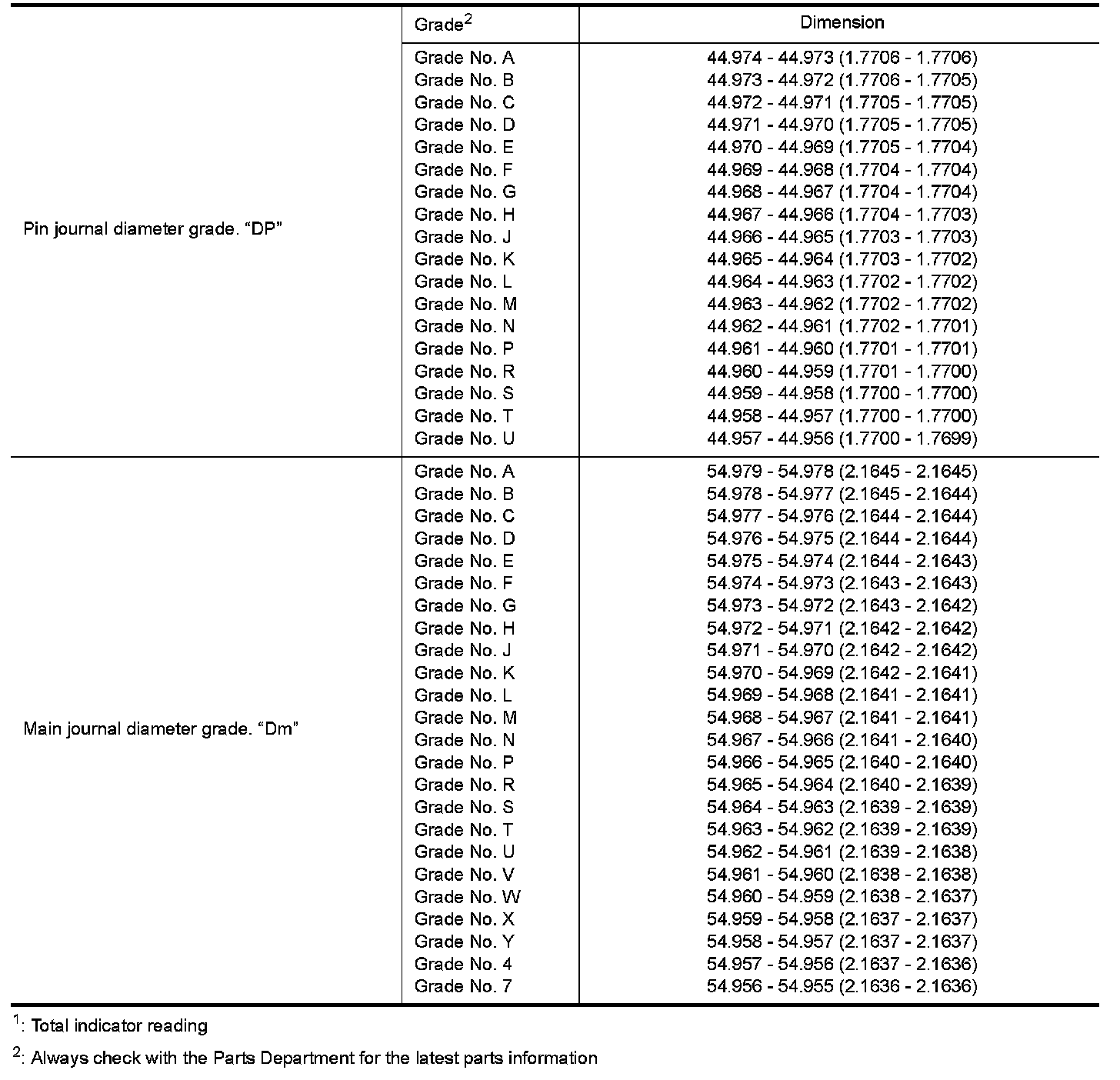

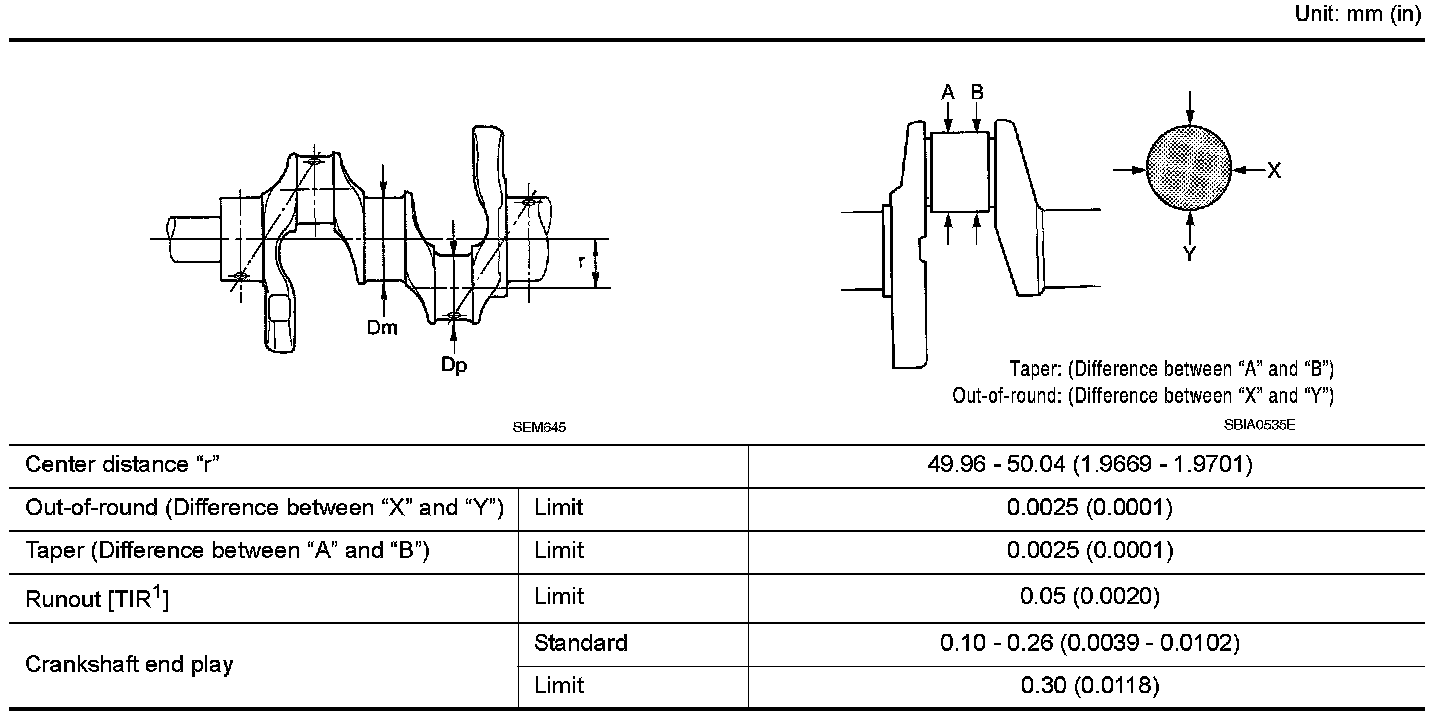

CRANKSHAFT

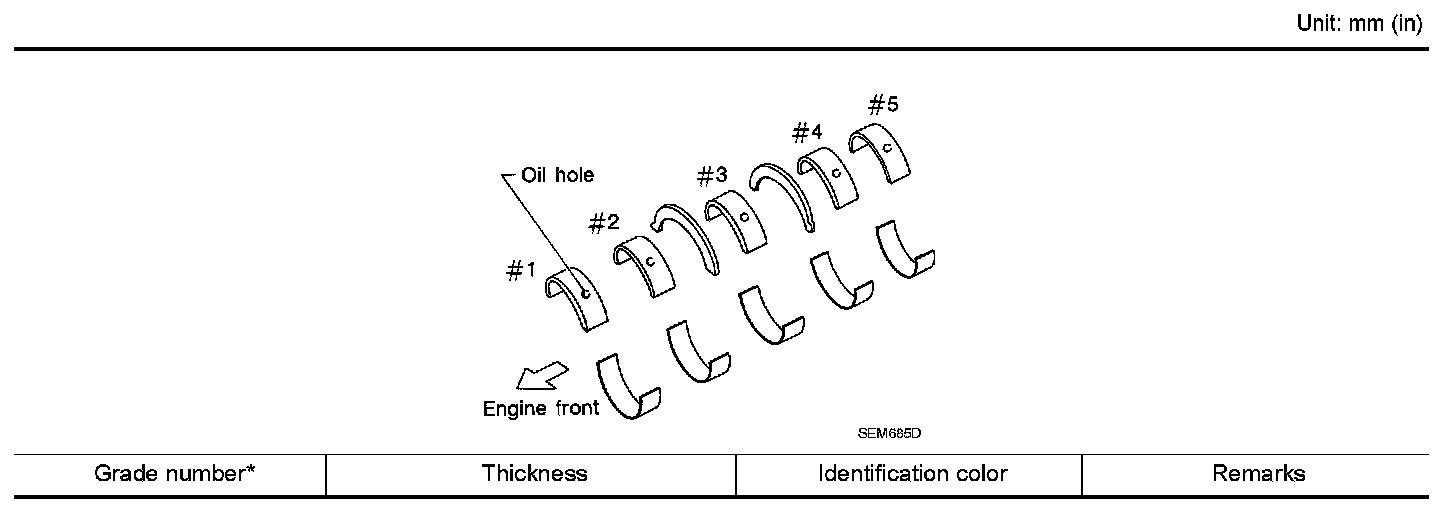

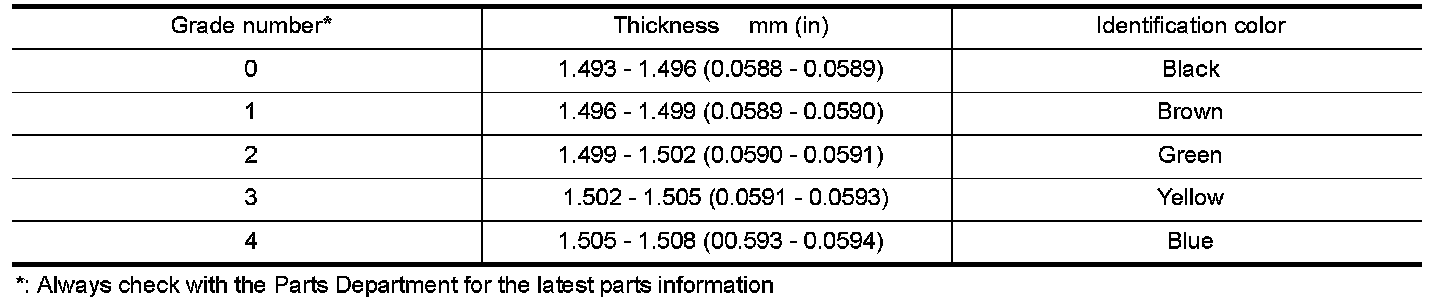

MAIN BEARING

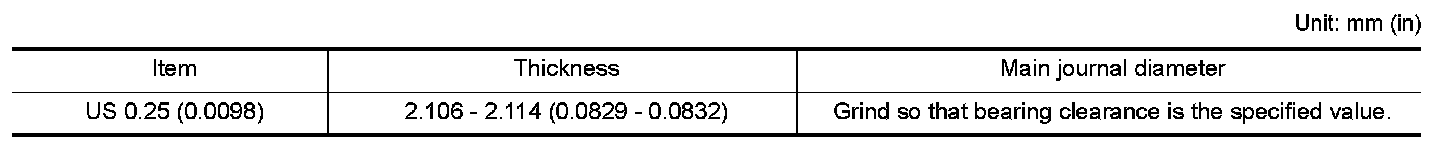

Undersize

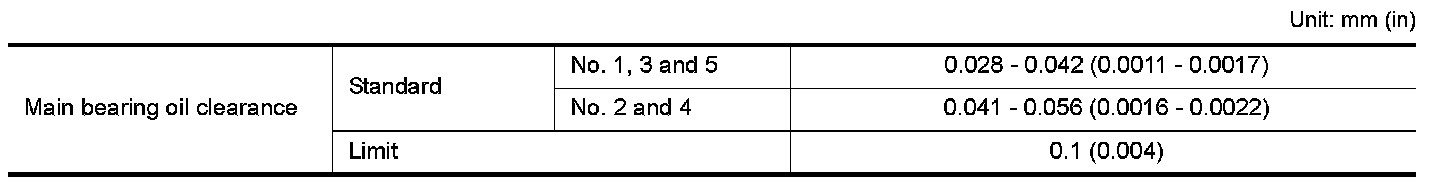

Bearing Oil Clearance
CONNECTING ROD BEARING

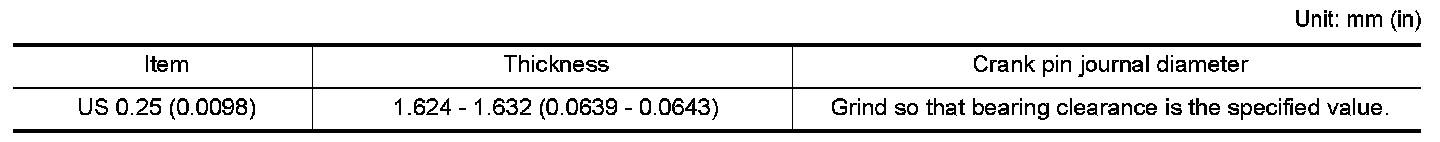

Undersize

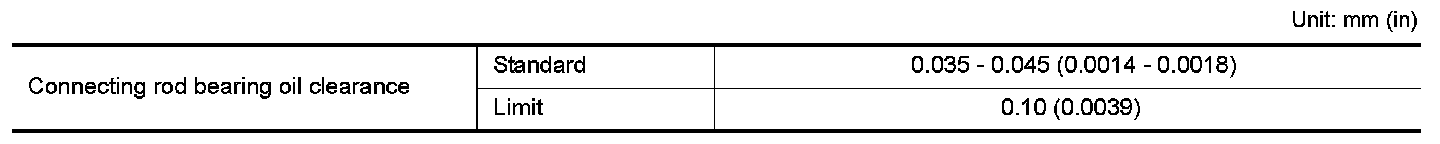

Bearing Oil Clearance
