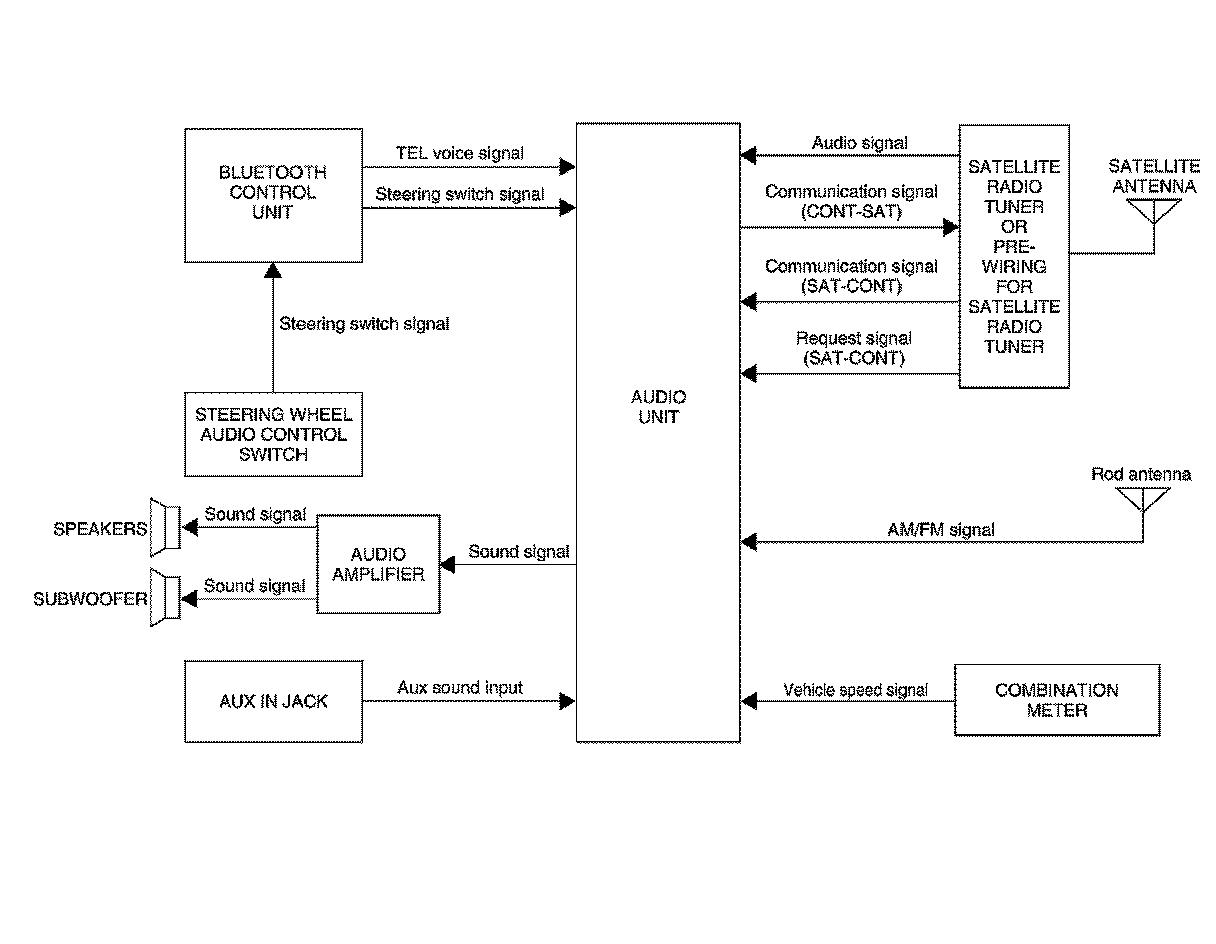

System Diagram Premium Audio (Crew Cab)
System Diagram Premium Audio (Crew Cab)
AUDIO SYSTEM
System Diagram
