Instrument Panel, Gauges and Warning Indicators
>>
Compass
>>
Compass Without Homelink Universal Transceiver
Compass Without Homelink Universal Transceiver
COMPASS

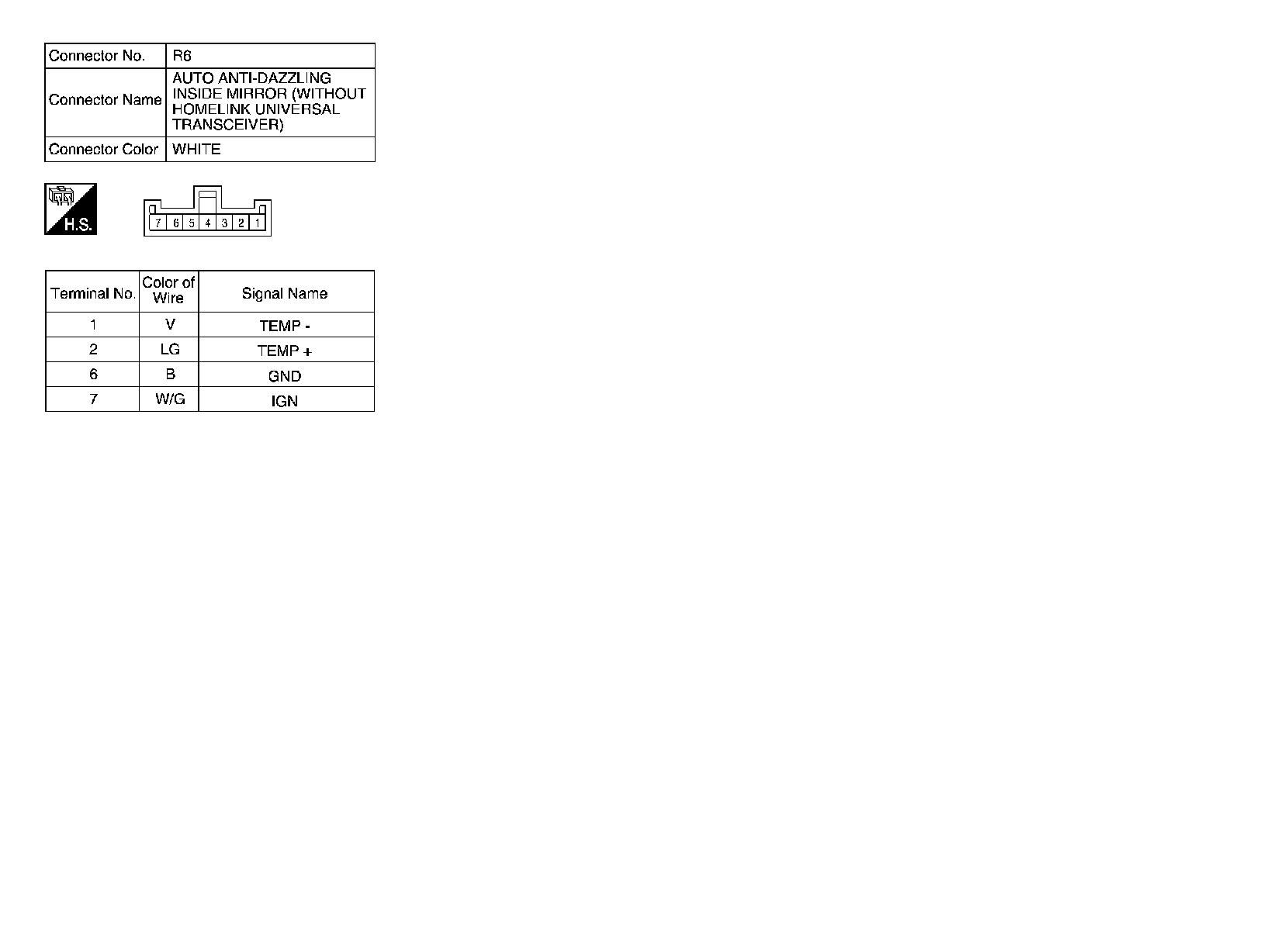

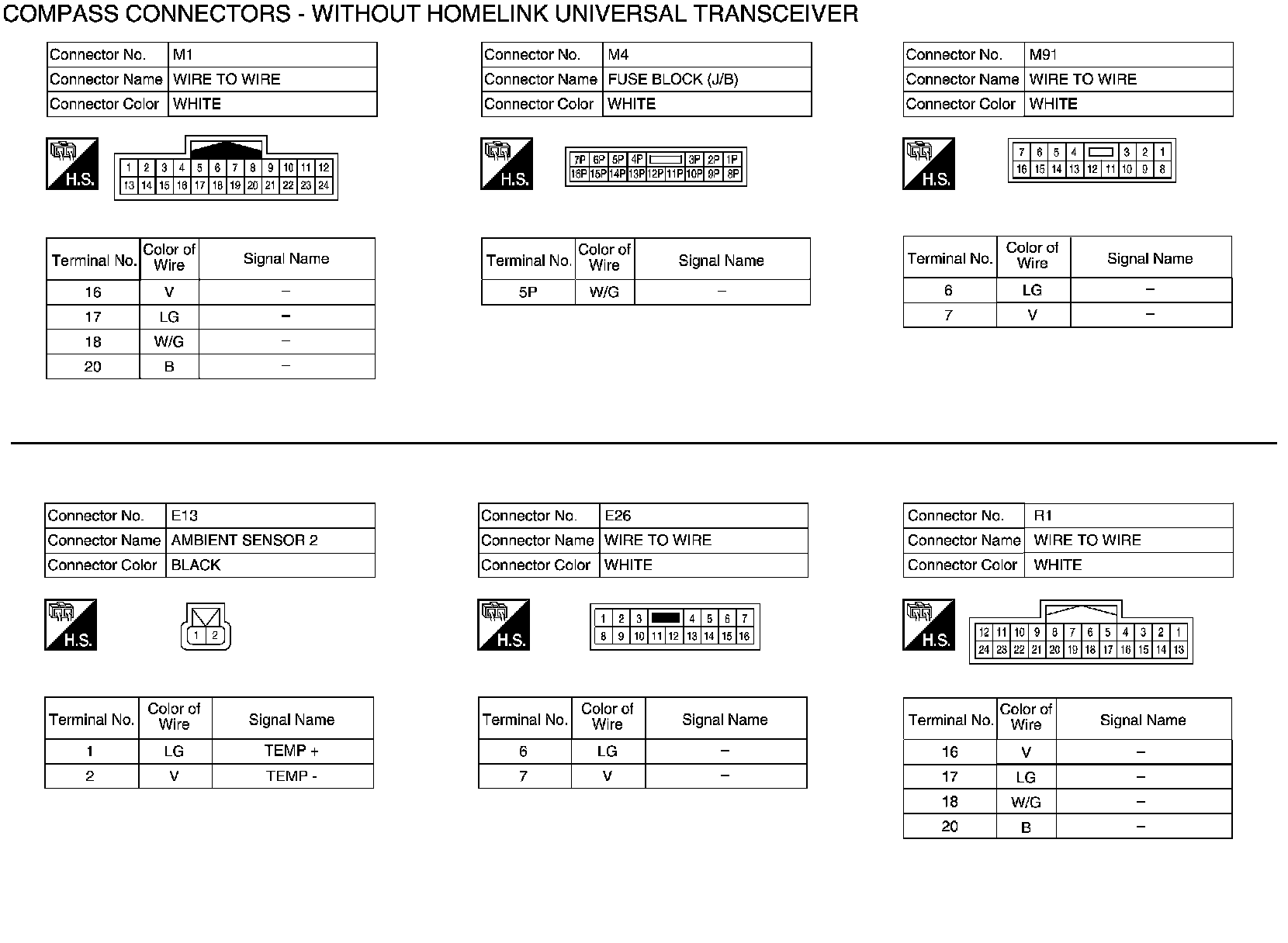

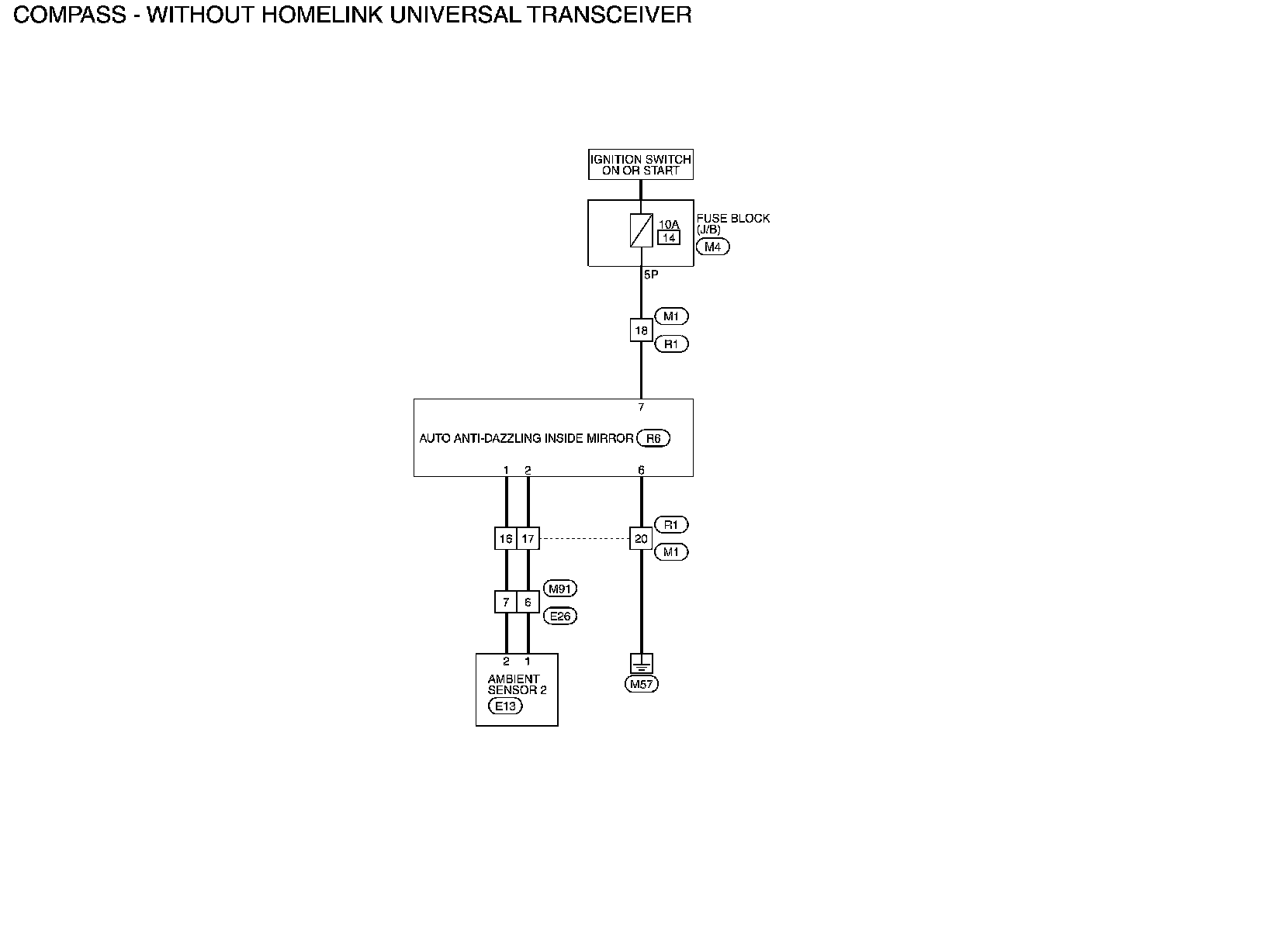

Wiring Diagram - Without Homelink Universal Transceiver
