Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2011
>>
Frontier 4WD V6-4.0L (VQ40DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Audio System
Audio System
BASE AUDIO SYSTEM

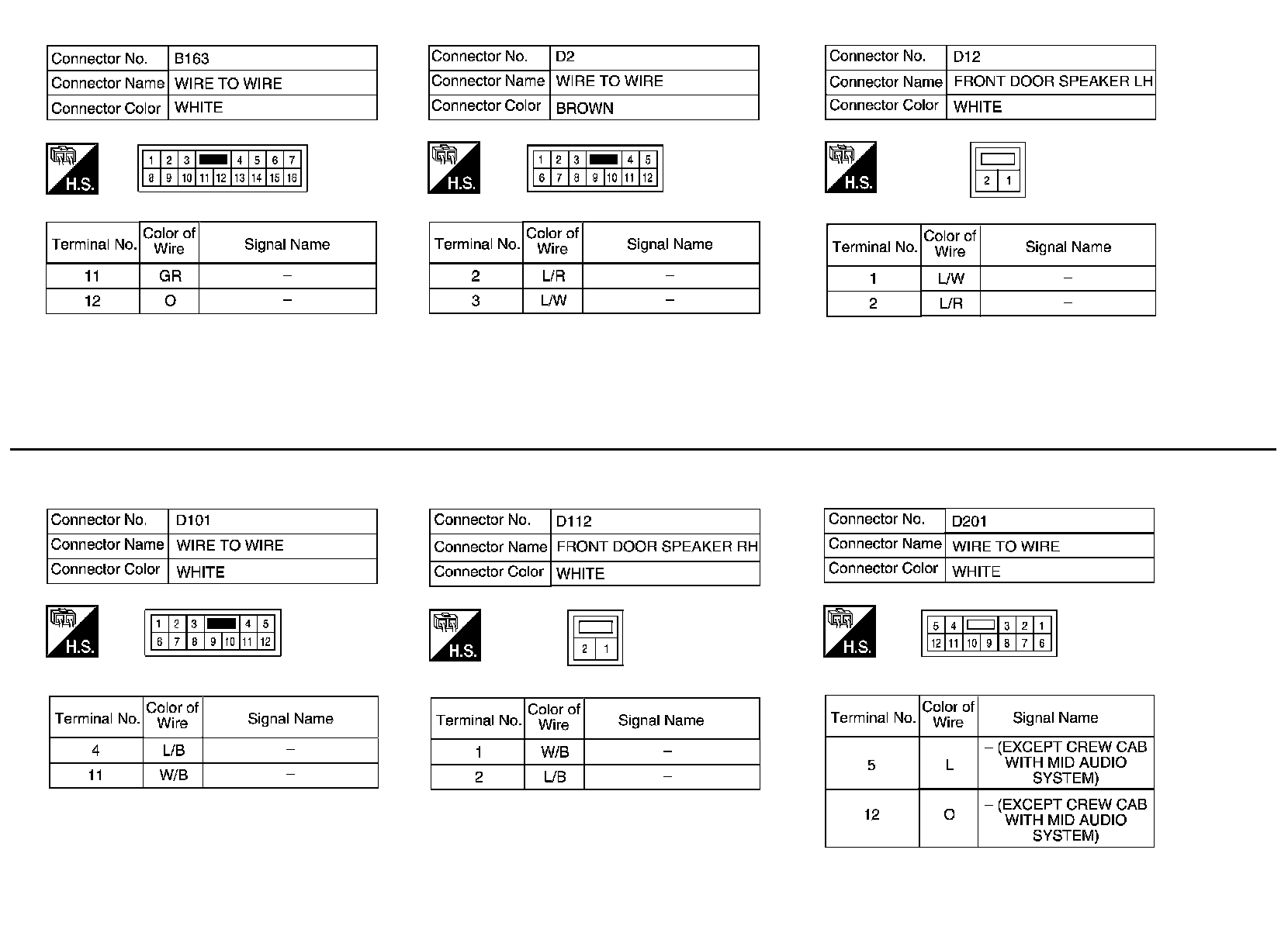

Wiring Diagram
