Air Breather Hose





AIR BREATHER HOSE


Removal and Installation

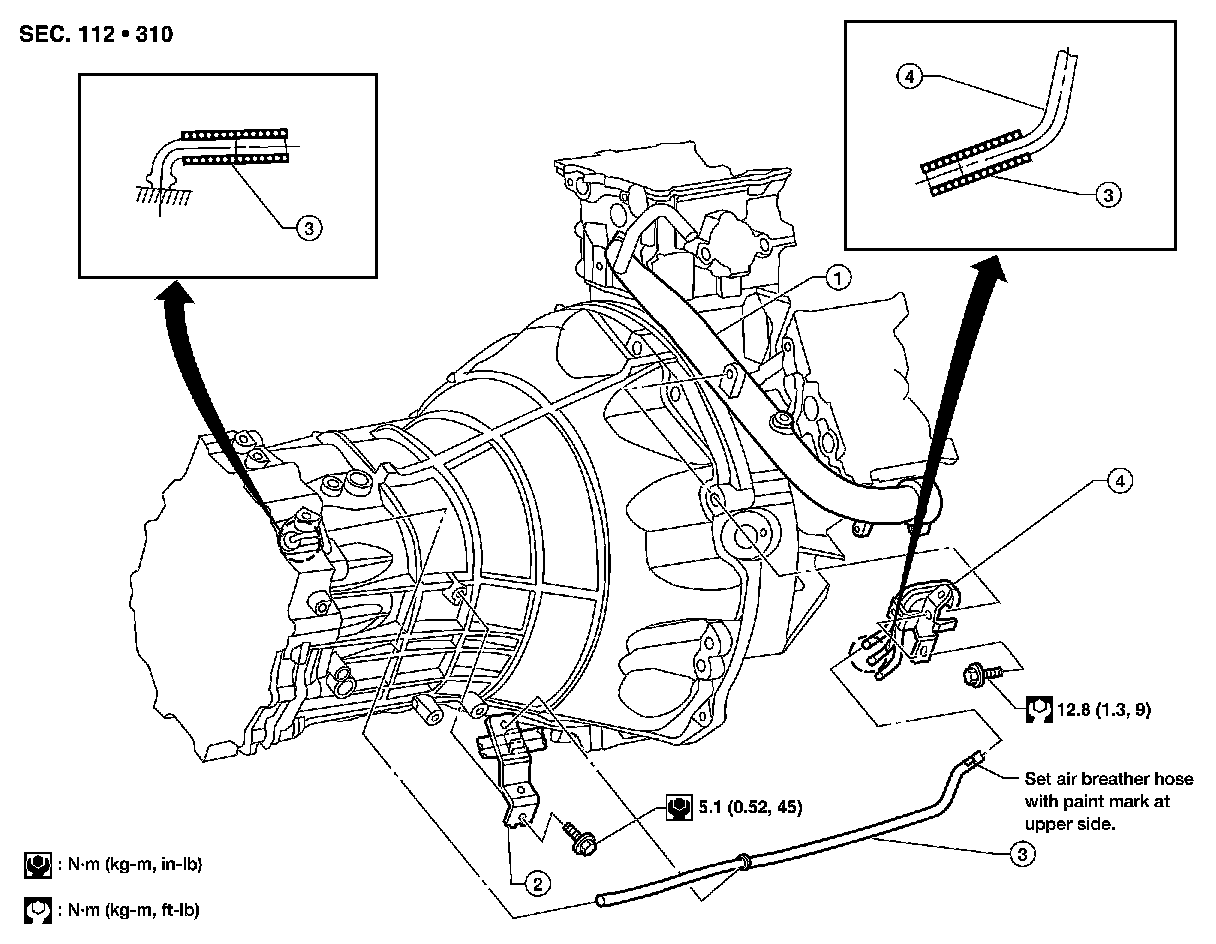

Refer to the figure below for air breather hose removal and installation information.











CAUTION:
- Make sure there are no pinched or blocked areas on the air breather hose after installation.
- When inserting the air breather hose, be sure to insert it fully until its end reaches the end of the tube radius.
- Install the air breather hose with the paint mark side up.
